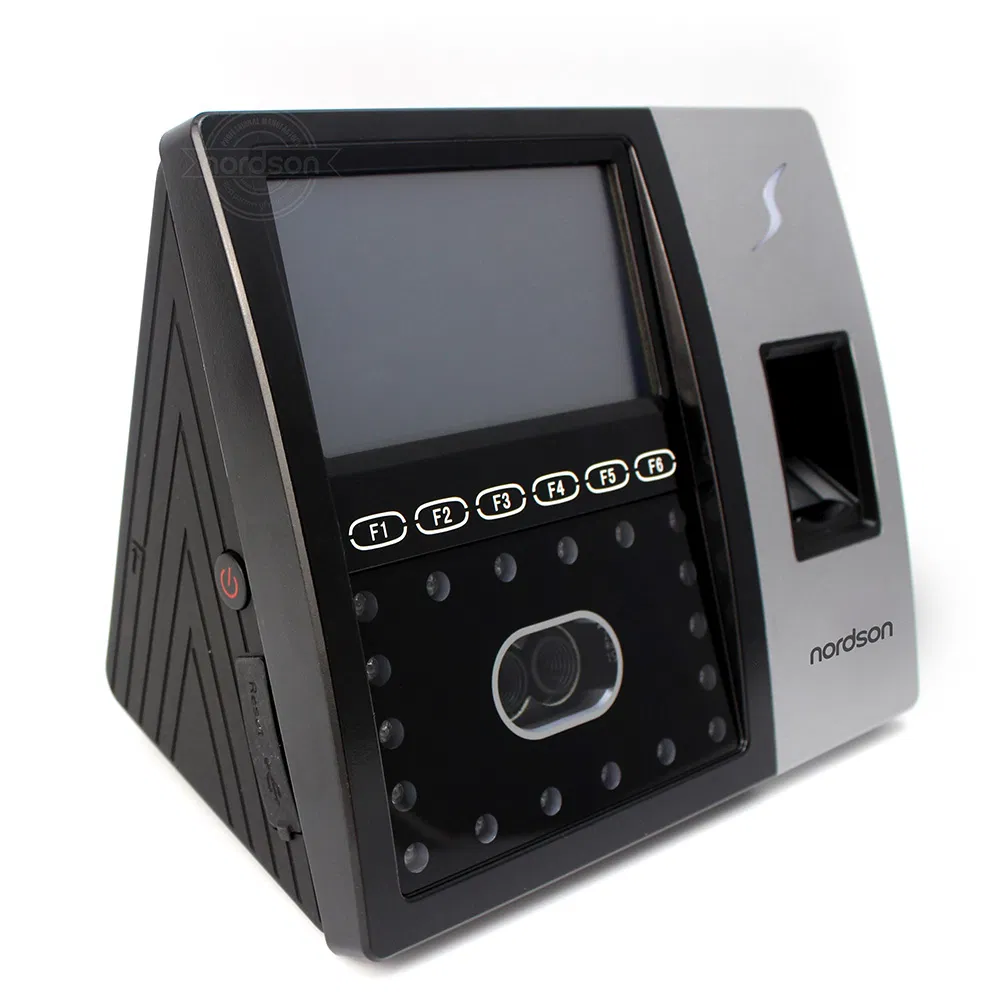

Security Safe Camera Rifd TCP/IP Network Weigand Face Recognition Time Attendance and Door Access System
Product Description
Model NO.
IFACE702 time attendance and door access system
Color
Black
Screen
4.3" TFT Touch Screen
Communication
TCP/IP, RS232/485, USB-Host
Fingerprint Capacity
400 (Standard) / 3000 (Max)
Face Capacity
700 (1:N)
Logs Capacity
100,000
Camera
High Resolution Infrared Camera
Finger Sensor
Optical Sensor
HS Code
9106100000
Security Safe Camera RFID TCP/IP Network Wiegand Face Recognition & Access System
Main Selling Points
1
Wide touch screen, easy to operate.
2
TCP/IP and USB interface for seamless data transfer.
3
Optional back-up battery (4-5 hours operation during power cuts).
4
Integrated access control port for door security.
5
Free time attendance software for tracking employee hours.
6
Available SDK for custom payroll software development.
| CPU | CPU 800 MHz |
| Memory | 256M Flash, 64M SDRAM |
| Hardware Platform | ZEM800 Multi-Medium Development Platform |
| Fingerprint Sensor | Optical |
| Camera | High Resolution Infrared Camera |
| Display | 4.3'' TFT touch screen |
| Face capacity | 700 (1:N) |
| Fingerprint capacity | 3000 |
| Logs capacity | 100,000 |
| Communication | TCP/IP, RS232/485 |
| USB-HOST | Two USB-Host |
| Standard Functions | ID Card, Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST |
| Access Control Interface | 3rd party electric lock, door sensor, exit button |
| Wiegand Signal | Output |
| Power Supply | 12V 3A |
| Verification Speed | ≤2 sec |
| Operating Temp/Humidity | 0°C- 45 °C / 20%-80% |
• 1 × Power adapter
• 1 × Software CD (Management software & SDK)
• 1 × USB cable / Net cable
• 1 × Mounting Bracket
• Other mounting accessories included.
• 1 × Software CD (Management software & SDK)
• 1 × USB cable / Net cable
• 1 × Mounting Bracket
• Other mounting accessories included.
How fast is the identity verification?
The device features a high-speed verification process with a speed of ≤2 seconds.
What is the maximum capacity for faces and fingerprints?
The system supports up to 700 face templates (1:N) and up to 3000 fingerprint templates.
Can the device work during a power failure?
Yes, with the optional 2000mAh backup battery, the device can continue to operate for 4-5 hours after a power cut.
What types of communication does this system support?
It supports multiple communication methods including TCP/IP, RS232/485, and has dual USB-Host ports. Wi-Fi and GPRS are also optional.
Does it include software for tracking employee attendance?
Yes, the package includes free time attendance management software and an SDK for third-party payroll software development.
Can I connect this to an electric door lock?
Absolutely. The system includes dedicated access control interfaces for 3rd party electric locks, door sensors, and exit buttons.
