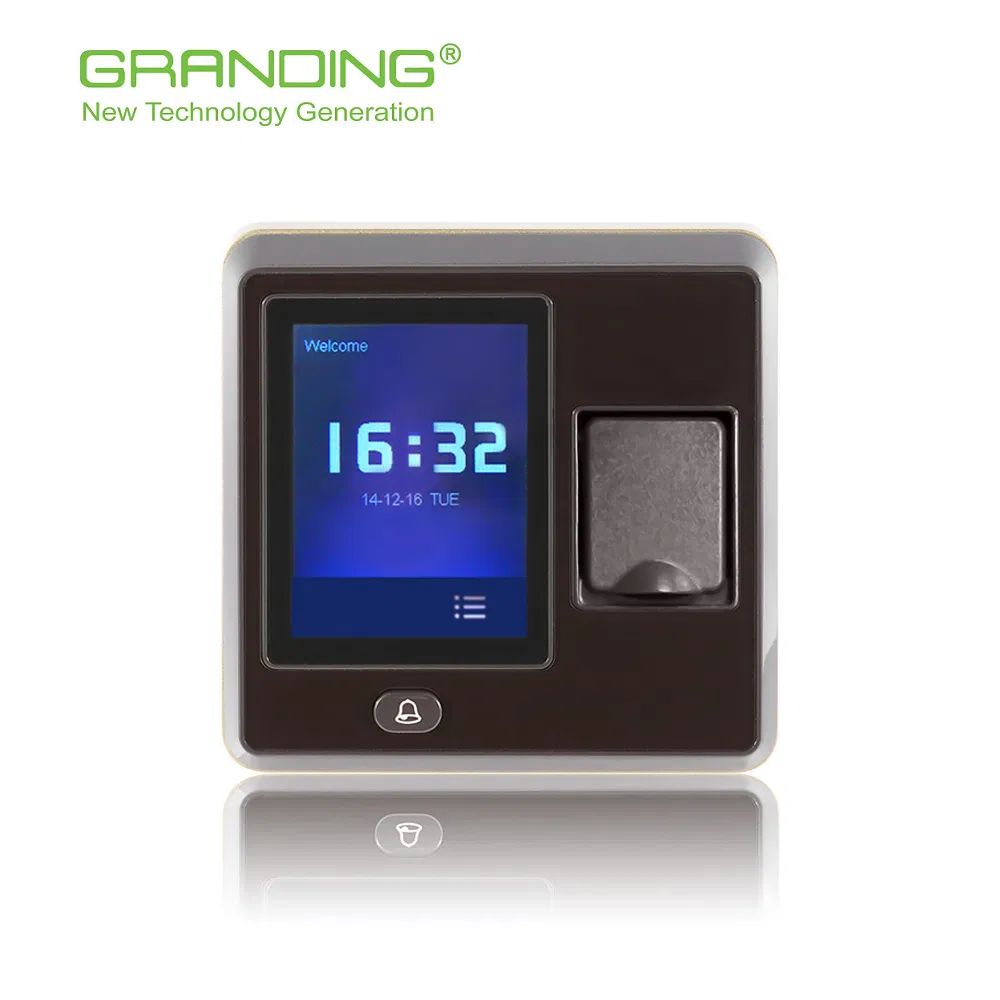

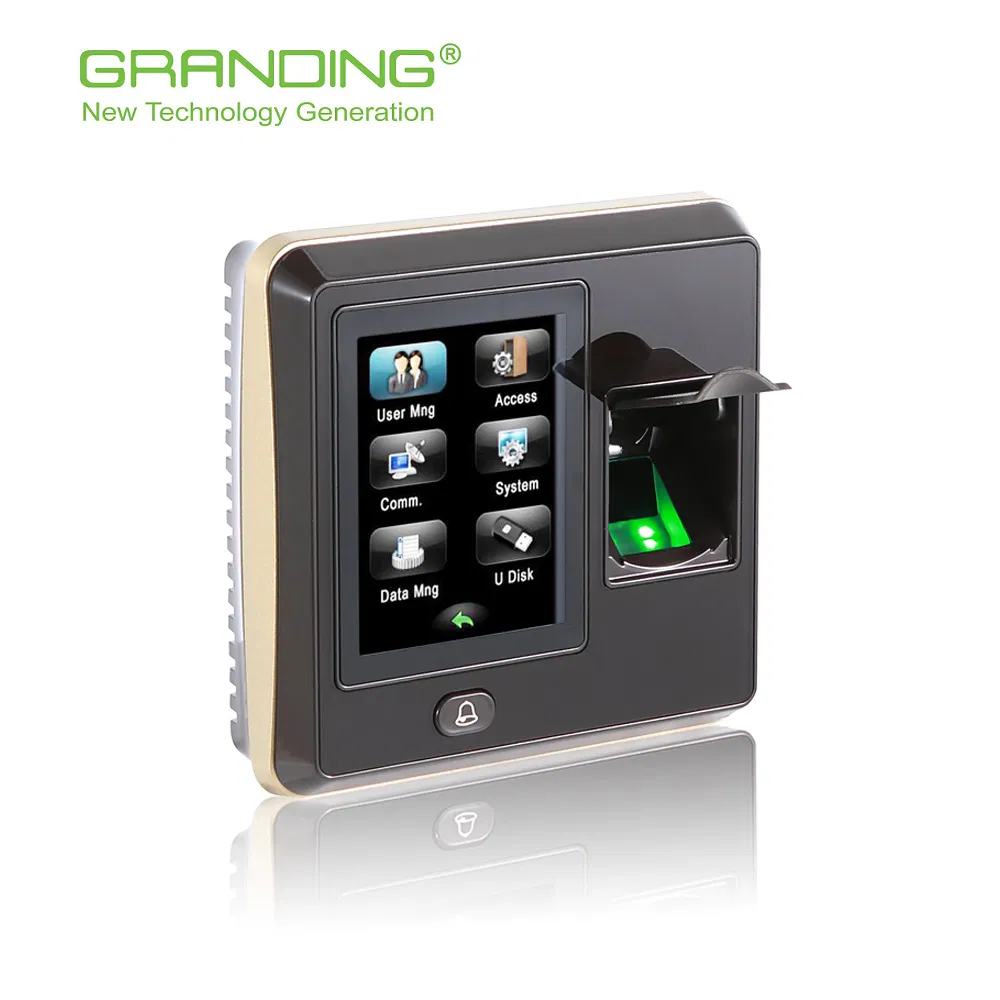

Standalone Biometric Fingerprint Access Control System (F04)
Product Description
Basic Info
Model NO.
F04
Color
Black
Screen
Color Screen
Communication
RS485, USB, TCP/IP
Fingerprint Capacity
1500
Card Capacity
5,000 (Optional)
Power Supply
110/220 VAC-12VDC/1.5A
Identification
Frr ≤ 0.01% Far ≤ 0.0001%
Verification Speed
≤ 0.5s
Real Weight
1.2kg
Standard Function
Standalone, Built-in Relay, RFID
Specification
105*105*34mm
Product Overview
Standalone Biometric Fingerprint Access Control and Time Attendance System (F04)
The F04 is an IP-based fingerprint terminal designed to work in both network and standalone modes. With a 2.8-inch TFT touch LCD screen, it offers a compact and efficient security solution. The Wiegand interface enables Master & Slave solutions, allowing verification at both entrance and exit. Integrated anti-passback and auxiliary input interfaces for smoke detectors or emergency switches maximize facility security.
Key Features
- 2.8 inch TFT touch LCD screen
- Voice prompt for acceptance and rejection
- TCP/IP, RS485, and USB Host communication
- Up to 15 multi-verification types
- Up to 24 user-defined schedule bells
- Compact and small size design
- USB flash drive for offline data management
- Tamper-proof switch and multiple alarm outputs
Technical Specifications
| Model | F04 |
| LCD Display | 2.8-inch touch Screen |
| Fingerprint Sensor | Optical Sensor (500DPI) |
| Capacity | Fingerprint: 1,500 | Card: 5,000 (optional) | Logs: 80,000 |
| Access Interface | Electric lock, Door sensor, Alarm, Exit button, Door bell |
| Wiegand Signal | Wiegand input & output |
| Power Supply | DC12V/3A |
| Environment | 0-45ºC (32-113ºF) | Humidity: 20%-80% |
| Dimension | 105*105*34mm |
| Functions | 50 timezones, 10 combination, 99 groups, Holiday control, 9 PIN User ID |

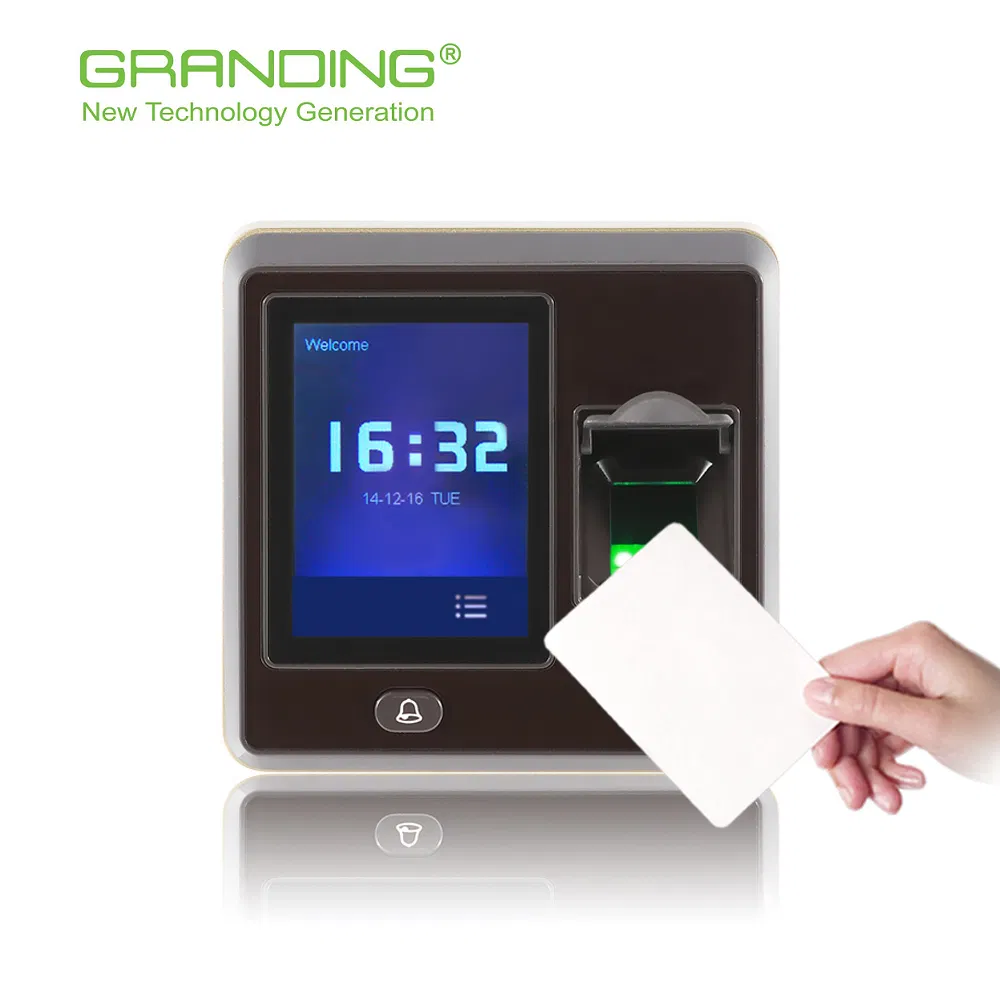

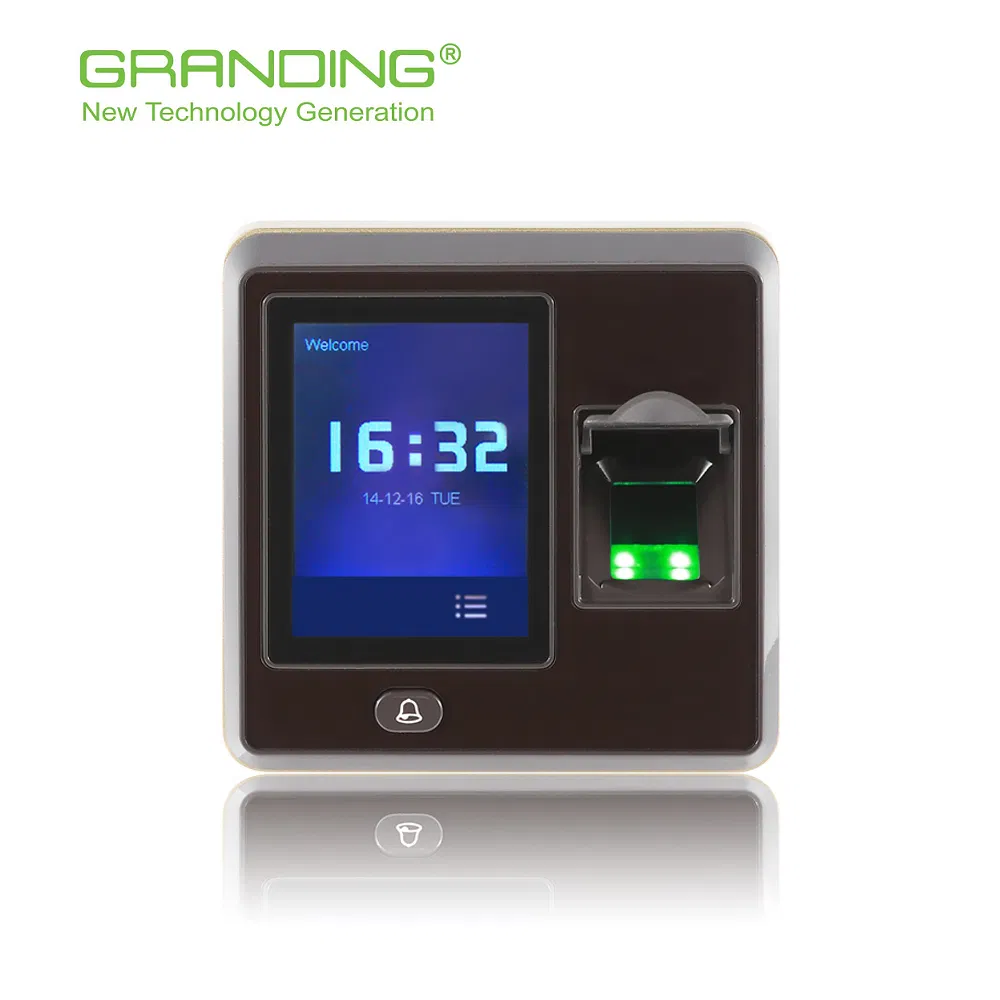

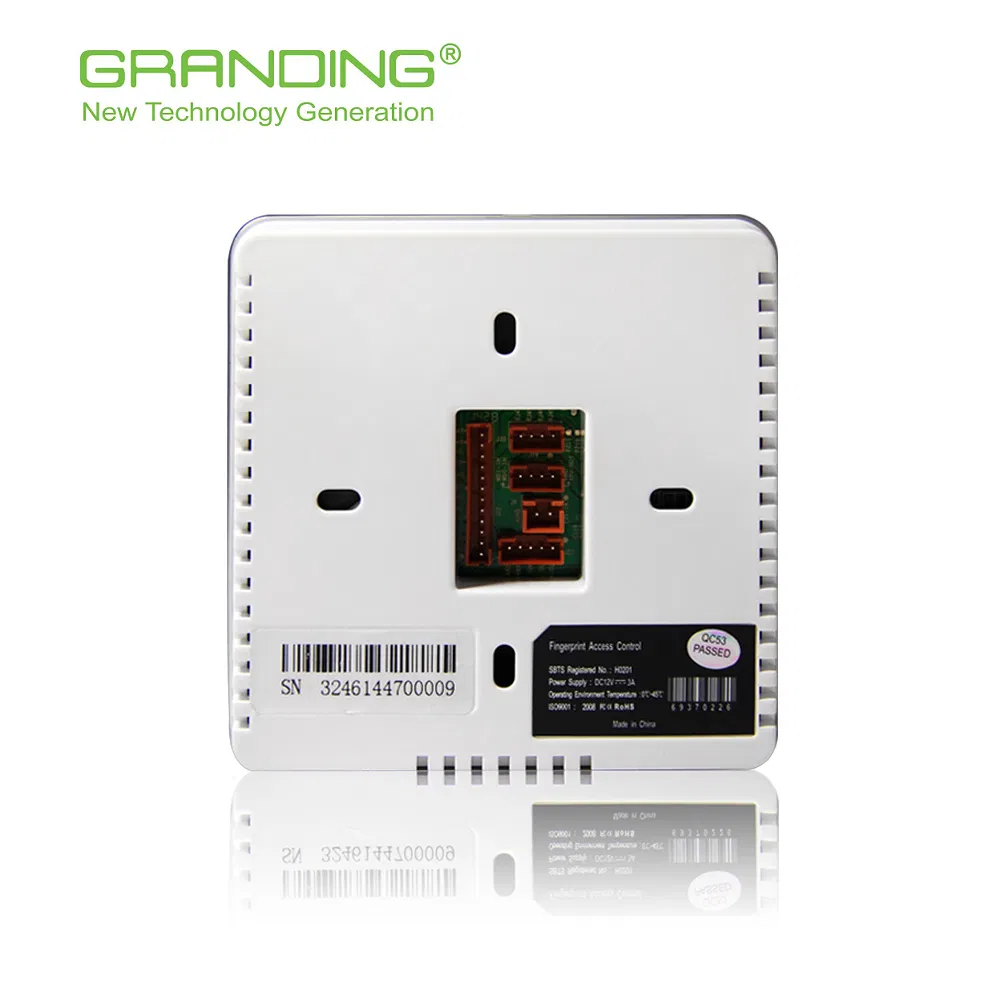

Product Gallery

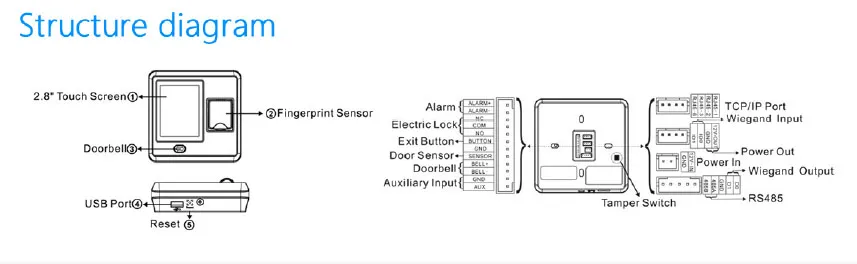

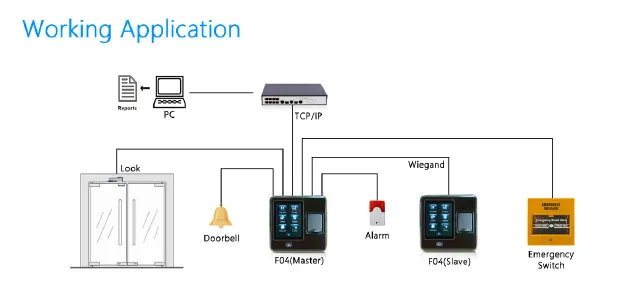

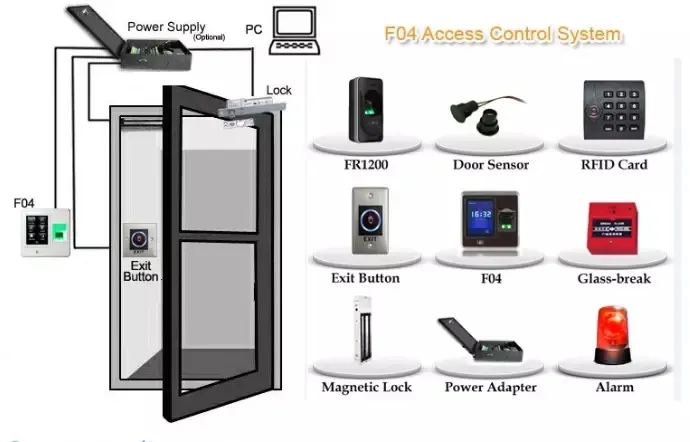

Applications & Architecture
Frequently Asked Questions
1. Is there a Minimum Order Quantity (MOQ)?
No, we have no MOQ limit. You can order as little as 1 unit for any of our products.
2. What is the warranty policy for this device?
We offer a 2-year warranty on all products (excluding man-made damage). Technical support is available for any operational concerns.
3. Can the device display other languages?
Yes, multi-language support is available and can be customized based on your requirements.
4. What payment methods are accepted?
Payments can be made via T/T (Bank Transfer), Western Union, and PayPal.
5. How are the products shipped?
We typically ship via international couriers such as DHL, FedEx, or TNT. Air or sea freight can also be arranged upon request.
6. Does it support offline data management?
Yes, the system includes a USB host port allowing you to use a flash drive for offline data management and logs.
