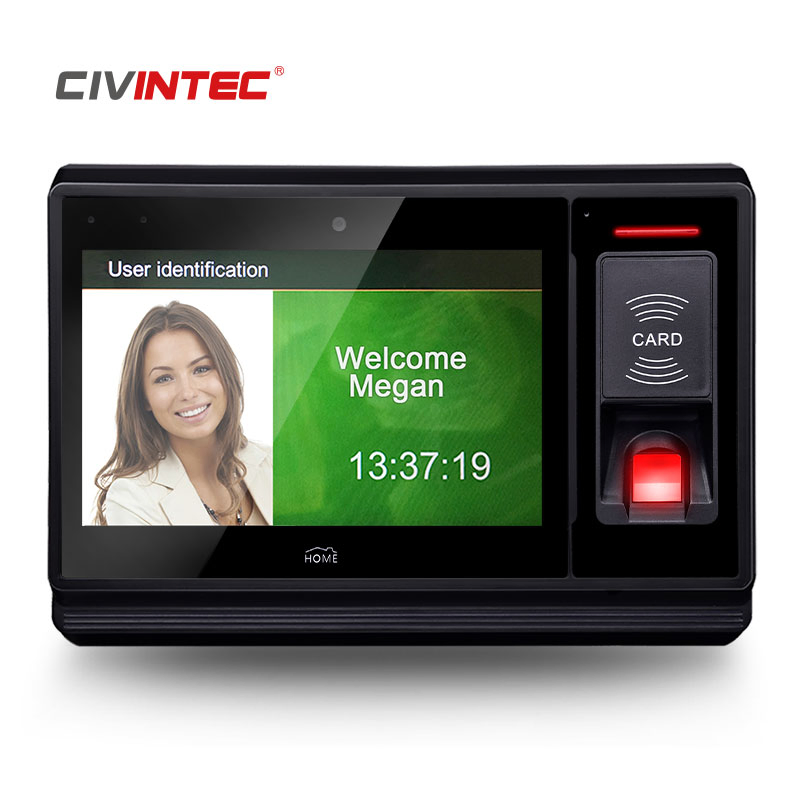

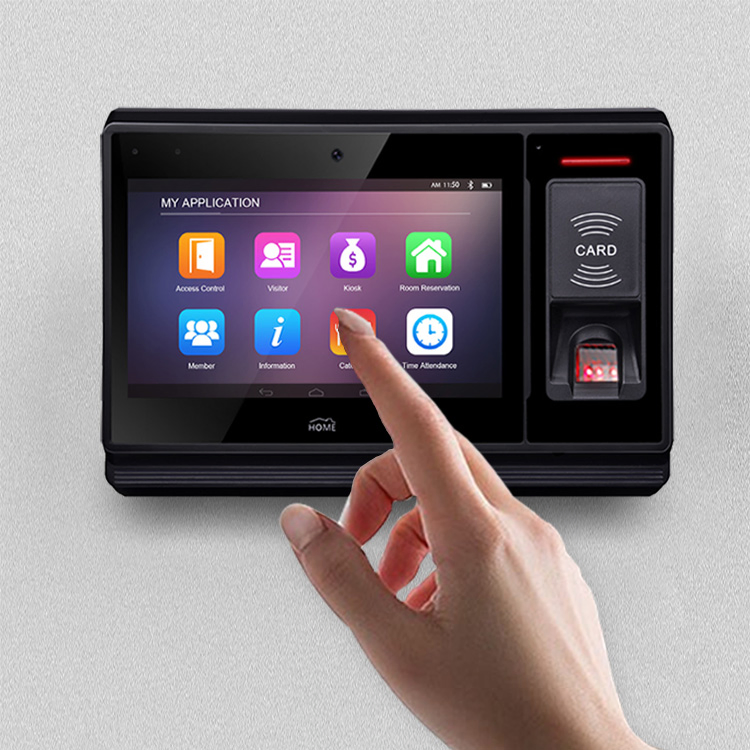

Linux Cloud Wiegand Biometric Time Attendance Machine RFID Door Access Control System with Camera
Product Description
Basic Specifications
Model NO.
CN8
Color
Black
Screen
Color Screen
Interfaces
RS485, RS232, USB, TCP/IP, WiFi, 4G
Fingerprint
25,000 Capacity
Product Type
Biometric Access Control Terminal

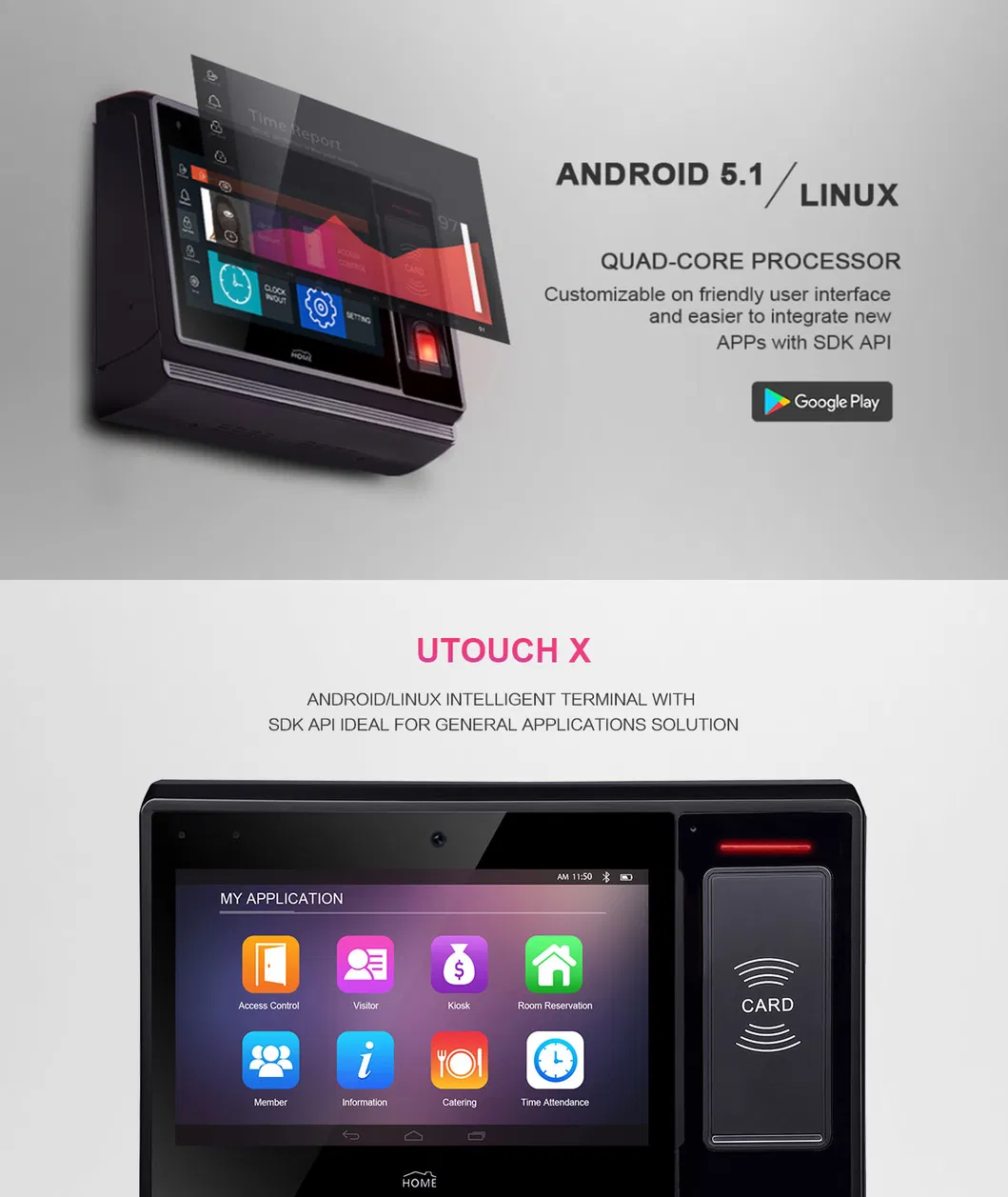

Dual OS
Android or Linux Embedded OS
Display
7" Large Touch Screen

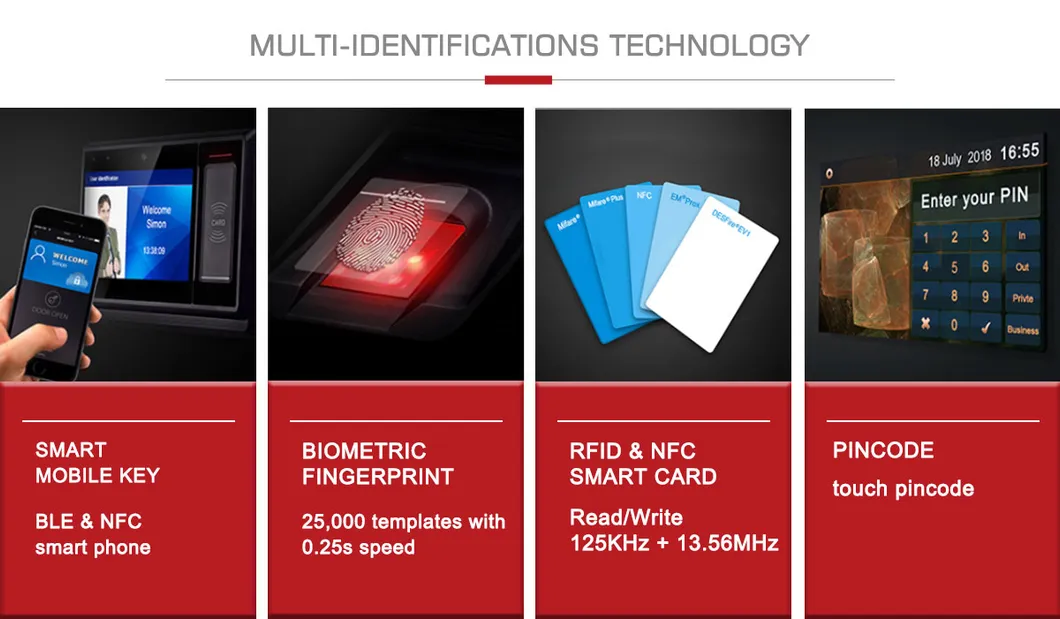

Identification
RFID Tag, Mobile ID, Password
RFID Card
13.56MHz & 125kHz
Mobile Credential
NFC, Bluetooth
Secure Module
ISO7816 SAM Modules
Power
PoE, 9-24VDC
Camera
5.0 Megapixel Camera
Specification
160mm x 230mm x 45mm
Product Overview
| Model | CN890 SERIES |
|---|---|
| Operation System | ANDROID & LINUX |
| Display | 7.0" capacitive touch screen |
| Smart Card Interface | |
| ISO-protocol | 125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC |
| Contact smart card | ISO7816 (T=0,T=1) 1 SAM module |
| Biometric Fingerprint Reader | |
| Fingerprint sensor | 500 dpi optical sensor |
| Template capacity | 1:1 (100,000); 1:N (25,000) |
| General Features | |
| Communication interfaces | 4G, WiFI, BT, TCP/IP, RS232, RS485/OSDP, Wiegand, USB2.0 (OTG) |

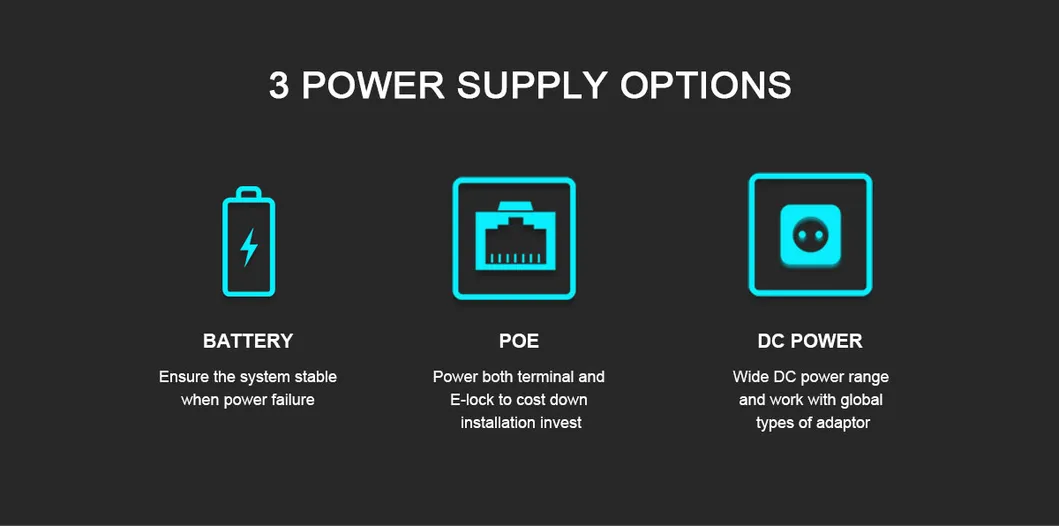

| Power supply | 9-24V DC, Power over Ethernet, Battery |
| Camera | Auto focus 5.0 megapixel digital camera |
| Certification | CE, FCC |
Frequently Asked Questions
What operating systems are supported by the CN8 terminal?
The terminal features a dual OS capability, supporting both Android and Linux Embedded operating systems for flexible software integration.

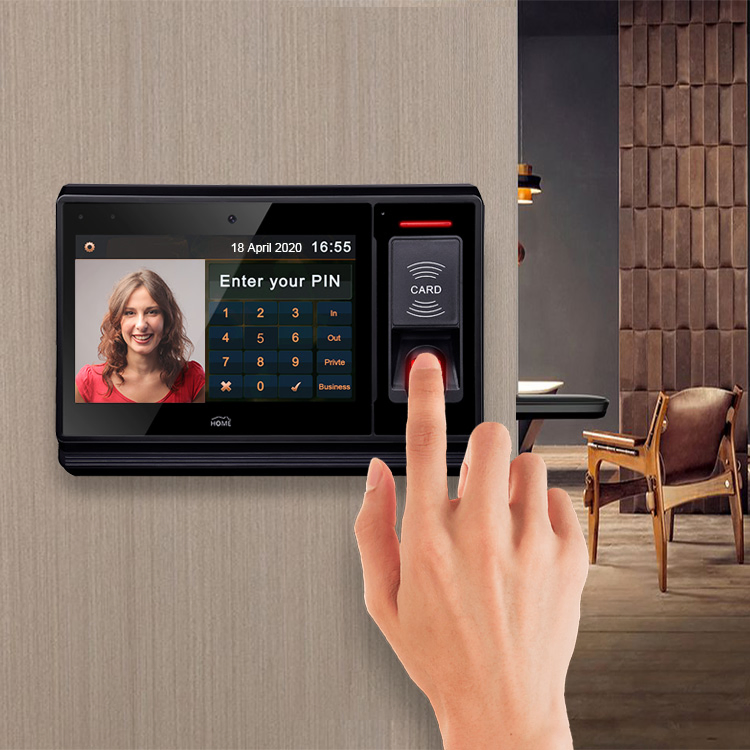

What is the maximum fingerprint capacity for identification?
The system supports a 1:N identification capacity of up to 25,000 fingerprints and a 1:1 template capacity of up to 100,000.
Does the device support Power over Ethernet (PoE)?
Yes, the device can be powered via PoE (Power over Ethernet) or a standard 9-24V DC power supply.

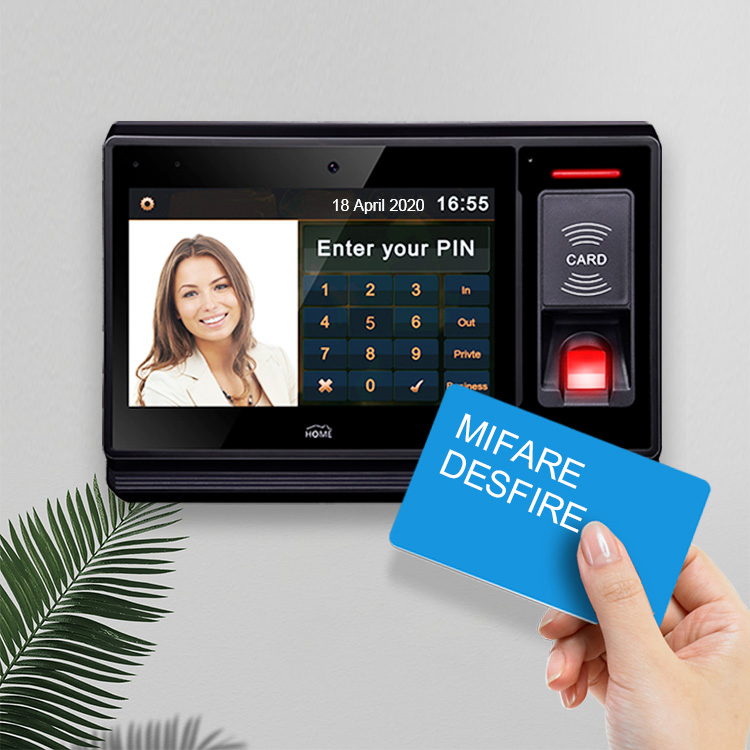

Which RFID frequencies are compatible with this reader?
The CN8 is a dual-frequency reader compatible with both 125KHz and 13.56MHz (ISO14443A/B, ISO15693, and NFC) protocols.

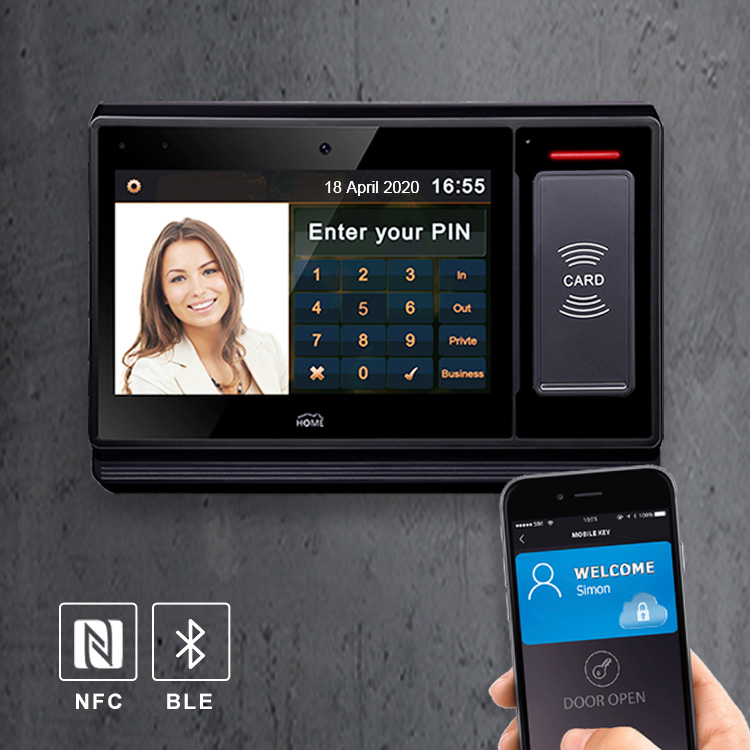

Can I use mobile credentials for access?
Absolutely. The terminal supports mobile credentials via NFC and Bluetooth (BT) for modern, smartphone-based access control.

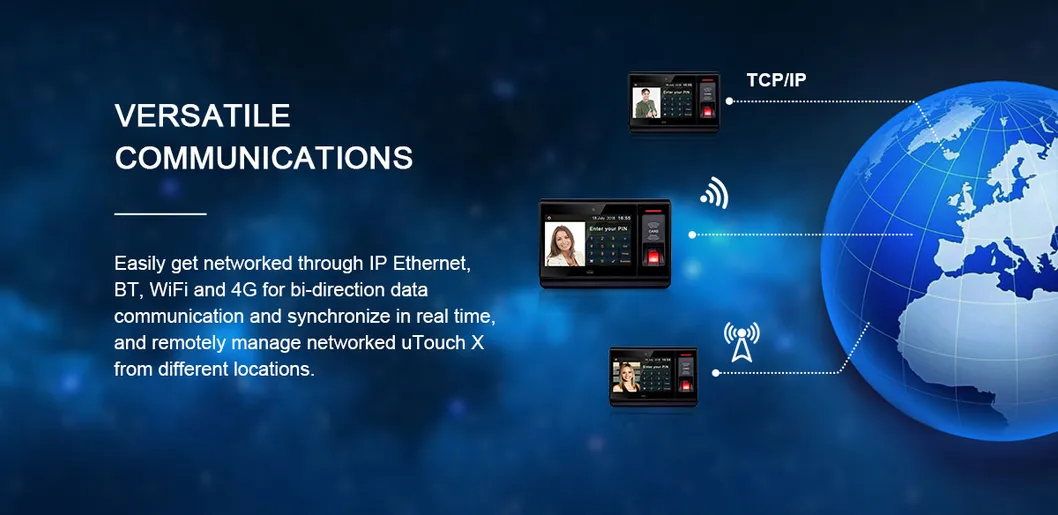

What communication interfaces are available for data transfer?
It offers comprehensive connectivity including 4G, WiFi, TCP/IP, RS232, RS485/OSDP, Wiegand, and USB 2.0 (OTG).
