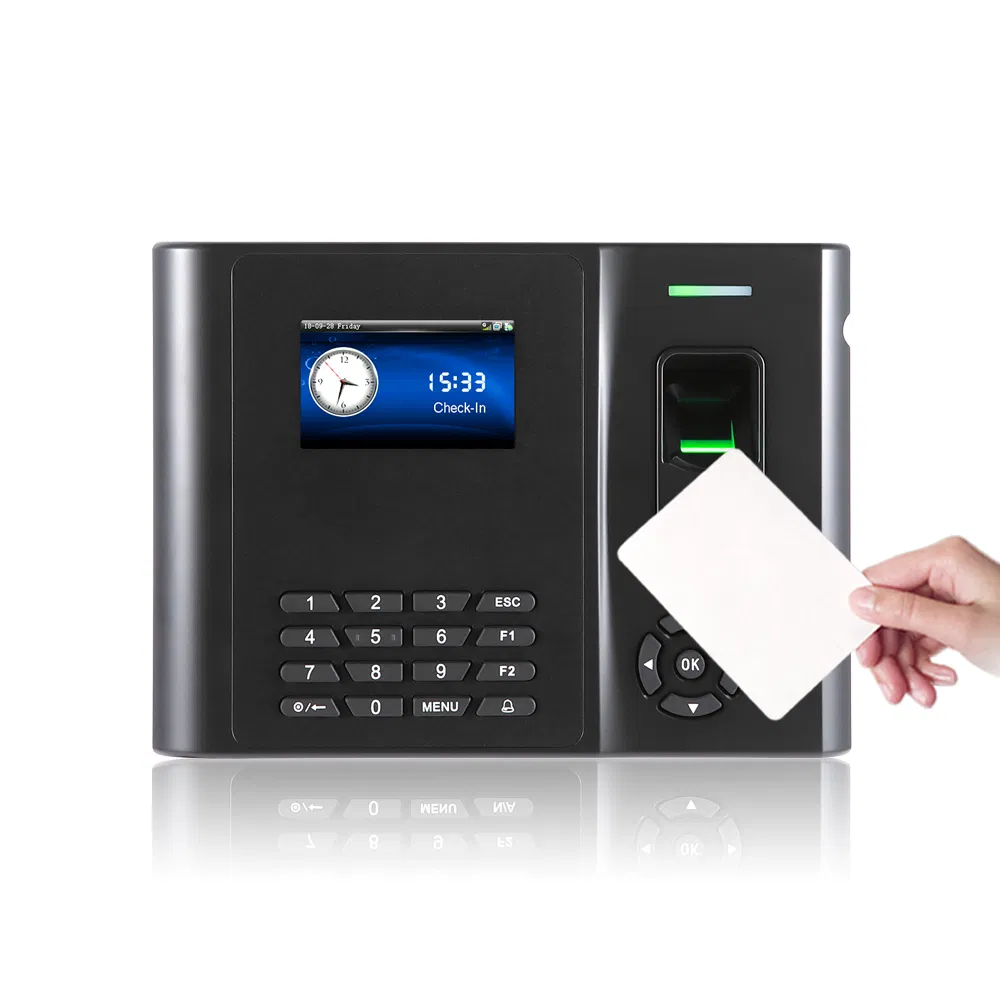

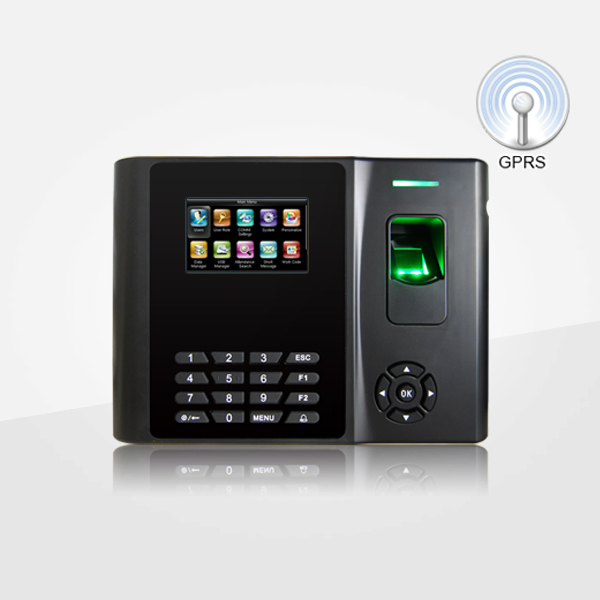

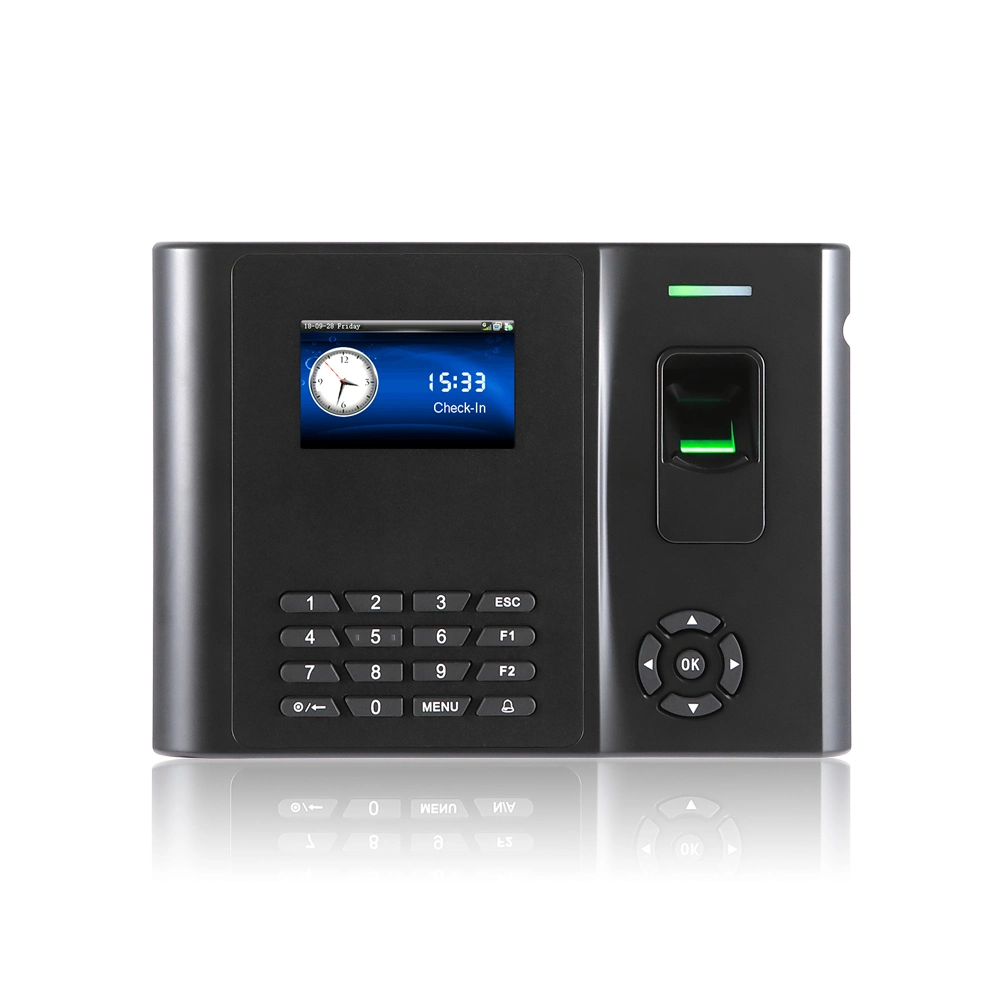

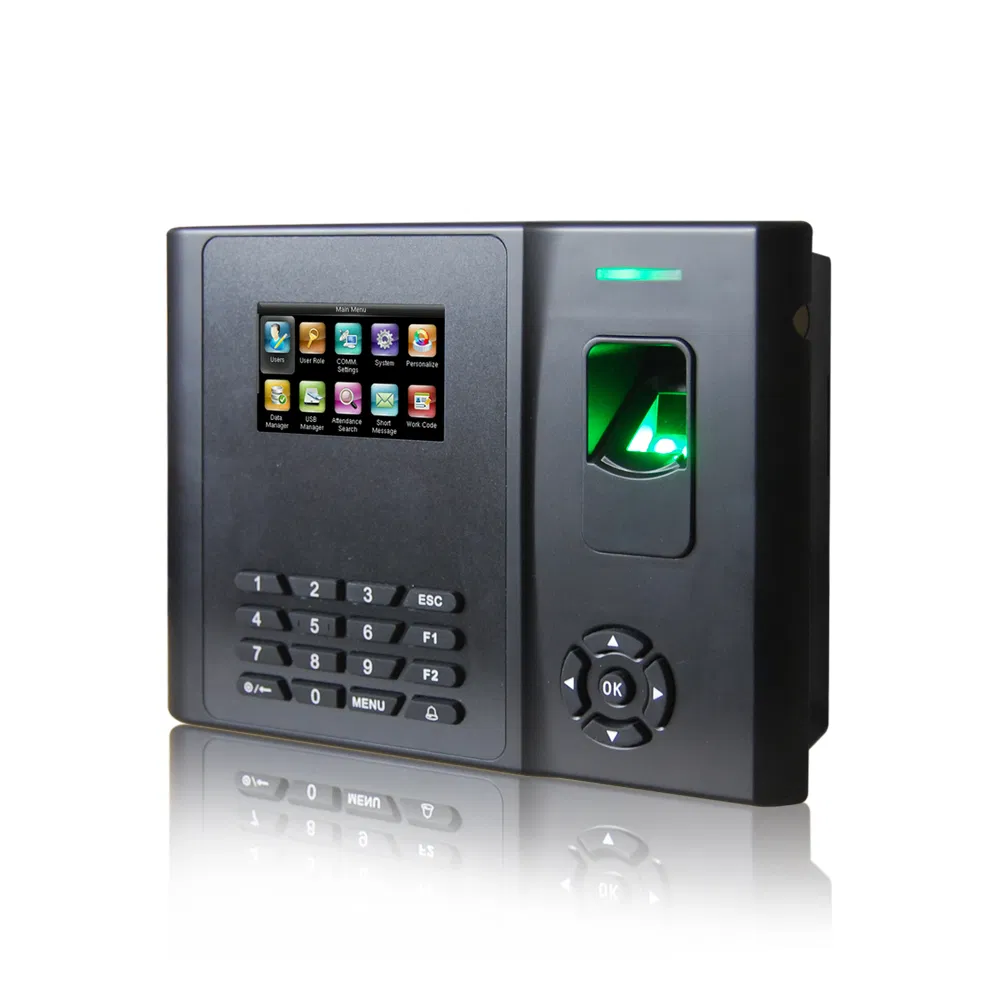

(Model GT210) Built-in Li Battery Biometric Fingerprint Time Attendance and Door Access Control System with Wireless GPRS or WiFi Function
Product Description
Basic Information
Model NO.
GT210
Color
Black
Screen
Color Screen
Interface
RS485, RS232, USB, TCP/IP
Capacity
3,000 Fingerprints
Li Battery
Built-in Backup Battery
Wireless
WiFi, GPRS Supported
Card Support
125kHz ID / 13.56MHz Mifare
LCD Display
3 Inch TFT Screen
Power
110/220VAC-12V/1.5A
Wiegand
In & Out
Origin
Mainland China
Product Description
Model GT210: Biometric Fingerprint Time Attendance and Access Control System
✦ Built-in Li battery for power failure protection.
✦ Supports 125KHZ ID Card or 13.56MHZ Mifare card reader.

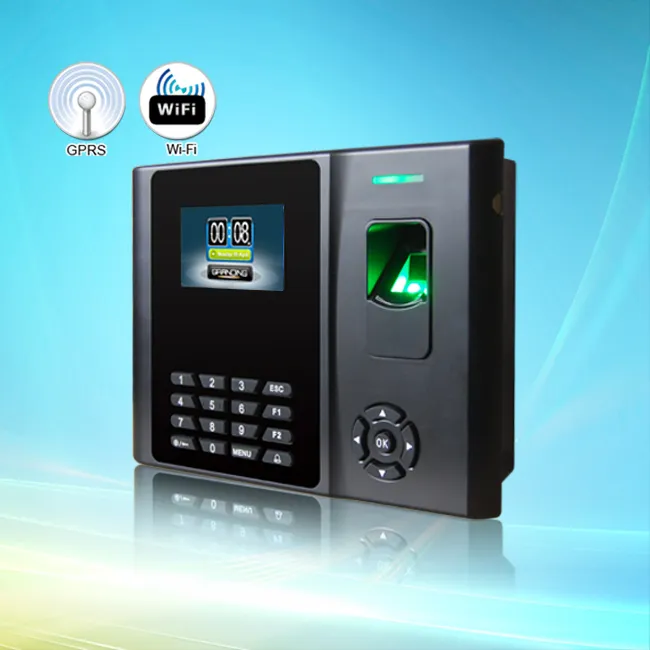

✦ Wireless Wifi or GPRS communication functions.
✦ Web-based Webserver and ADMS function.
✦ High-speed operating with new algorithm system.
The GT210 is an intelligent fingerprint access control device of the new generation. It supports both network and standalone modes. GPRS/WIFI makes communication with PC easier, while the USB flash drive allows for offline data management. The built-in battery provides approximately 4-5 hours of operation during power failures.
Key Features
✔ Easy to integrate into various systems
✔ Saves data during power outage
✔ RS232/485, TCP/IP, USB client/host
✔ Standalone or network environment
✔ New high-speed algorithm
✔ 4-5 hours backup battery life
Technical Specifications
| Display/Speaker | LCD: 3'' TFT screen; Voice Prompt | Language | Multi Language (English, French, Spanish, Arabic, etc.) |
| Fingerprint Capacity | 3,000 | Log Capacity | 100,000 |
| Verification Speed | ≤0.5s (1:1) | Identification Speed | ≤1s (1:N) |
| Communication | TCP/IP, USB Host/Client, RS232/485, Wiegand | Environment | 0ºC ~ 45ºC; Humidity 20% ~ 80% |
| Power Supply | 12V/1.5A; Built-in 7.4V 2000mAh Li-battery | Alarms | Dismantlement, break-in, duress alarm |
| Standard Functions | Workcode, Webserver, DLST, T9 input, SMS | Customizable | WiFi, ADMS, GPRS, ID/Mifare Reader |

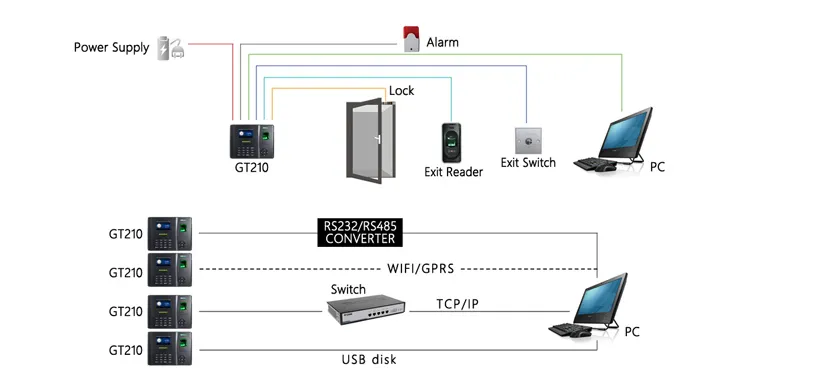

Connection Diagram

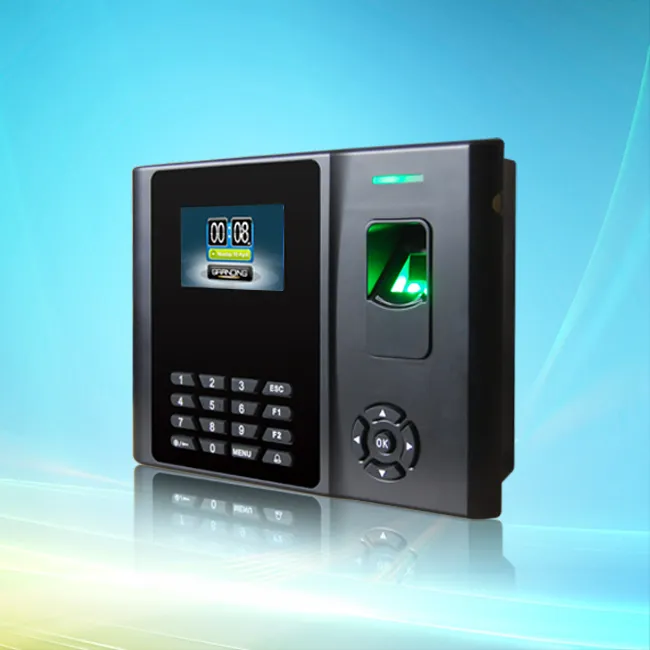

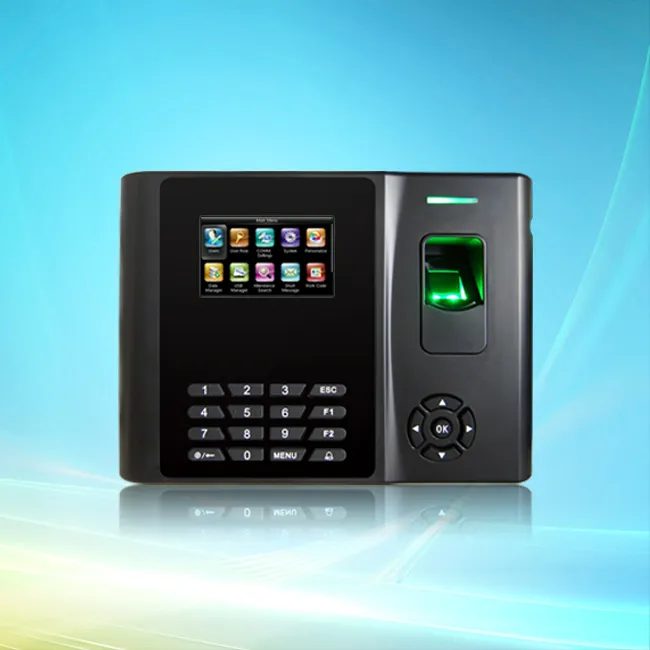

Product Gallery
Frequently Asked Questions
Q1: Does the GT210 support wireless connectivity?
Yes, the GT210 supports both WiFi and GPRS functions for flexible wireless communication with your management system.
Q2: How long does the battery last during a power outage?
The built-in backup Li-battery provides approximately 4 to 5 hours of continuous operation in the event of a power failure.
Q3: What is the fingerprint and log capacity of this device?
The GT210 can store up to 3,000 fingerprint templates and up to 100,000 transaction logs.
Q4: Can I use RFID cards with the GT210?
Yes, it supports optional card readers for 125kHz ID cards or 13.56MHz Mifare cards.
Q5: Is the device suitable for access control?
Absolutely. It is a professional biometric system designed for both time attendance and door access control, featuring Wiegand in/out and various alarm types.
Q6: What communication methods are available for data transfer?
It supports TCP/IP, RS232/485, and USB Host/Client. You can also use a USB flash drive for offline data management.
