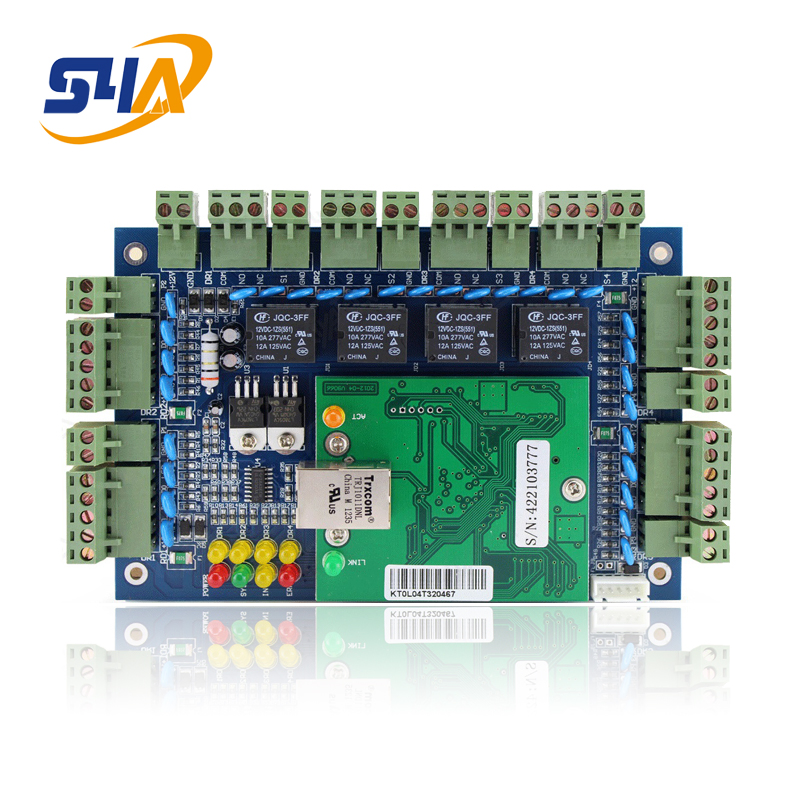

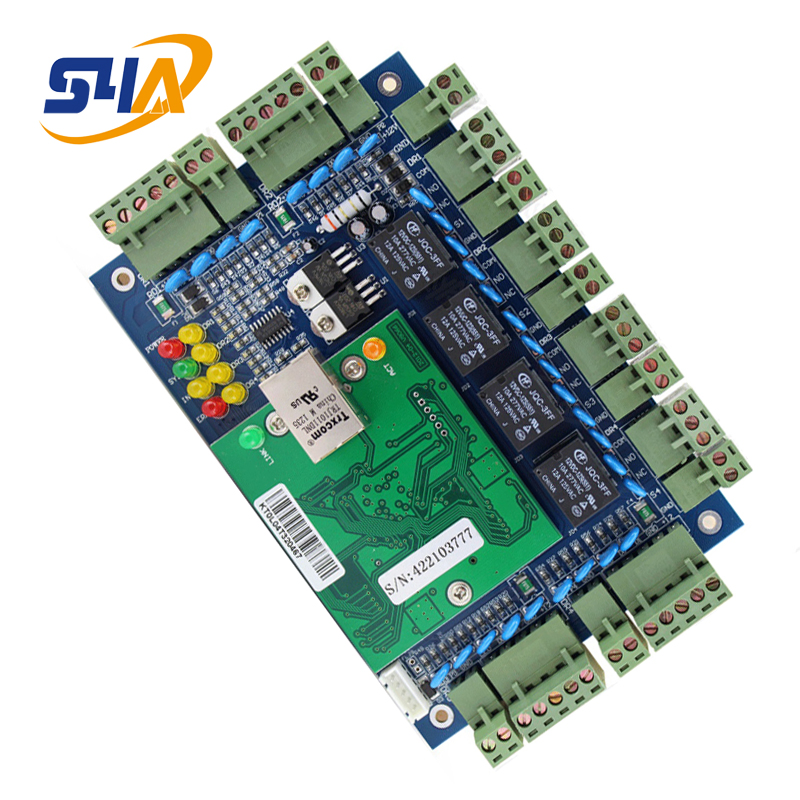

mobile Phone with Swipe Card Entry Systems
Product Description
📋
Basic Information
Model NO.ACB-004PS
Technology32-Bit Technology
Way of ControlComputer Control
Communication ModeTCP/IP
TypeTwo-way Controller
Input Format of ReaderWiegand 26 or 34 Bits
Quantity of Readers4 PCS
Door Controlled4 Door
Users20000
Verify WayRFID, Pincode, Face, Finger
Support InterlockYes
OriginChina
Production Capacity200000/Month
⚡
Product Description

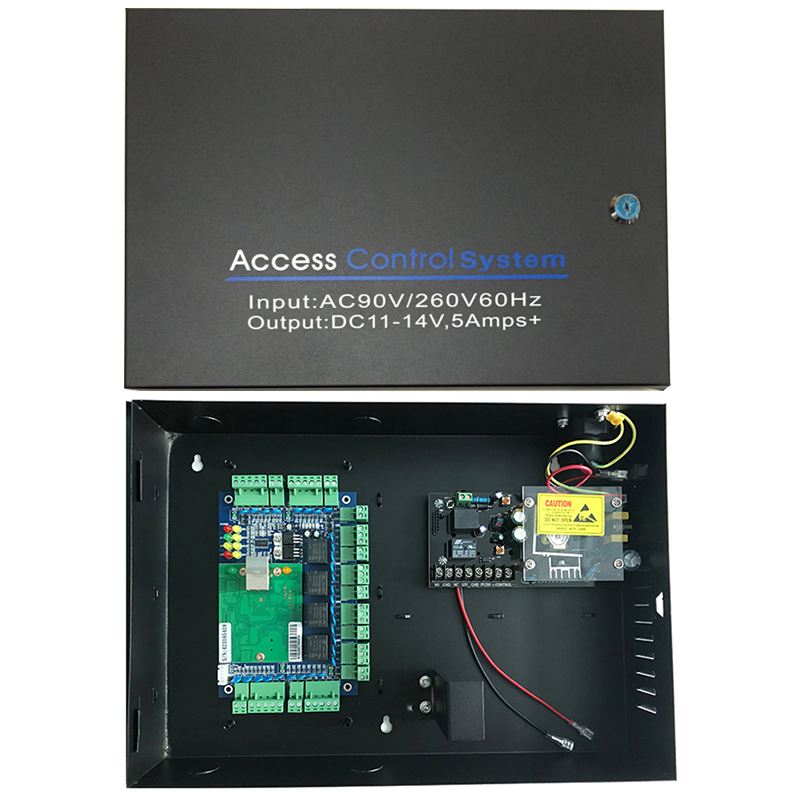

ACB-PS08A Access Power Supply (220V/110V 5A)
| Technology Parameters | |
|---|---|
| AC Input Voltage | AC 220V/110V 50Hz |
| Output Voltage | DC12V |
| Output Electric Current | 5A |
| Output Power | 60W |
| Operating Temperature | -20'C ~ +60'C |
| Operating Humidity | 90% |
| Size (with batteries) | 374 X 262 X 67 mm |
| Size (without batteries) | 272 x 228 x 67 mm |

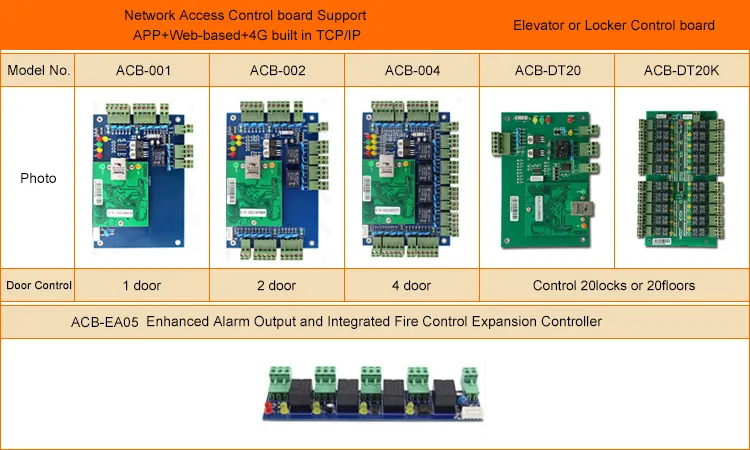

Network Access Control Board Comparison
| Parameter | Single Door (ACB-001) | Two Door (ACB-002) | Four Door (ACB-004) |
|---|---|---|---|
| Communication | TCP/IP 10M/100M | TCP/IP 10M/100M | TCP/IP 10M/100M |
| PCB Size | 160*106mm | 160*106mm | 160*106mm |
| Power Supply | 12VDC 4-7A | ||
| User Capacity | 20,000 Users | ||
| Event Buffers | 100,000 event buffers | ||
| Reader Input | Wiegand 26 (Compatible with HID, EM, Mifare, etc.) | ||
| Quantity of Readers | 2 pcs | 4 pcs | 4 pcs |
| Interlock Support | No | Yes | Yes |
| Anti-pass back | Yes | Yes | Yes |
| Remote Open | Yes | ||
🖼️

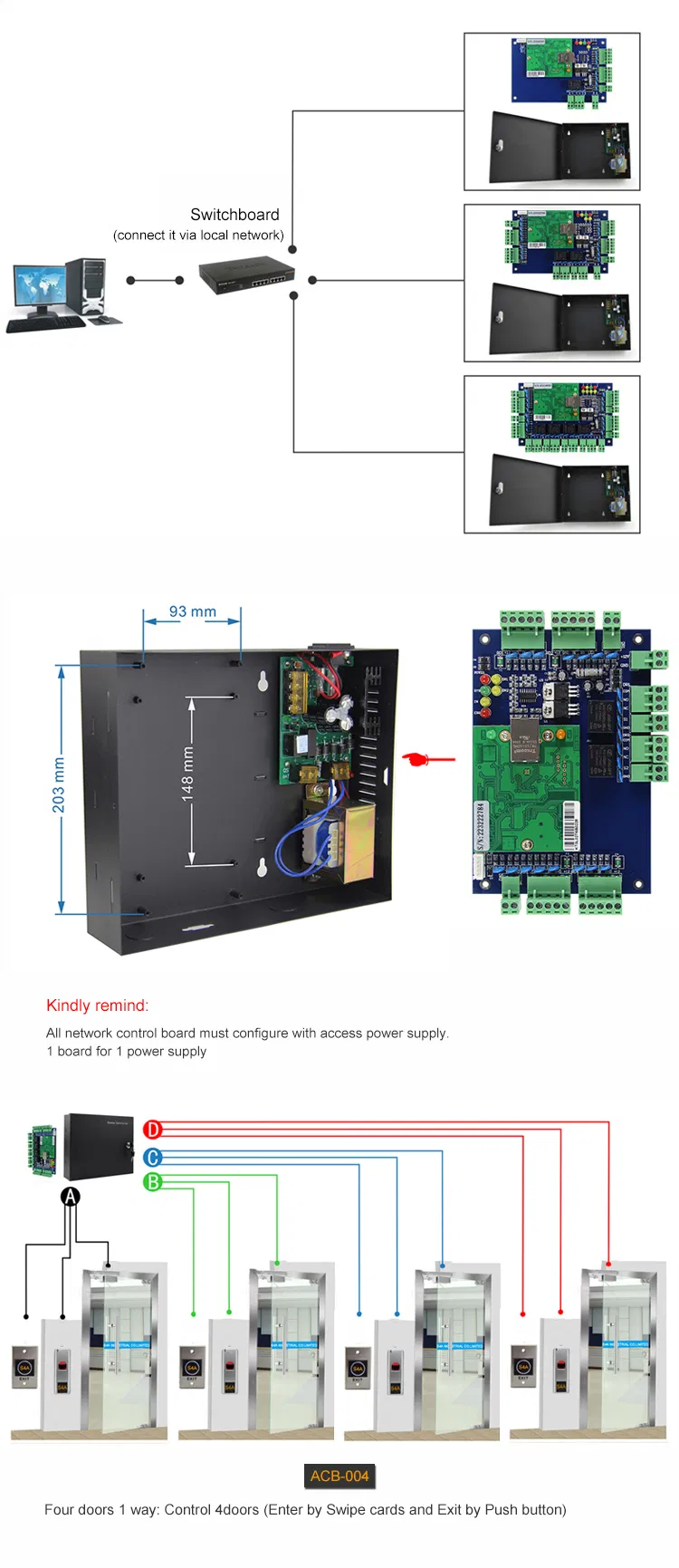

Product Visuals
❓
Frequently Asked Questions
How many users can the ACB-004PS controller manage?
The system supports a high capacity of up to 20,000 individual users, making it suitable for both small offices and large enterprises.
What communication methods are supported for networking?
The controller uses TCP/IP 10M/100M adaptive communication, allowing for stable and fast data transmission over standard network coverage areas.
Will I lose my access records if the power goes out?
No. The controller is equipped with High Speed Memory, ensuring that all event records and user data are never lost during power interruptions.
What is the maximum distance between the card reader and the controller?
The maximum distance is 100 meters, though we recommend a distance of 80 meters for optimal performance and signal stability.
Does this system support advanced security features like Anti-passback?
Yes, the system supports advanced features including Anti-passback, tailing prevention, multi-card opening, and interlock functions for enhanced security.
What types of card readers are compatible with this board?
It supports any card reader using the Wiegand 26 or 34-bit protocol, including RFID, HID, EM, and Mifare technologies.
