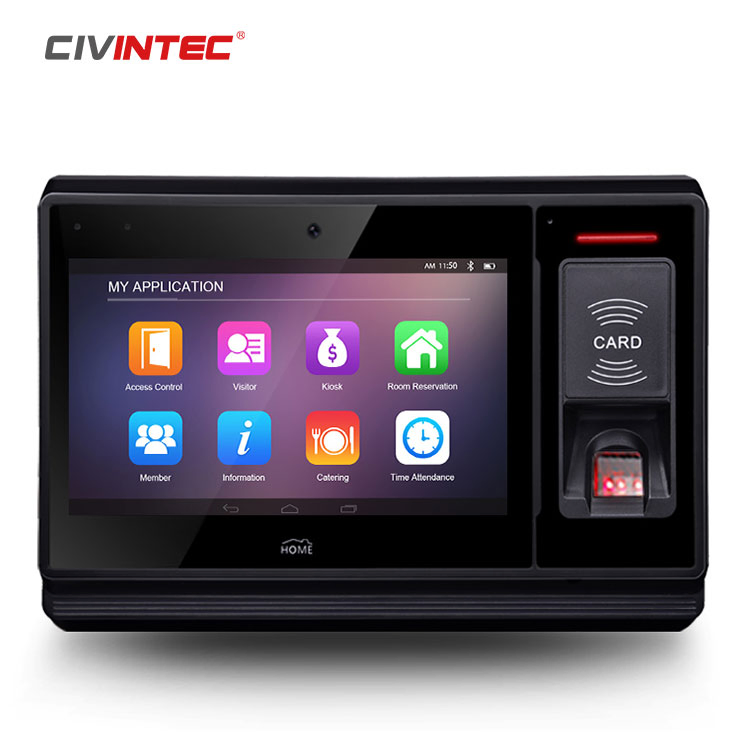

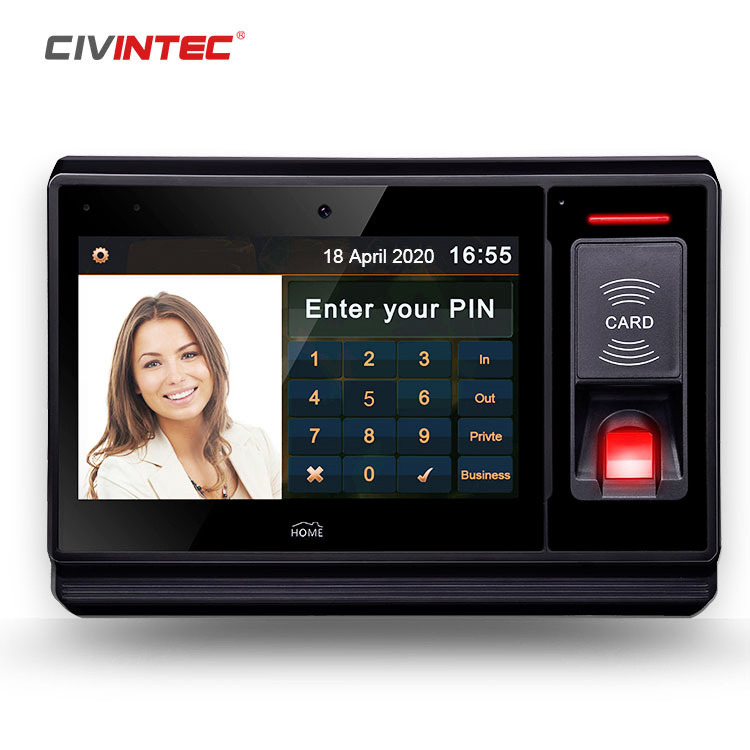

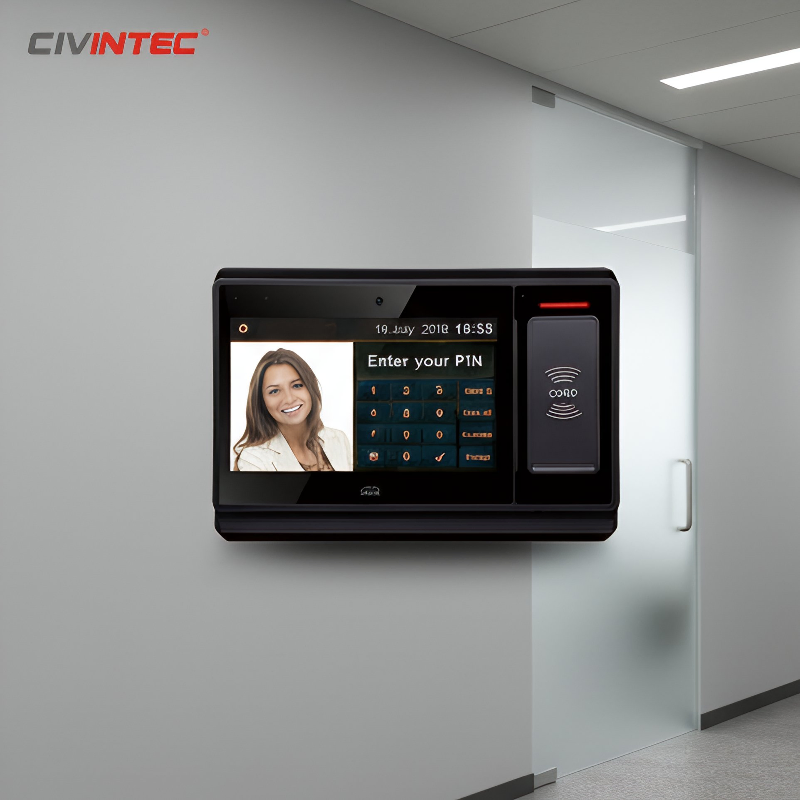

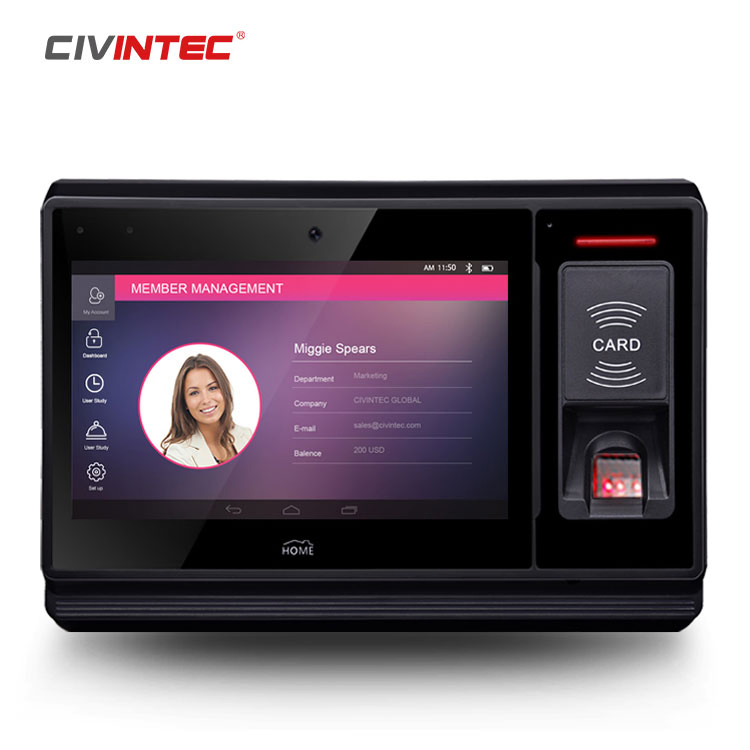

7" Touch Screen Android WiFi Bluetooth 13.56MHz Magnetic Door Entry Control System Video Door Phone
Product Description
📋
Basic Information
Model NO.
CN890FA-W-B
Interface
IEEE 1394, PCMICA, USB, Parallel Port, Serial Port
Reading Distance
1-10cm
Application
Parking, Hospital, Library, Company, Bank, Store
Product
Biometric Access Control Terminal
Display
7" Large Touch Screen
OS
Android
Identification
Biometric + RFID Tag + Mobile ID
RFID Support
MIFARE, DESFire EV1, EV2, MIFARE Plus, Em
Sam
ISO7816 Sam Modules
Power
Battery, Poe, 9-24VDC
Camera
5.0 Megapixel Camera
Capacity
1000 Piece/Pieces Per Month
Dimensions
H=160mm, W=230mm, D=45mm
🛡️
Product Description
| Technical Specifications | |
|---|---|
| Model | CN890 SERIES |

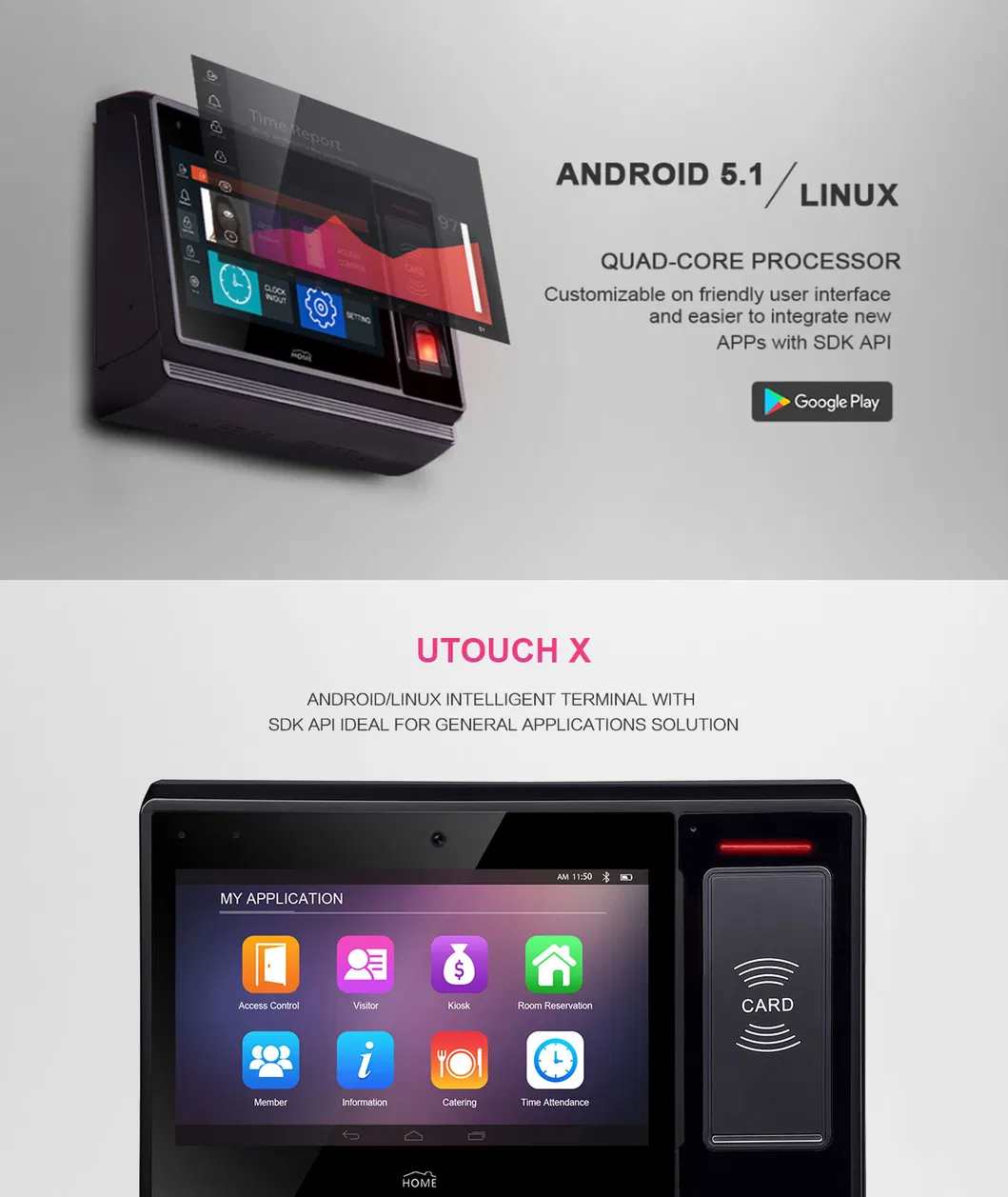

| Operation System | ANDROID & LINUX |
| Display | 7.0" capacitive touch screen |
| Smart Card Interface | |
| ISO-protocol | 125KHz & Pro, 13.56MHz ISO14443A/B, ISO15693, ISO18092 NFC |
| Contact smart card | ISO7816 (T=0,T=1) 1 SAM module |
| Biometric Fingerprint Reader | |
| Fingerprint sensor | 500 dpi optical sensor |
| Template capacity | 1:1 (100,000); 1:N (25,000) |
| General Features | |
| Communication | 4G, WiFI, BT4.0, TCP/IP, RS232, RS485/OSDP, Wiegand, USB2.0 (OTG) |
| Power supply | 9-24V DC, Power over Ethernet, Battery |
| Camera | Auto focus 5.0 megapixel digital camera |
| Certification | CE, FCC |
❓
Frequently Asked Questions
What operating systems are supported by the CN890 series?
The CN890 series terminal supports both Android and Linux operating systems, providing flexibility for various software integrations.
What types of identification methods does this device support?
It supports a multi-modal identification system including Biometric fingerprint recognition, RFID tags (125KHz & 13.56MHz), and Mobile ID.
Can the device be powered via Ethernet?
Yes, the terminal supports Power over Ethernet (PoE), as well as 9-24V DC external power and battery operation.
What are the wireless communication options available?
The device is equipped with 4G LTE, WiFi, and Bluetooth 4.0 for seamless wireless connectivity.
What is the fingerprint sensor's resolution and capacity?
The terminal features a 500 dpi optical sensor with a template capacity of up to 100,000 for 1:1 matching and 25,000 for 1:N matching.
Does the terminal include a camera for video entry?
Yes, it includes a 5.0 Megapixel auto-focus digital camera, suitable for video door phone applications and facial capture.
