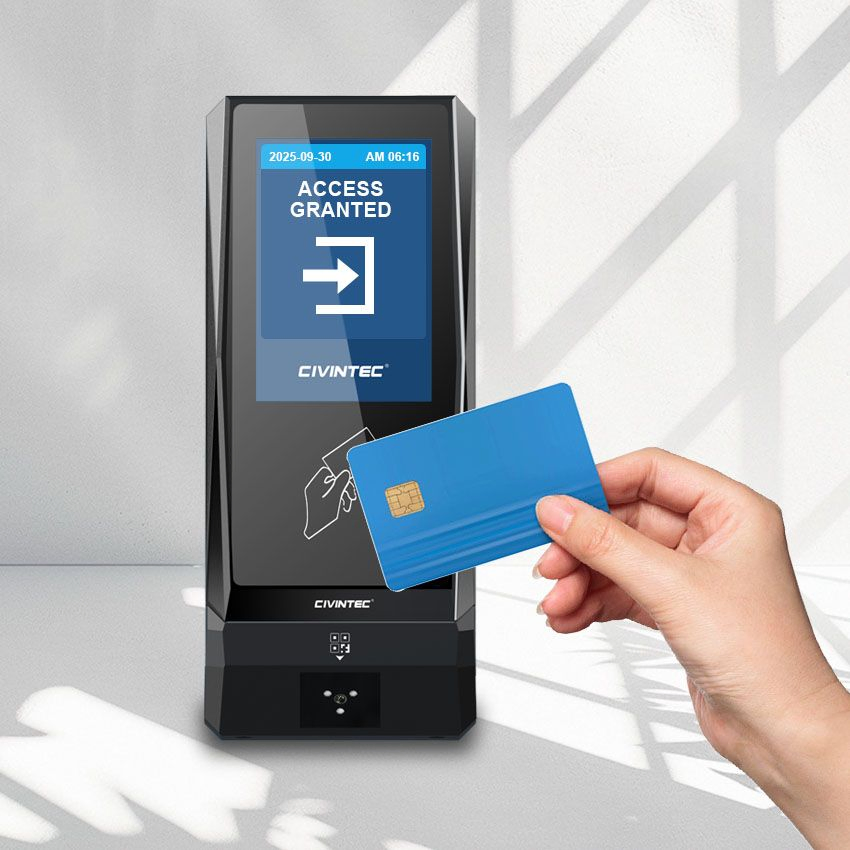

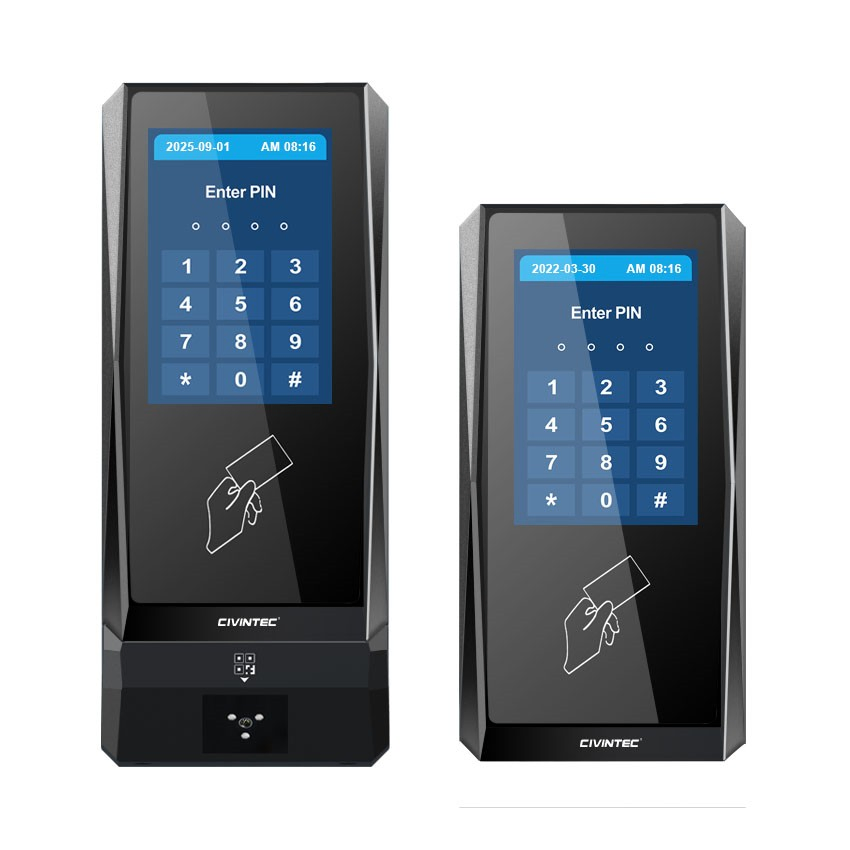

CT9 WiFi TCP Networked Qr Code RFID Card Door Entry System Automate The Enter of Gym for Turnstile Control with Sdk
Product Description

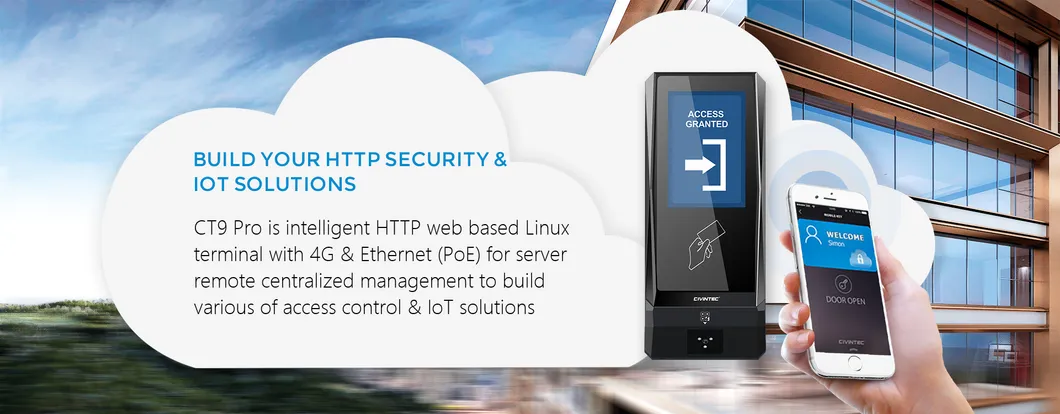

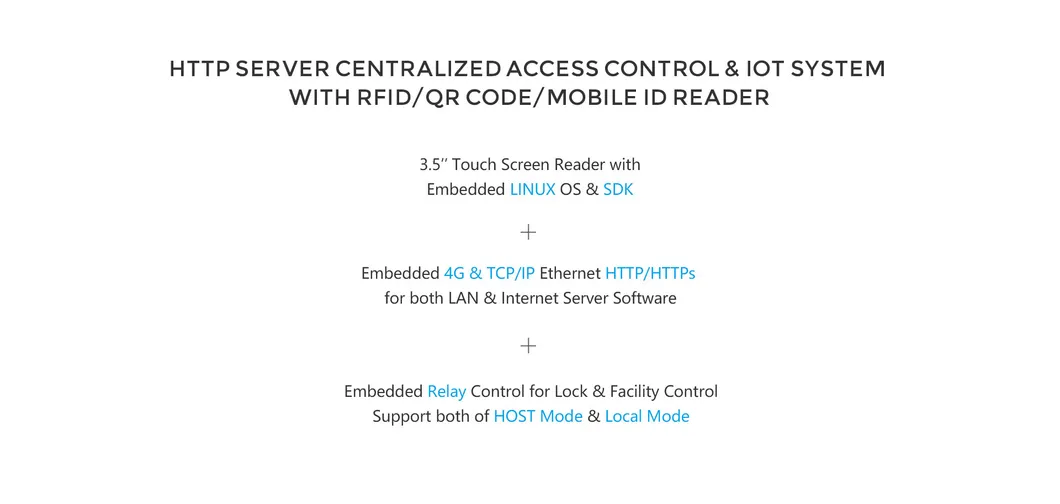

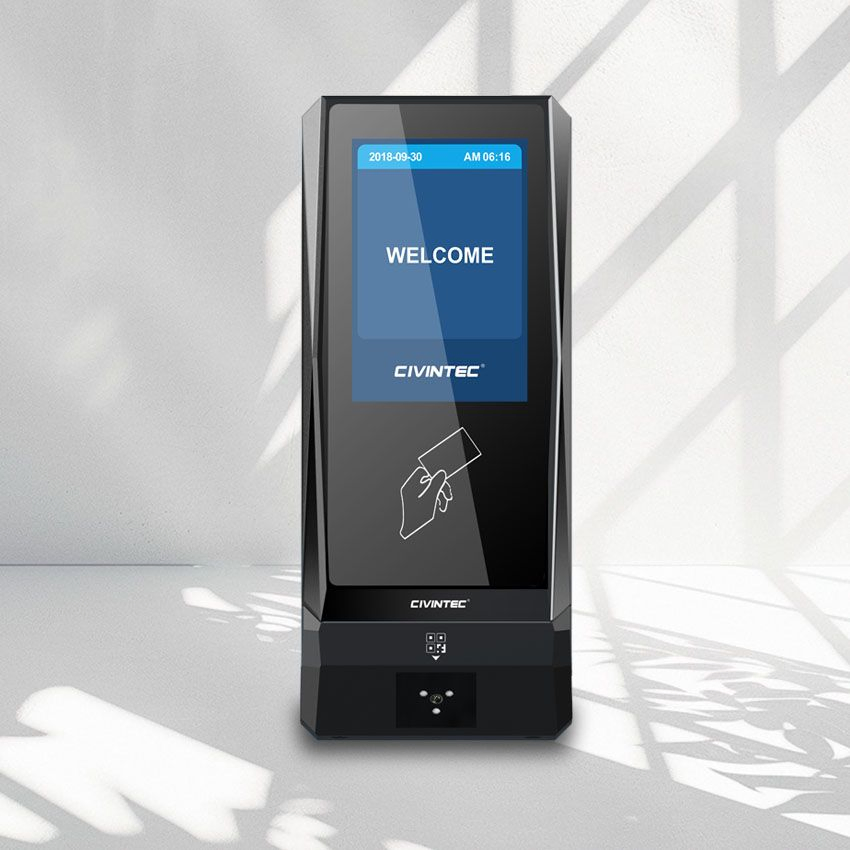

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE / barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |

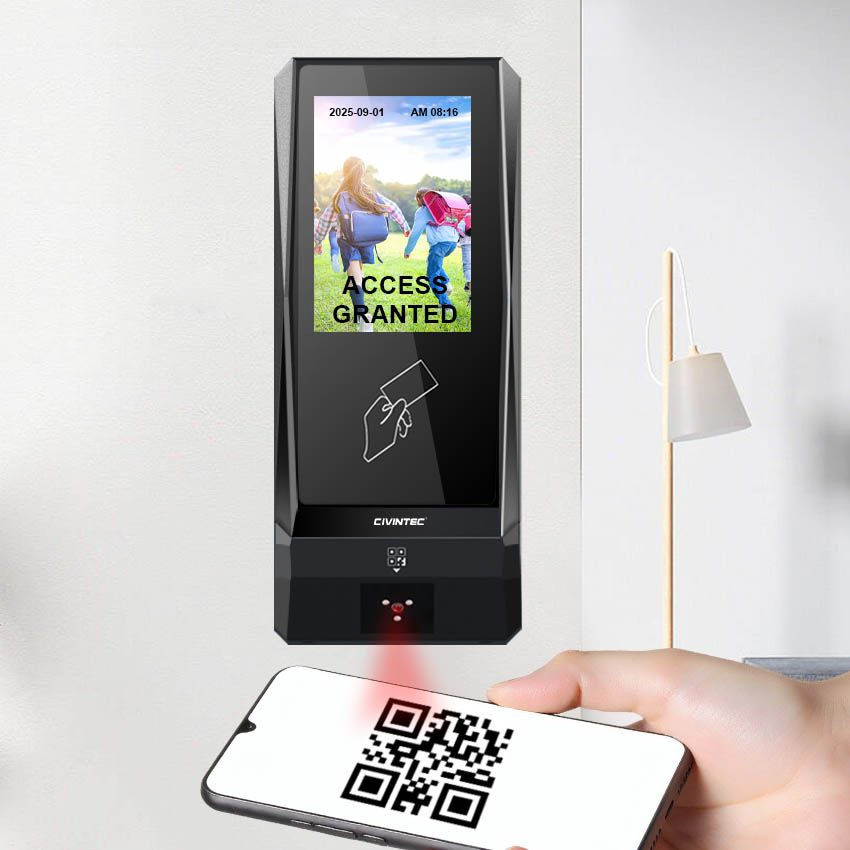

| QR code | QR Code, Micro QR code, PDF417, Code 128, Code 39 and mainstream 1D/2D barcodes. |

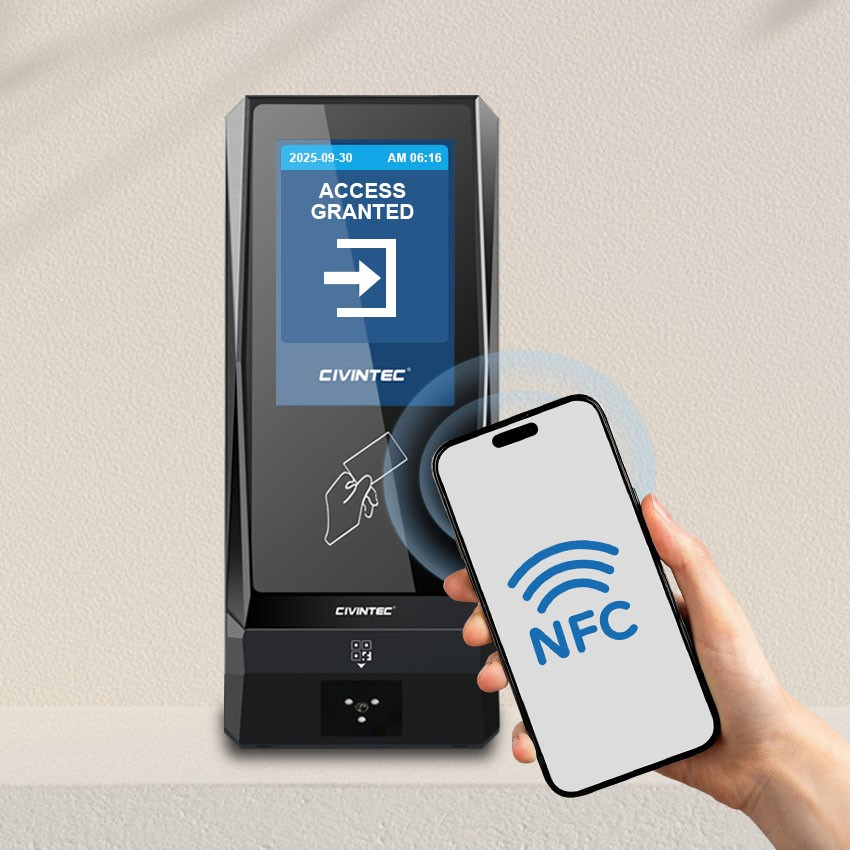

| Mobile ID | BLE, NFC (iOS support BLE, Android supports NFC/BLE) |
| RFID smart card | 125KHz & 13.56MHz (Mifare Classic, Plus, DESFire EV1/EV2/EV3, Seos) |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |

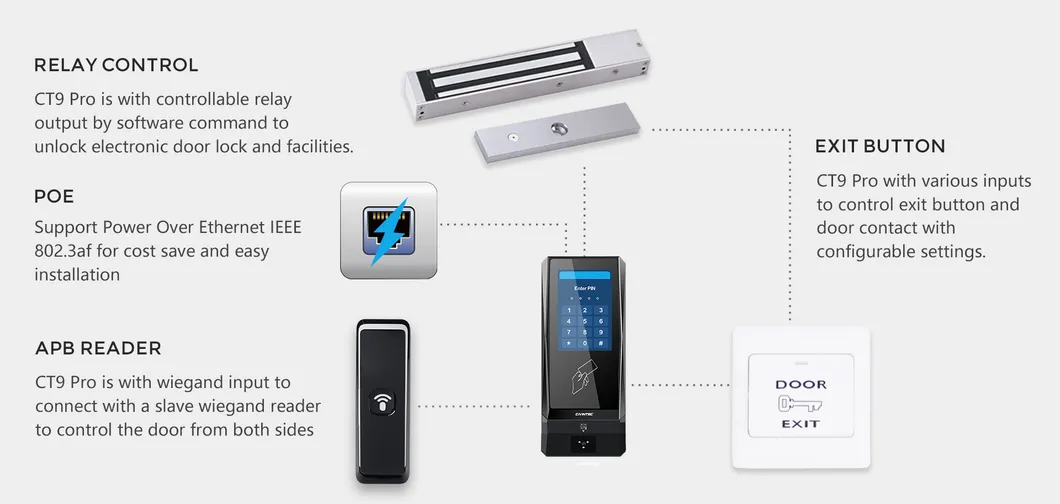

| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, exit button |
| Storage | 10,000 users / 50,000 logs |

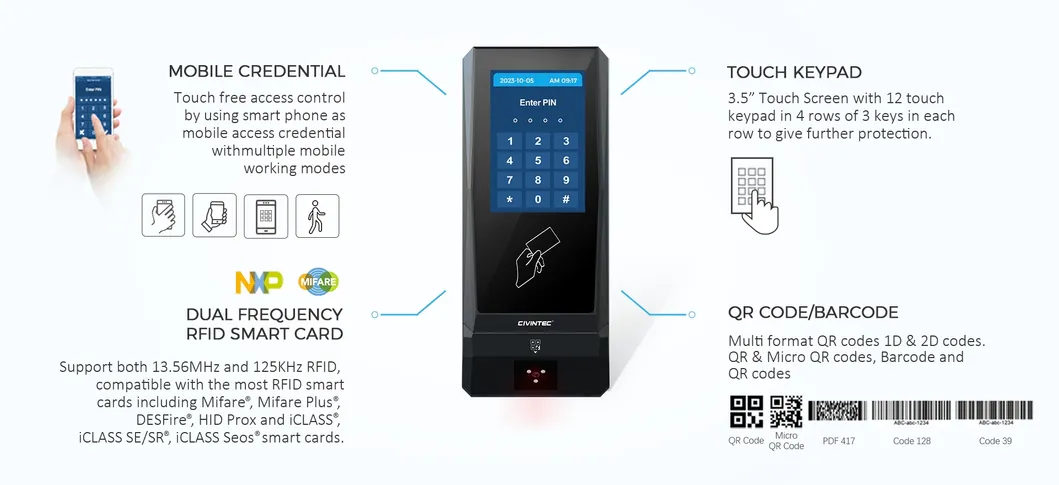

Multiple Access
5-in-1 technology including touch keypad, dual RFID, BLE, NFC, and QR Code scanning.
Cloud Integration
Bio-direction communication via standard HTTP/HTTPs for remote control and facility management.

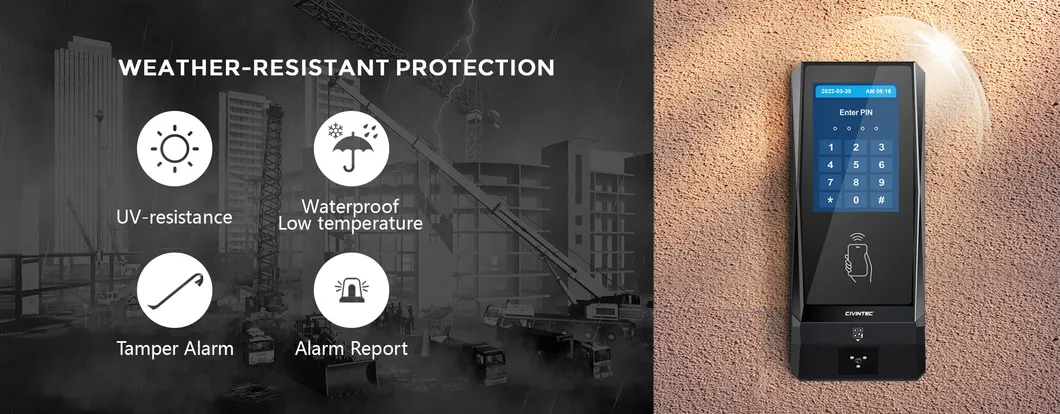

All-Weather Ready
IP65 rated for outdoor use, resistant to rain, dust, and UV exposure.

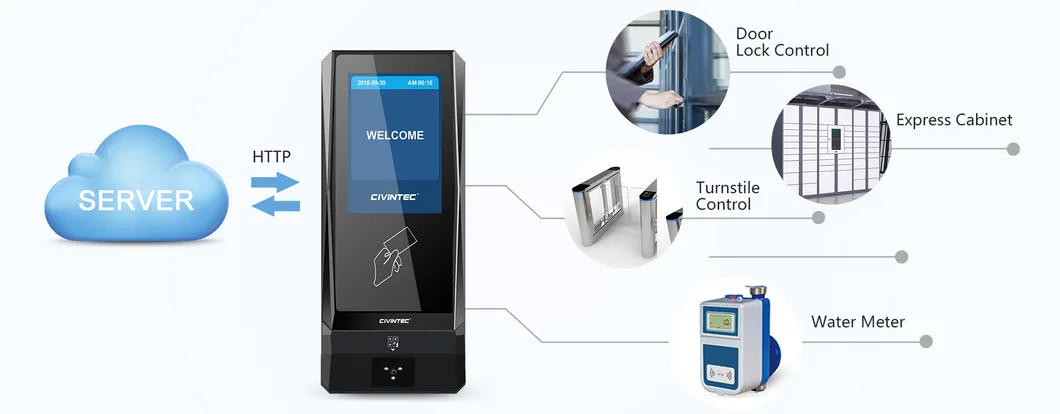

Multiple Application Solutions: Crystal Touch CT9 is an IP access control reader remotely controlled by cloud web-based software in real-time. It features an embedded relay output to control door locks and manage IoT solutions effectively.

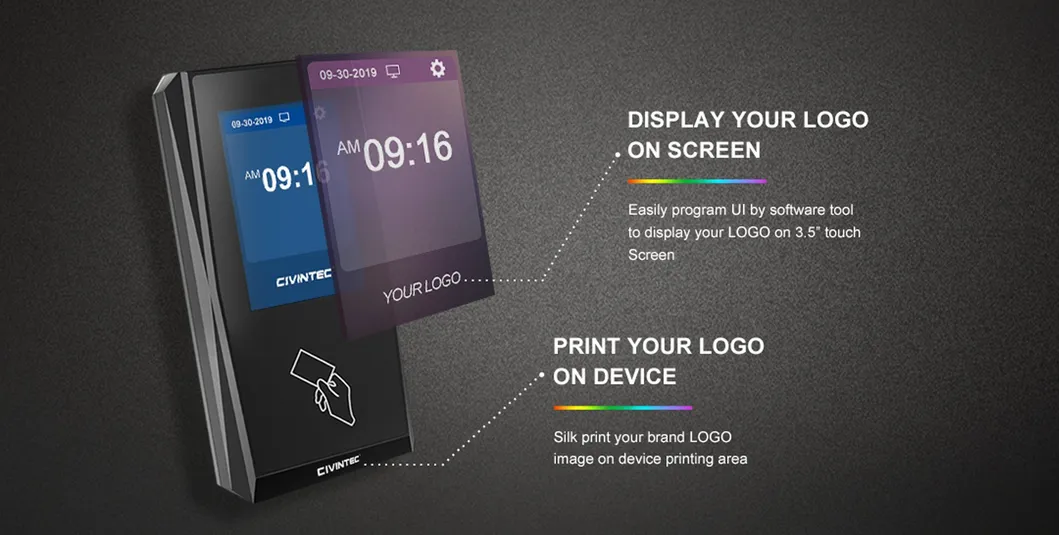

Leading designer and manufacturer offering ODM customization on hardware, housing, firmware, and software. Users can program and display their own logos on the 3.5" touch screen and OEM logo printing is available for the reader body.
