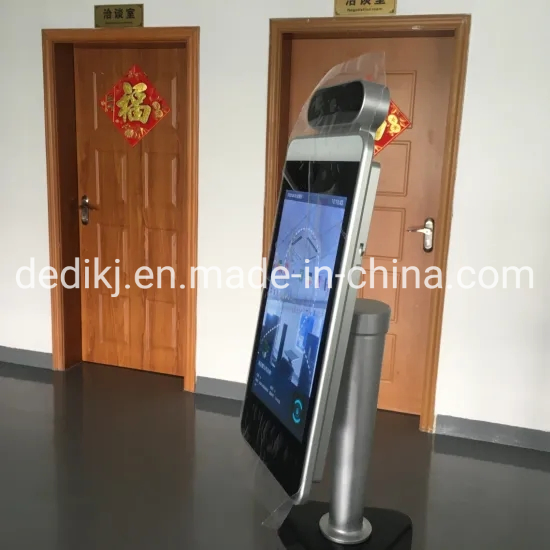

8 Inch LCD Screen Facial Card Access System Body Temperature Measuring Face Recognition
Product Description
Basic Specifications
Installation
Wall-Mounted
Type
Touch Screen Panel AD Player
Touch Screen
Capacitive
Screen Tech
LCD
OS
Android / Linux
Resolution
1920*1080 / 1024*600
Input Voltage
AC100~240V 50/60 Hz
Panel Brand
100% A+ Grade LG Panel
Response Time
5ms
Viewing Angle
178 / 178
Capacity
100,000+ PCS
HS Code
8521909090
Key Features
1

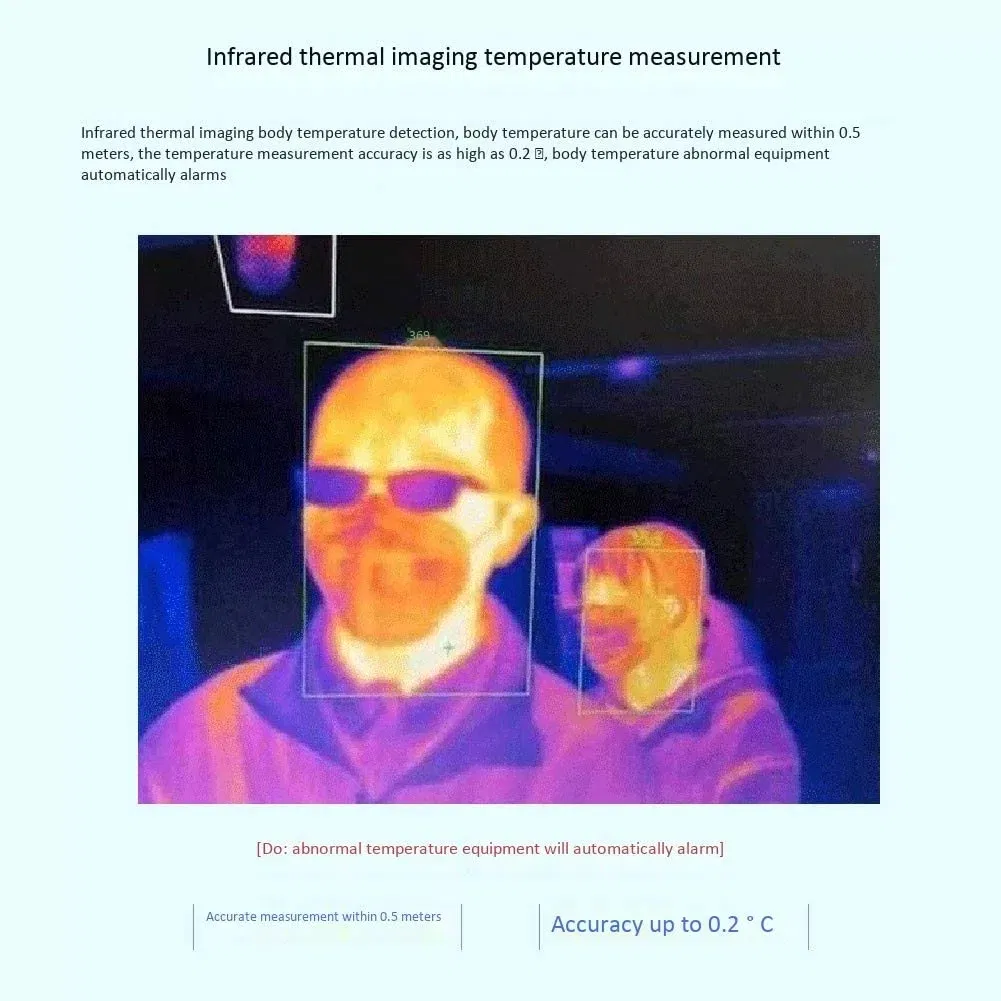

Extremely Accurate Temperature Measurement
High precision medical-grade non-contact measurement. Automatic collection and recording of body temperature information in real time with accuracy up to ±0.2°C.
2
Abnormal Temperature Alert
If data exceeds the user-set threshold, the terminal issues a warning to effectively screen individuals with abnormal temperatures.
3
Mask Detection & Identification
Integrated function to determine if a passer-by is wearing a mask while performing face recognition to ensure identity safety.
4

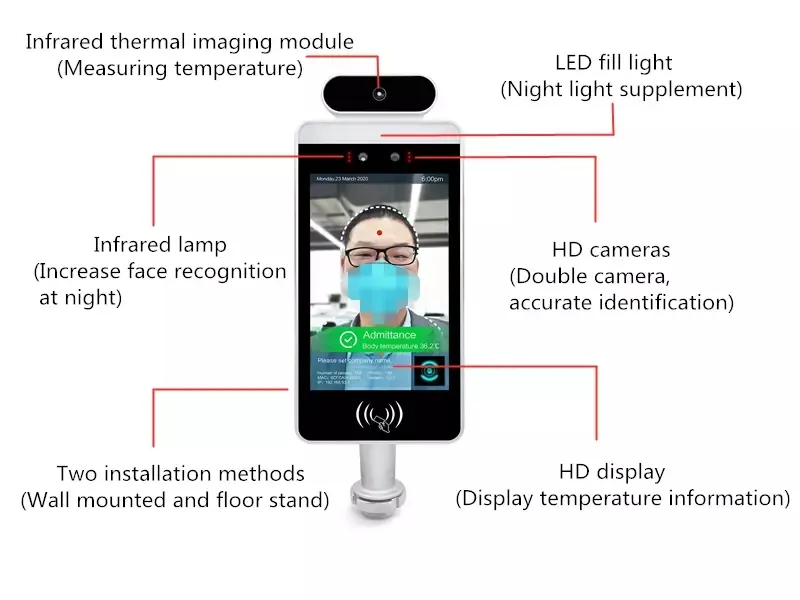

Face Recognition & Anti-Counterfeiting
Equipped with a binocular camera for two-eye live detection, effectively resisting photos, videos, and other cheating attacks.
5
Large Storage Capacity
Standard 30,000-level face library for quick matching and traceability of abnormal targets.
6

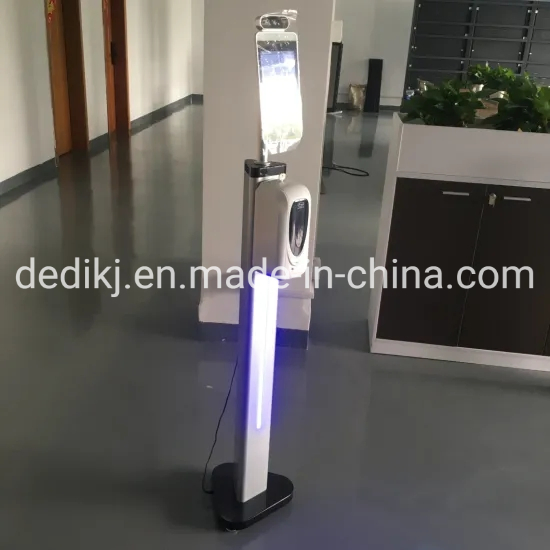

Quick Deployment
Supports gate and wall mounting for various environments, reducing cross-infection risks and saving manpower.
Technical Parameters
| Basic Info | Product Name | Wrist temperature-measured face recognition terminal |
| Product Model | DD08EE02 | |
| Operating System | Embedded Linux Systems | |
| Display | Size | 8-inch IPS full screen |
| Brightness | 450cd/m2 | |
| Resolution | 1024x600 | |
| Camera | Resolution | 200W Pixels (1920 x 1080) |
| Sensor | 1/2.7 inch low-light CMOS | |
| Re-lighting | RGB (Natural Light) and Infrared Lights | |
| Temperature | Range / Distance | 32°C to 45°C / 10cm |
| Accuracy | Up to ±0.2°C | |
| Resolution | 0.02°C | |
| Smart Features | Face Library | 30,000 faces, 150,000 records |
| Recognition Speed | 0.2S / person | |
| Accuracy Rate | 99.99% | |
| Conventional | Protection Level | IP67 (Body), Anti-static: 6KV-8KV |
| Environment | -30 °C ~ 70 °C; Humidity: 10 ~ 90% RH | |

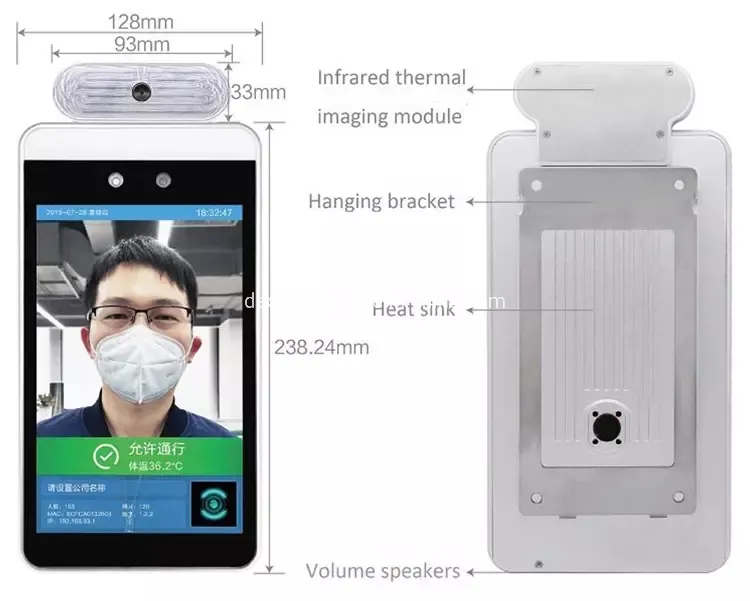

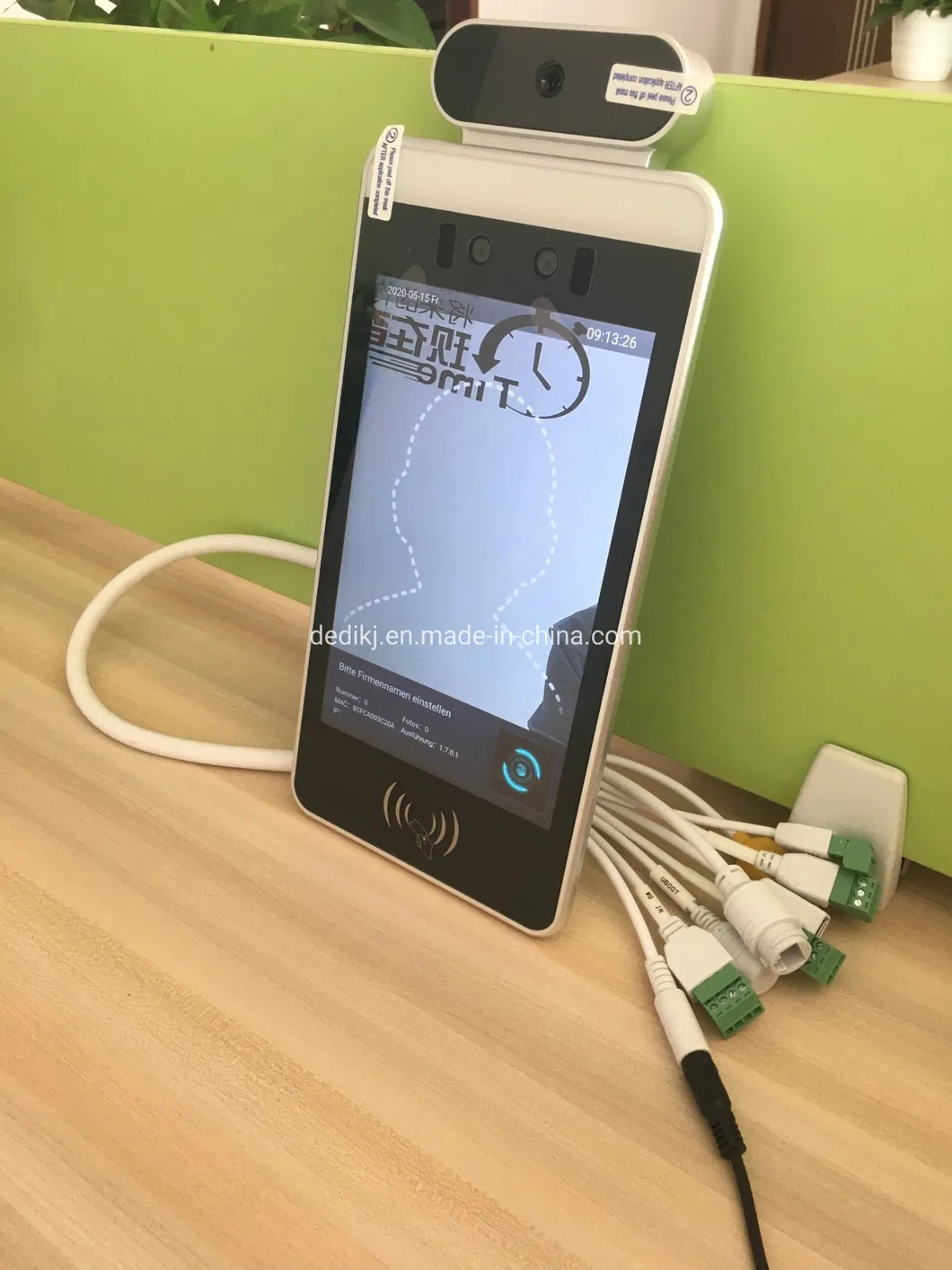

| Dimensions | 255*156*26.6mm; Weight: ≈1.5kg |
Frequently Asked Questions
How accurate is the temperature measurement?
The device uses a high-precision medical-grade non-contact sensor with an accuracy of up to ±0.2°C.
Can the system recognize people wearing masks?
Yes, it features integrated mask detection that can identify individuals and verify their identity even while wearing a mask.
What is the capacity of the face recognition library?
The terminal comes standard with a 30,000-level face library and can store up to 150,000 identification records.
Is the device suitable for outdoor use?
The body has an IP67 protection rating and operates in temperatures from -30°C to 70°C. However, please note the temperature measurement part is not waterproof.
How fast does the recognition process take?
The identification speed is approximately 0.2 seconds per person with an accuracy rate of 99.99%.

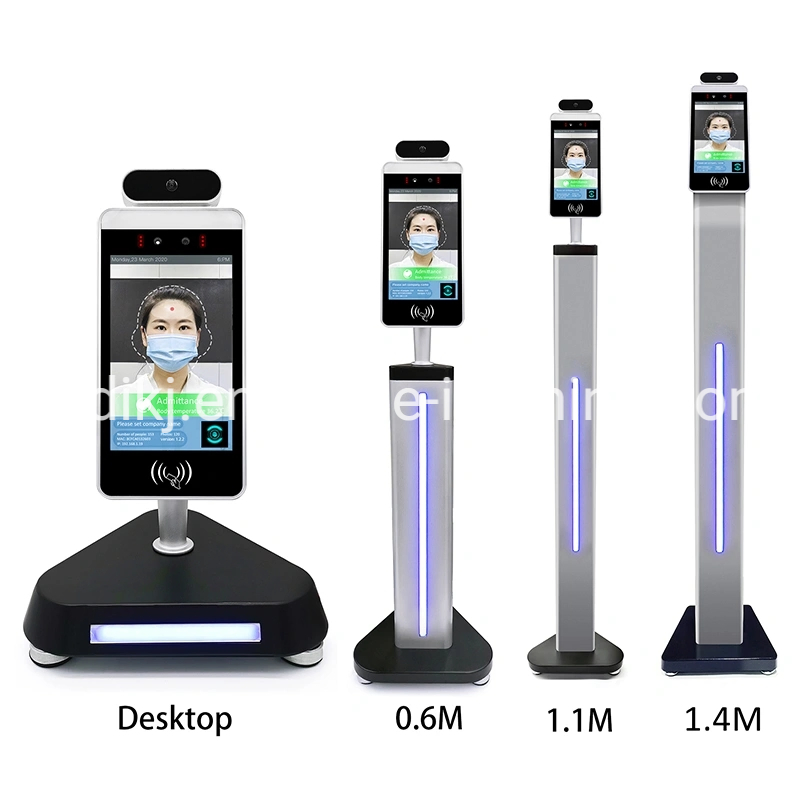

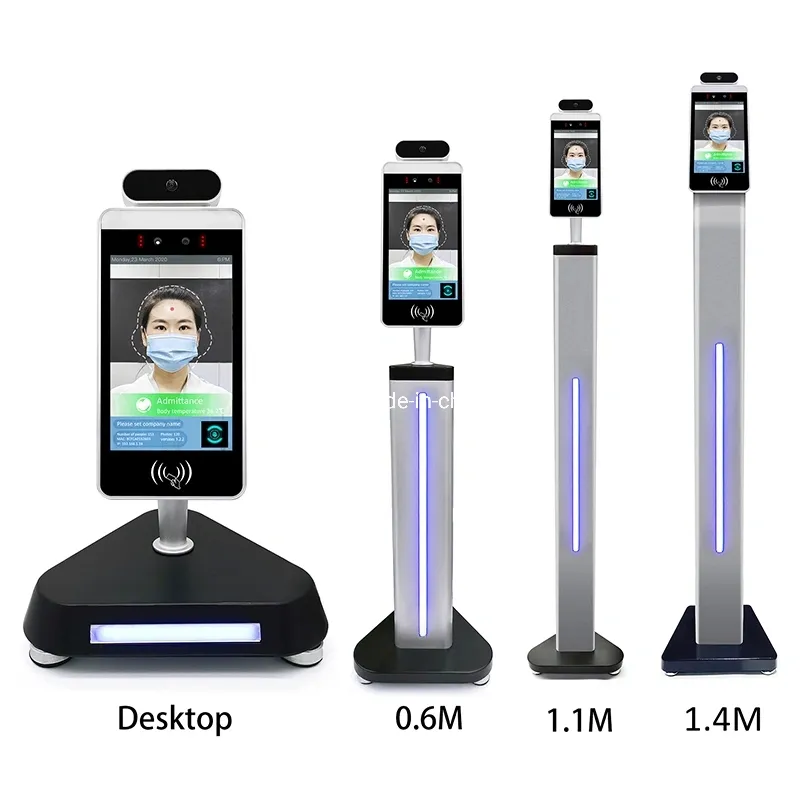

What installation methods are supported?
The device supports multiple deployment methods including wall mounting and gate/brake mounting to suit various environments.
