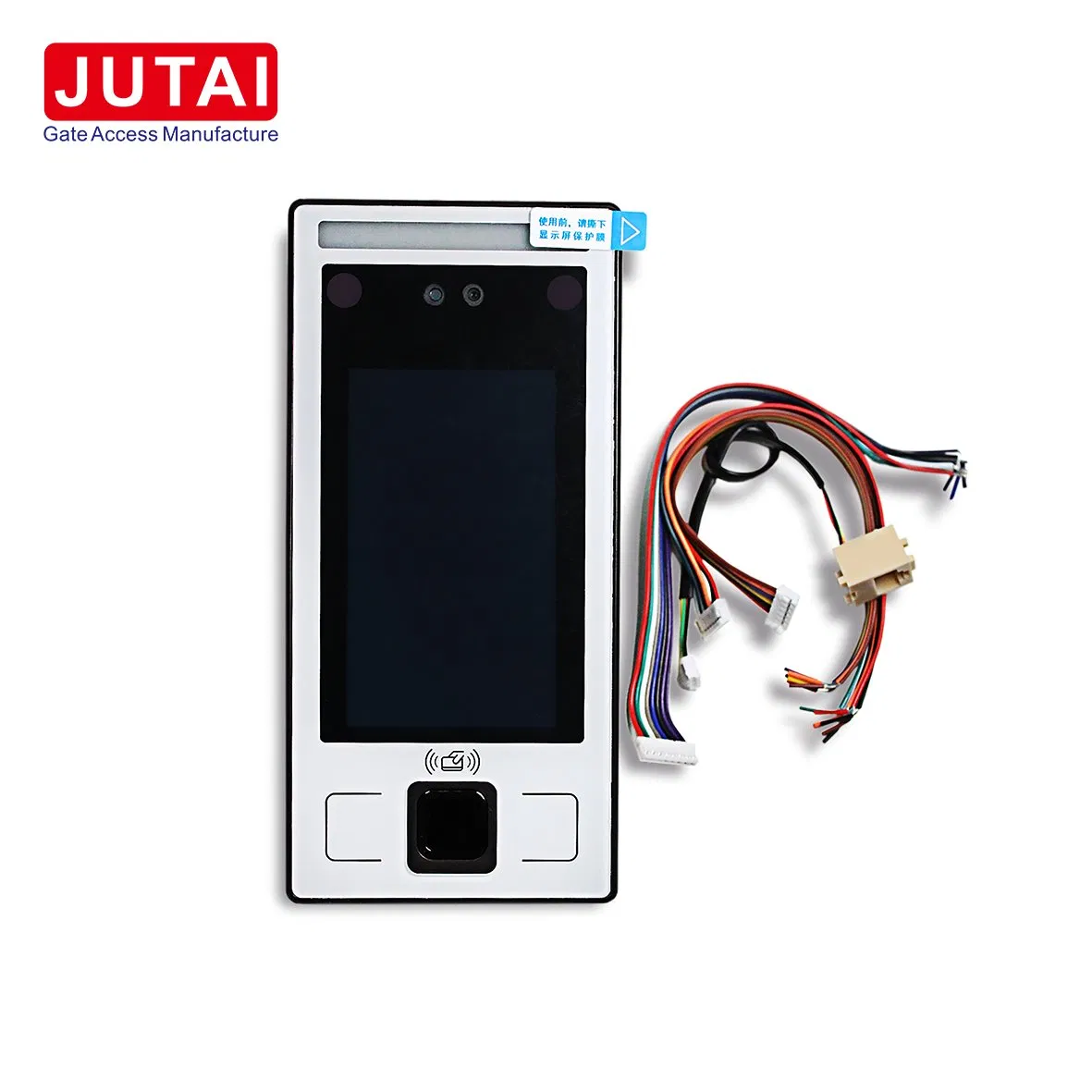

Finerprint Scanner Access Control System Facial Recognition Biometrics
Product Description
i

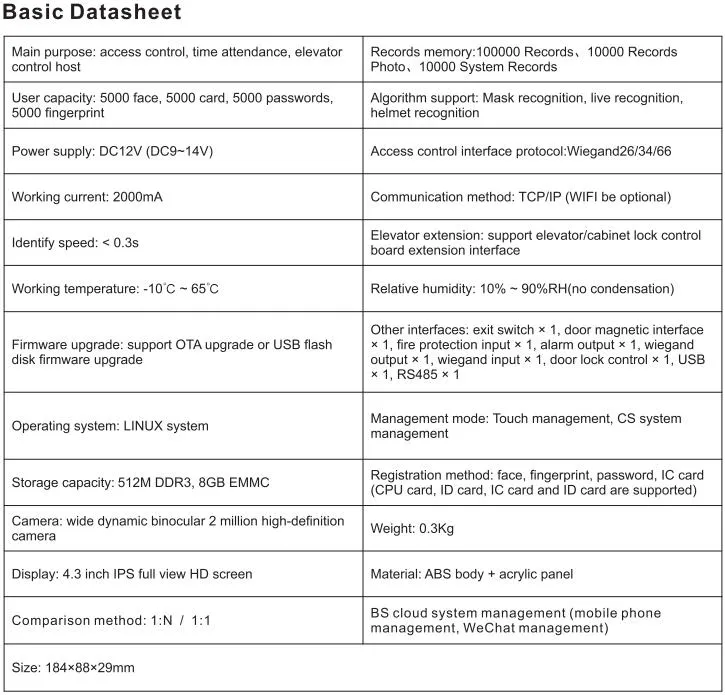

Basic Information
| Model NO. | FR-8100T |
| Main Purpose | Access Control, Time Attendance, Elevator |
| User Capacity | 5000 Faces, 5000 Cards, 5000 Passwords |
| Facial Capacity | 1200 |
| Algorithm Support | Mask Recognition, Live Recognition, 5000 Fingerprints |
| Records Memory | 100000 Records, 10000 Photos, 10000 System Records |
| Communication | TCP/IP (WiFi Optional), Wiegand 26/34/66 |
| Operating System | Linux System |
| Storage Capacity | 512m DDR3, 8GB Emmc |
| Power Supply | DC12V (DC9~14V) |
| Working Temp | -10°C ~ 65°C |
📦
Packaging & Delivery
| Package Size | 20.00cm * 9.00cm * 3.00cm |
| Package Gross Weight | 0.300kg |
| Lead Time | 7 days (1 - 100 Pieces); Negotiable (> 100 Pieces) |
📸

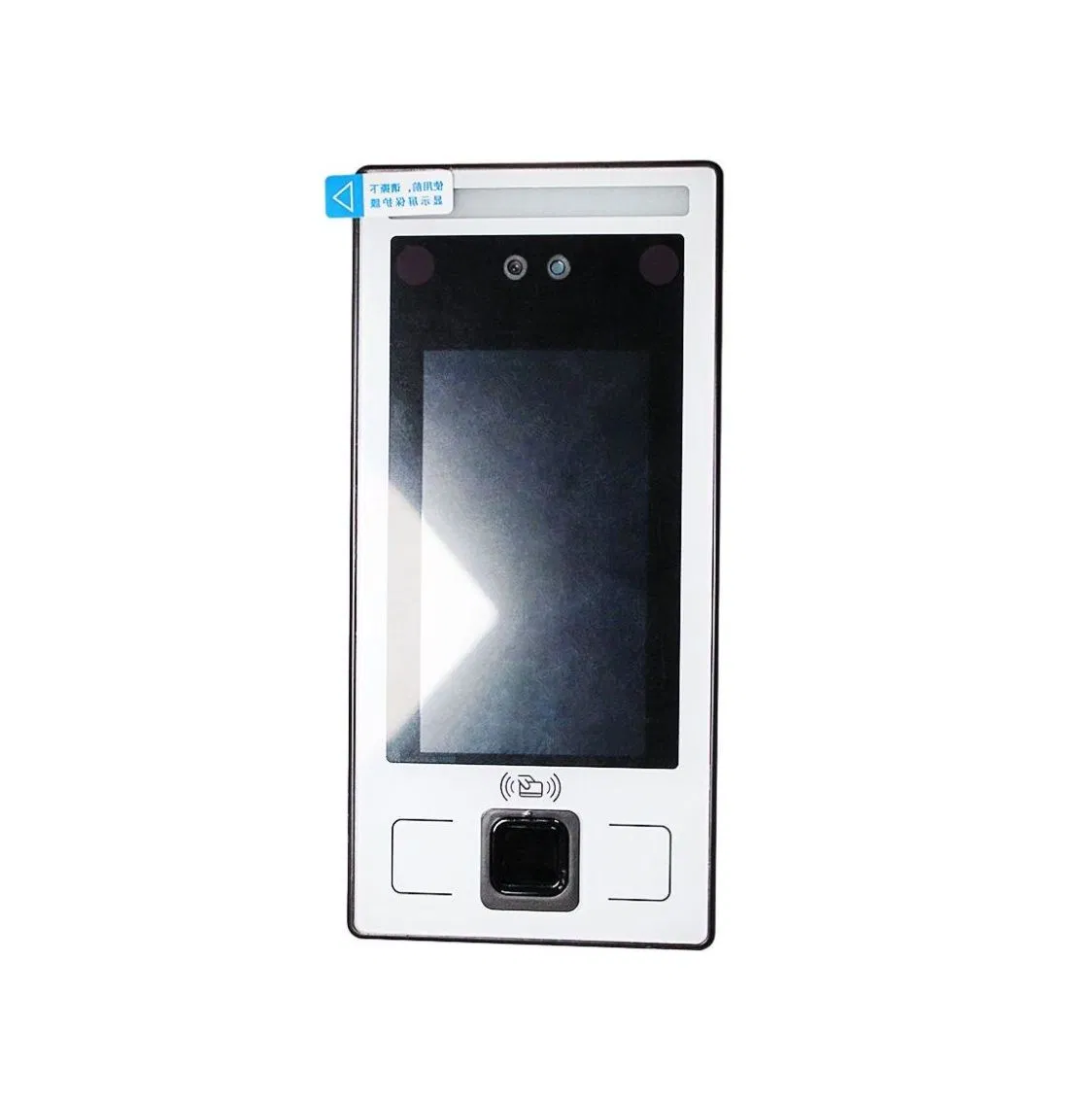

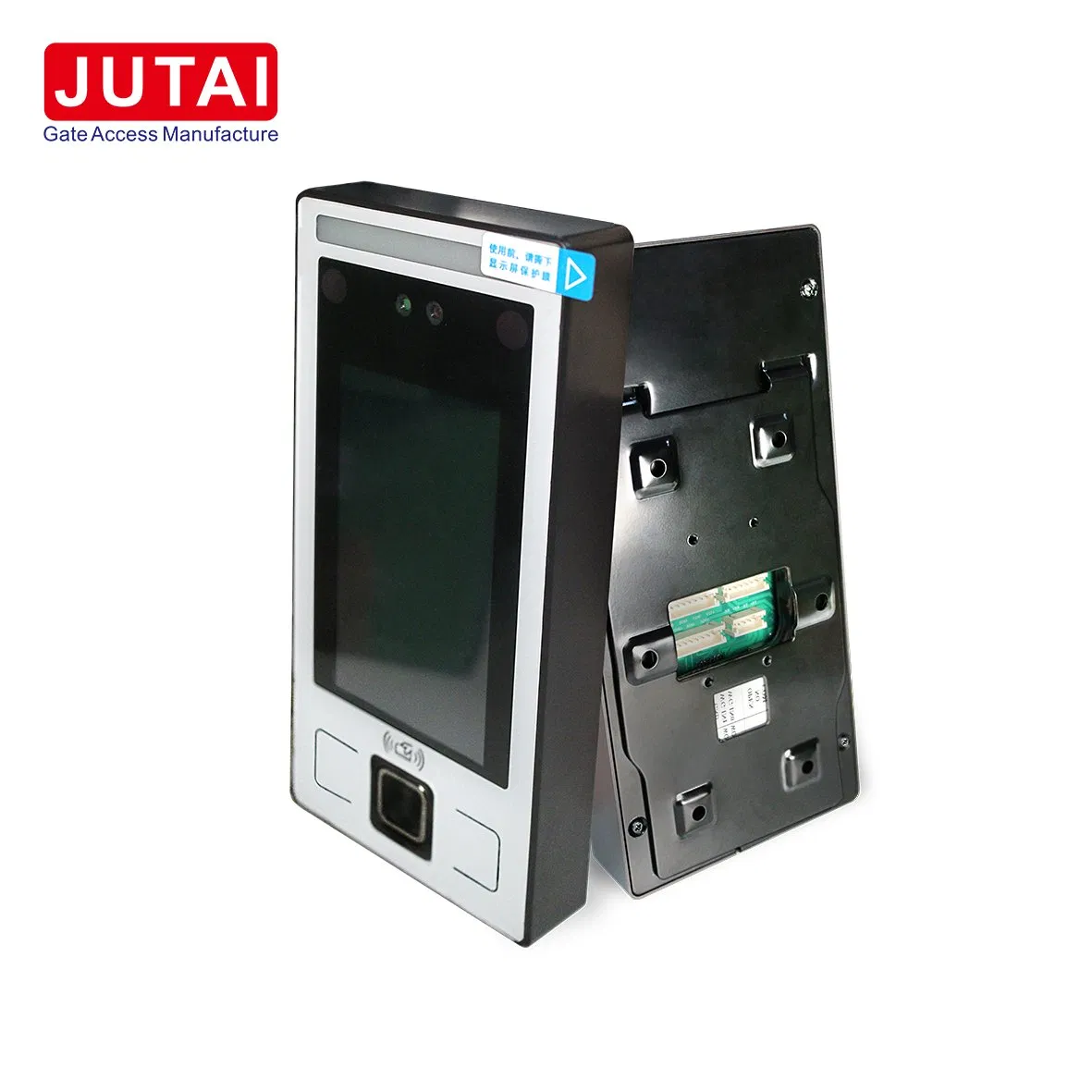

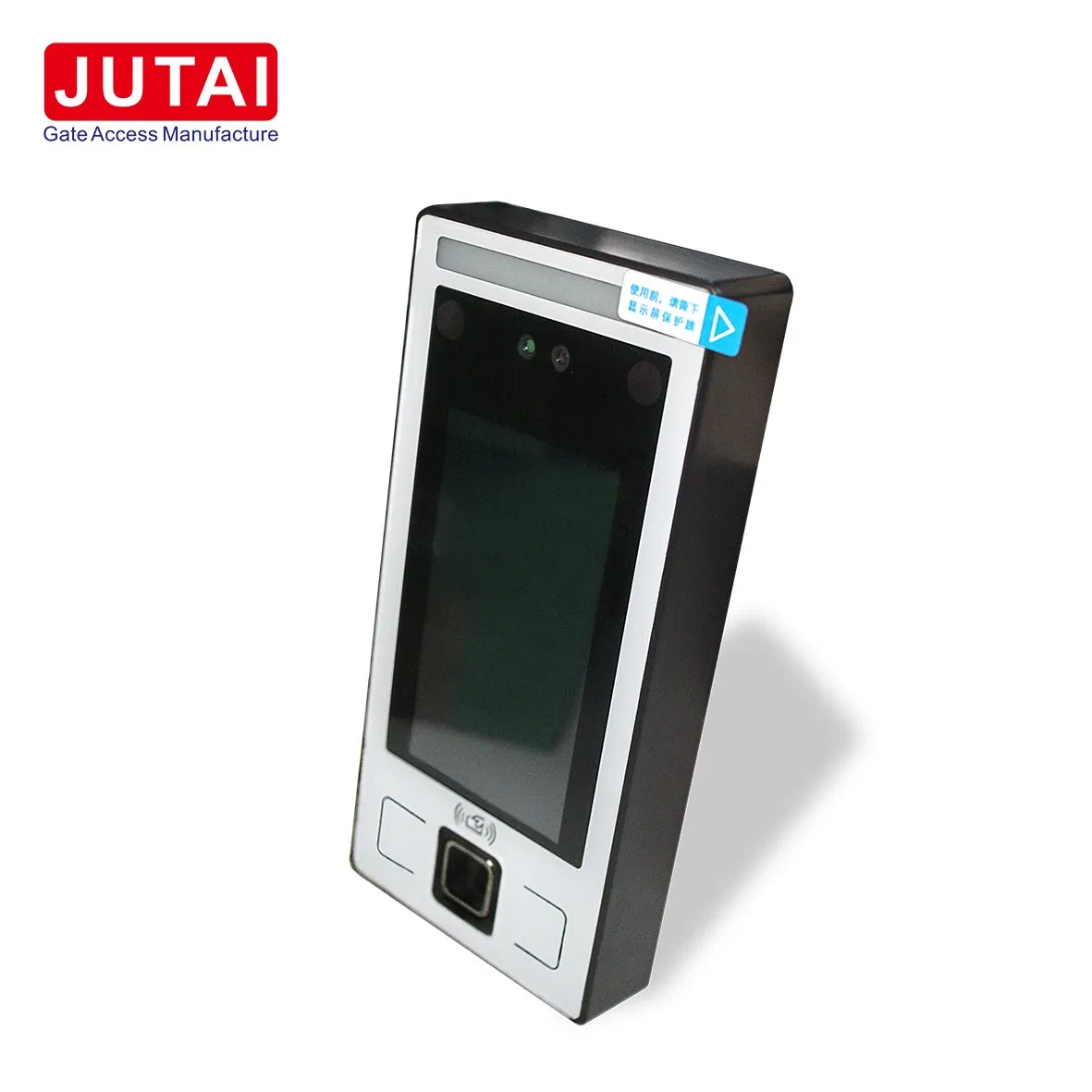

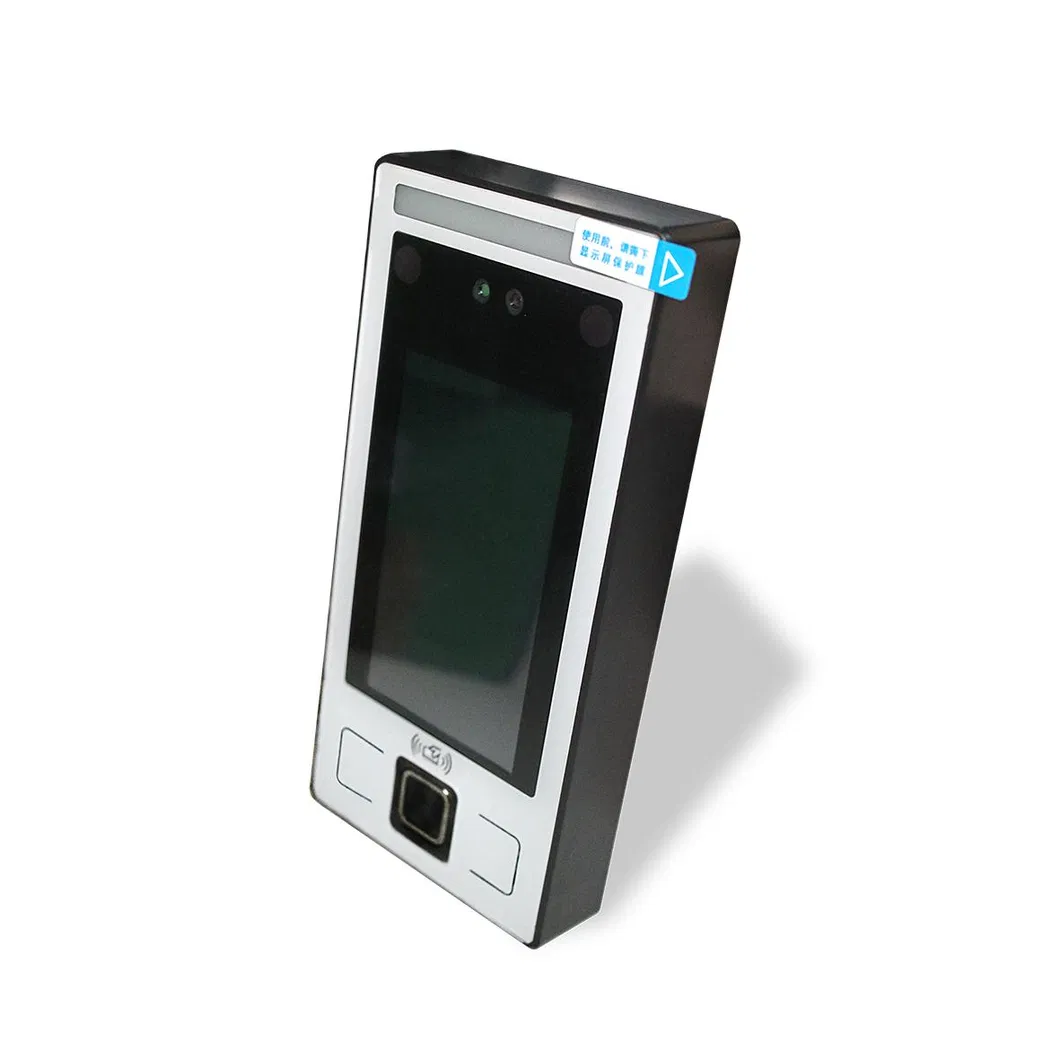

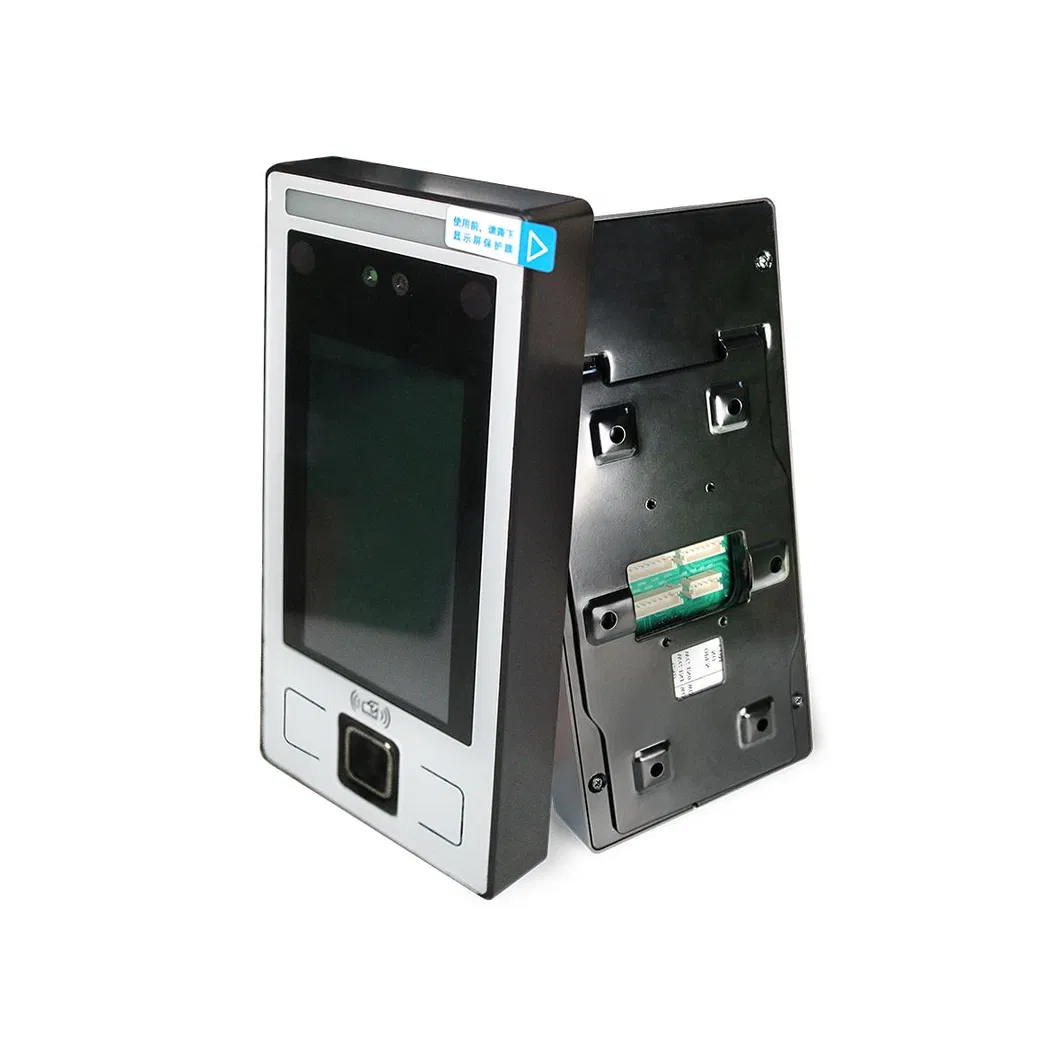

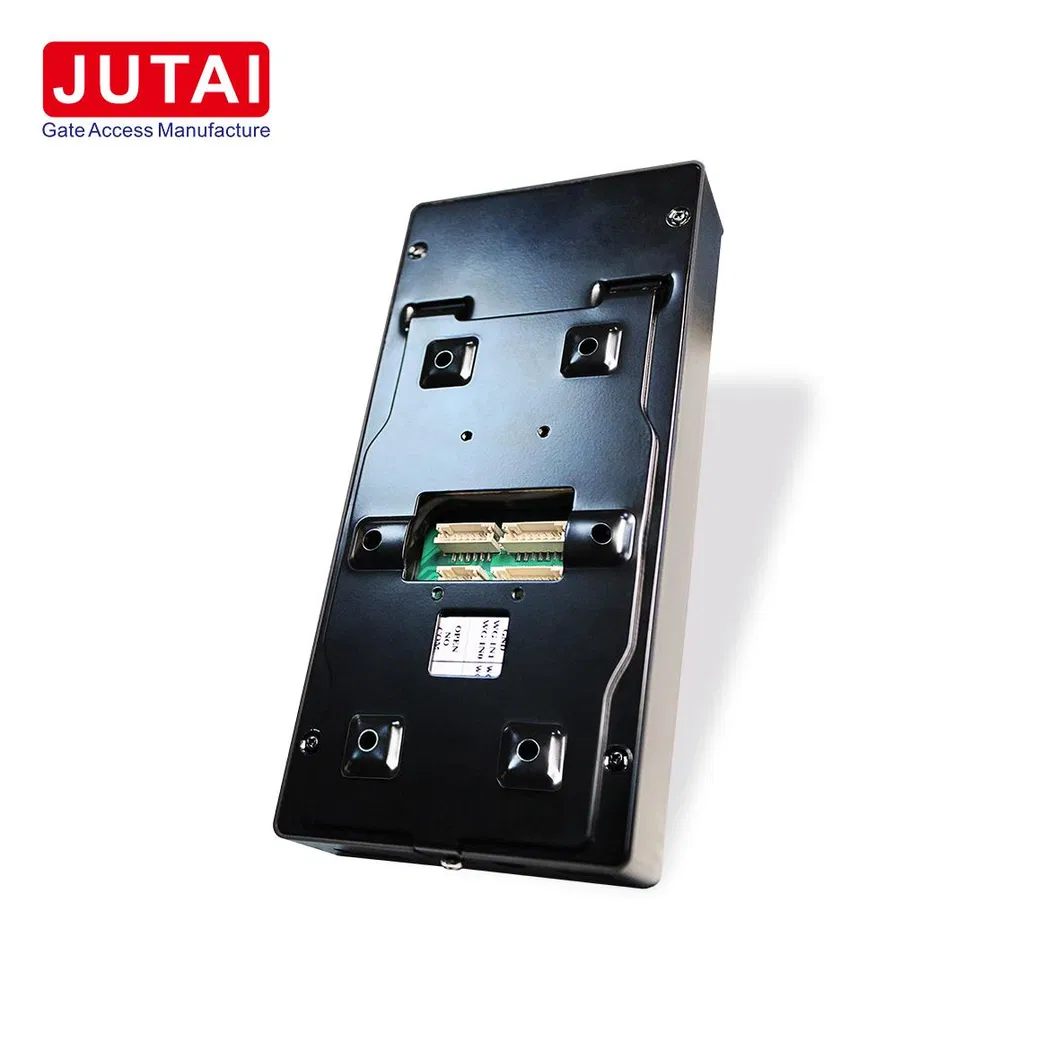

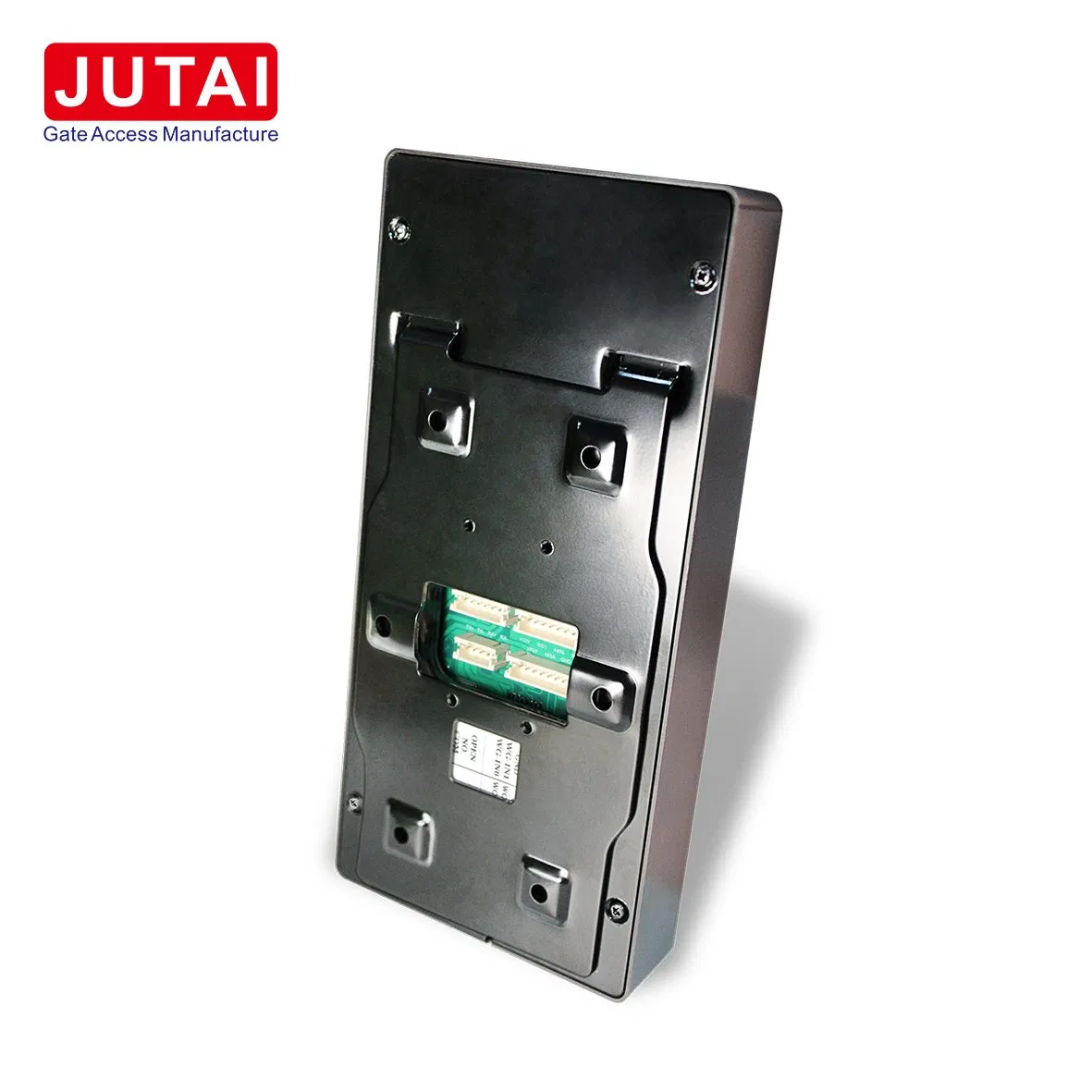

Detailed Photos
📝
Product Description

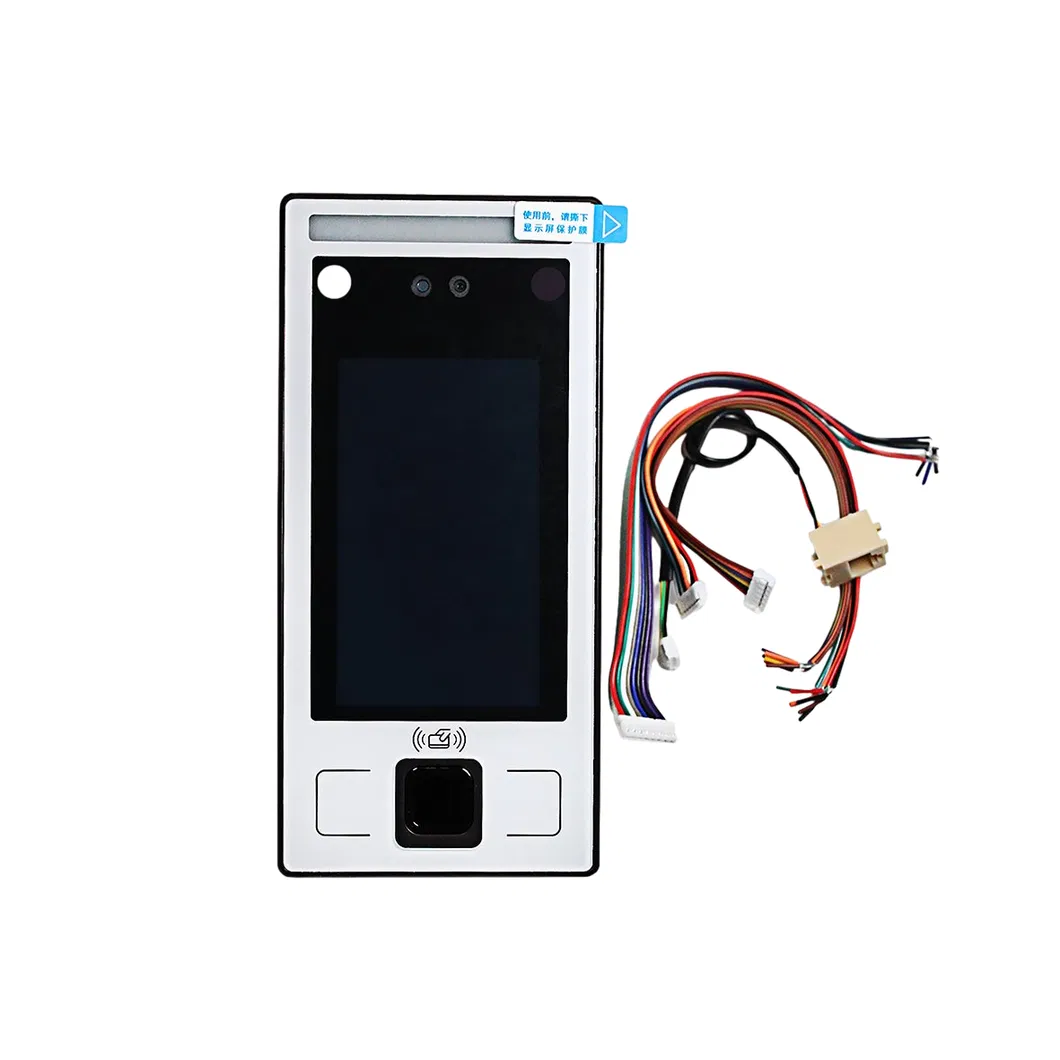

FR-8100T Dynamic Face Fingerprint Standalone Device
FR-8100T is a wide dynamic face recognition terminal product developed based on deep learning dynamic face access control machine, combined with CPU, GPU computing power, and ISP image acceleration function of the camera. The product supports live detection, which can prevent cheating attacks such as photos and video streams.
An imported lens is preferred for the whole machine. IPS full view high-definition LCD screen and its body are made of all metal electroplating, waterproof, dust-proof, and salt fog proof, which can realize normal use in outdoor and strong light environments. The identification distance is 0.3-2m. Support photo distribution registration.
FR8100T inbuild one way TCP network communication; One way WIFI communication; Two USB communication. It supports regular ringing and blacklist alarm functions, screen sleep, screen saver and timed restart functions to reduce power consumption during non-use time. It can be widely used in site labor service, smart community passage systems, office building hall management, and scenic spot ticket systems.
Basic Function
- Dynamic face recognition and live detection.
- Identification distance from 30cm up to 2m.
- Support outdoor strong light recognition.
- Support registration fee and certificate verification functions.
- Support secondary development: WebSocket (BS architecture) and Socket (CS architecture).
Packing Details
?
Frequently Asked Questions
What is the user capacity of the FR-8100T?
The device supports up to 5,000 faces, 5,000 cards, and 5,000 passwords, along with 5,000 fingerprints.
Does this device support outdoor installation?
Yes, the body is made of all metal electroplating and is waterproof, dust-proof, and salt fog proof, making it suitable for outdoor environments and strong light conditions.
What is the effective recognition distance for face detection?
The FR-8100T has a wide dynamic identification distance ranging from 0.3 meters to 2 meters.
How does the device prevent fake face recognition?
It utilizes live detection technology to prevent cheating attacks using photos, video streams, or high-definition images.
What communication methods are available?
The device supports TCP/IP as a standard, and WiFi is available as an optional feature. It also includes Wiegand 26/34/66 interfaces.
Can this device be used for elevator control?
Yes, it supports extension boards for elevator and cabinet lock control, making it highly versatile for various access management scenarios.
