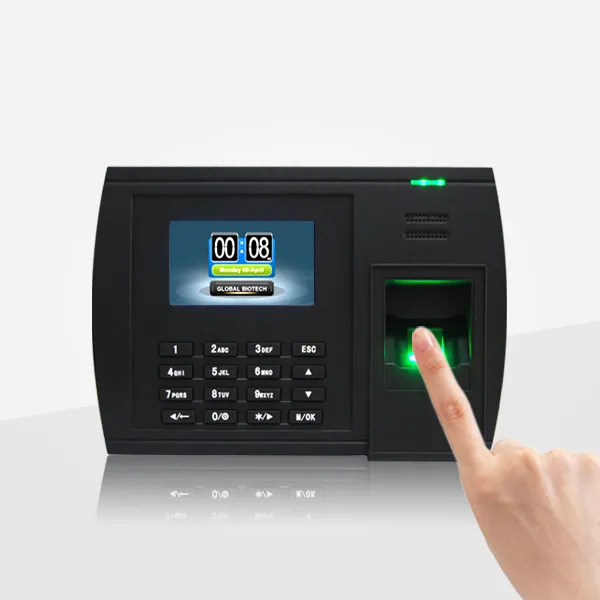

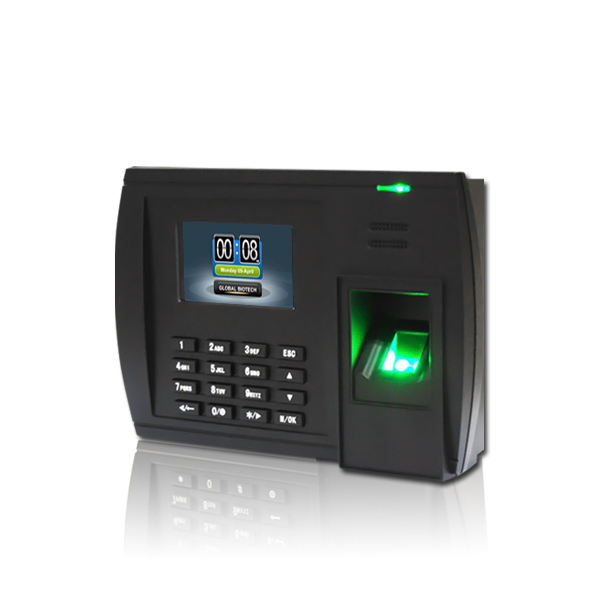

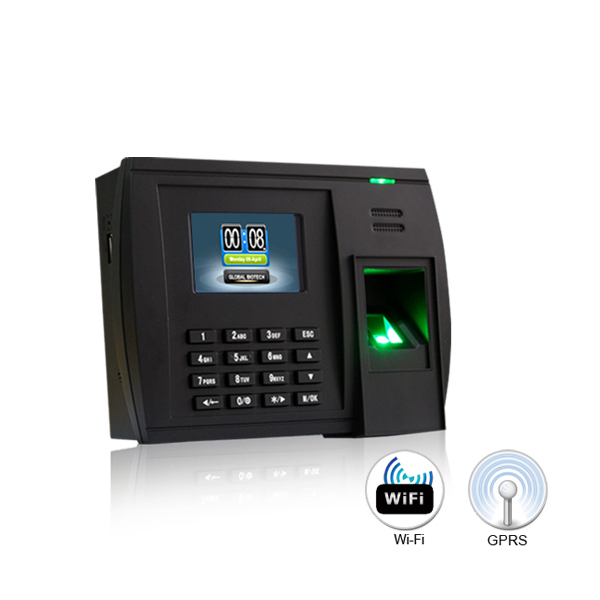

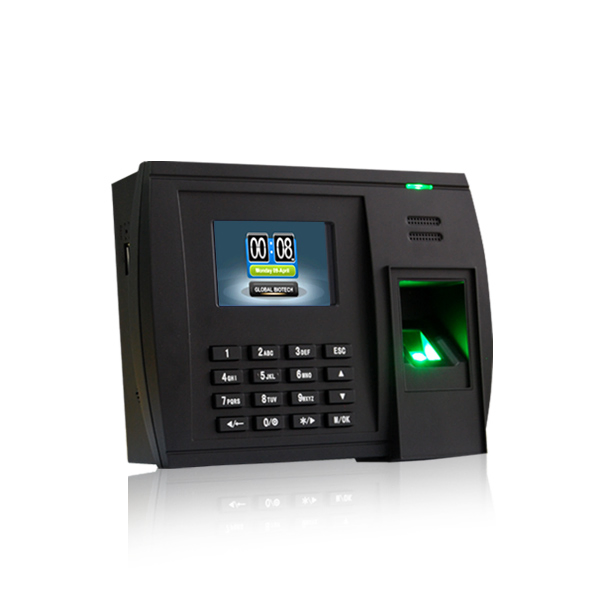

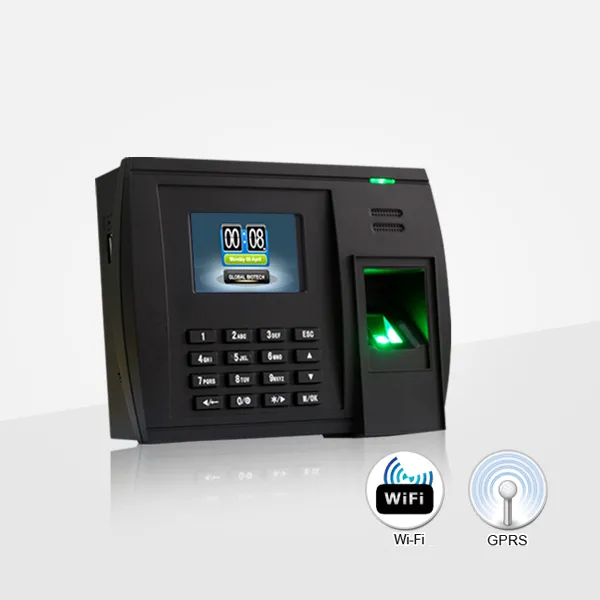

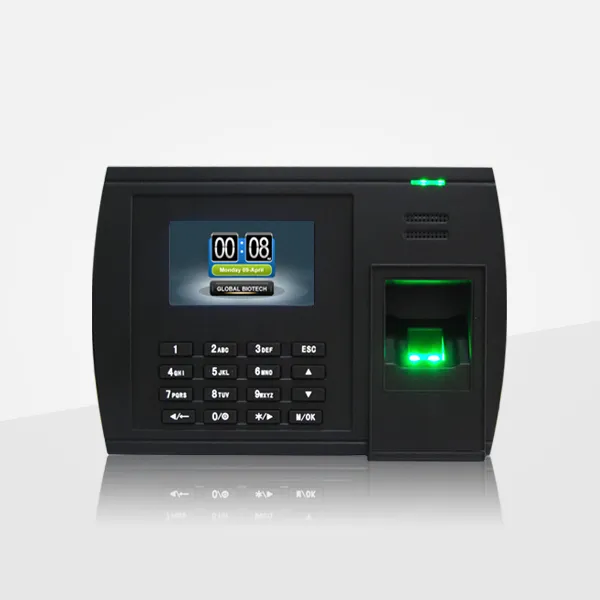

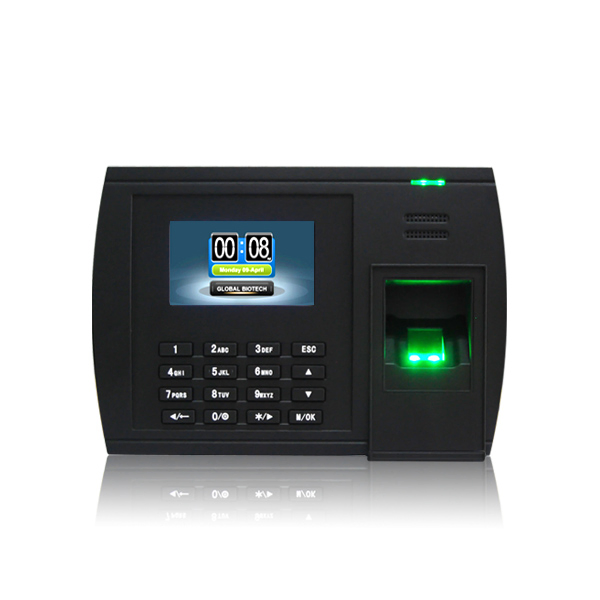

(Model 5000T-C) Biometric Fingerprint Time Attendance System
Product Description
Basic Specifications
Model NO.
5000T-C
Software System
WIN7 / Web-based
Communication
TCP/IP, RS232/485, USB Host/Client
LCD Display
3" TFT High-Definition Interface
Fingerprint Capacity
3,000
Log Capacity
100,000
Wireless Options
WiFi or GPRS Function
Verification Speed
≤0.5s (1:1)
Attendance Status
Check in/out, Break in/out, OT in/out
Certification
CE, FCC, RoHS, ISO
Product Description

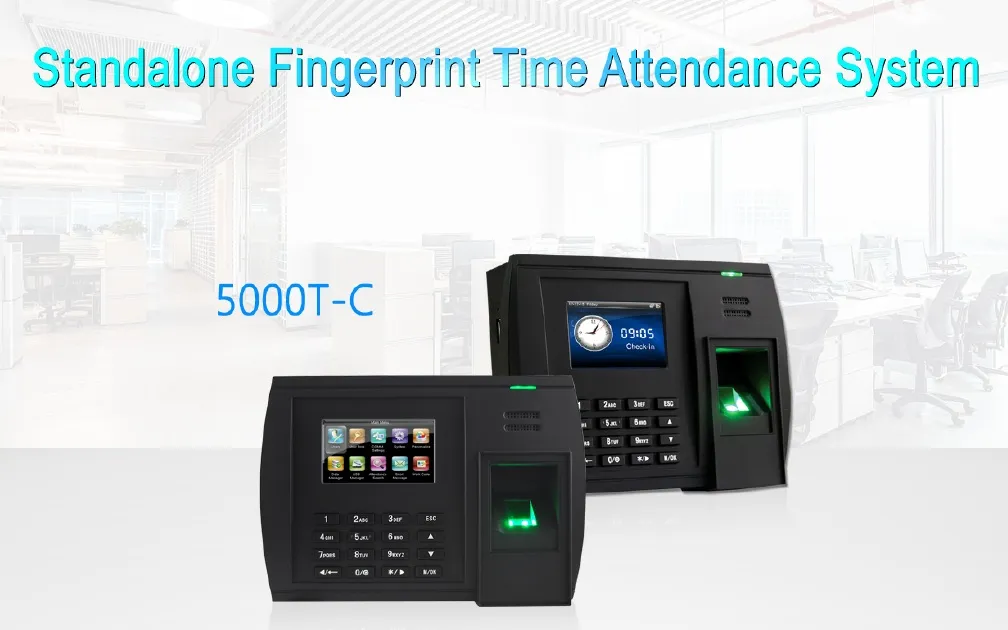

Model 5000T-C: Biometric Fingerprint Time Attendance System
A professional-grade time attendance solution featuring high-speed biometric verification and versatile wireless communication options including WiFi and GPRS.
Composite algorithm system with high speed operating
Embedded LINUX system, easy to integrate
Standalone or network environment compatible
Embedded multi-language interface (40+ languages)
3" color screen for user-friendly operation
Supports 24 hours continuous operation
Technical Specifications
| Category | Details |
|---|---|
| Display/Speaker | 3" TFT High-definition Graphical Interface; Voice Prompt |
| Language | English, French, Spanish, Arabic, etc. (More than 40 languages) |
| Environment | Temp: 0°C ~ 45°C; Humidity: 20% ~ 80% |
| Accuracy | FRR: ≤0.01%; FAR: ≤0.0001% |
| Power Supply | 110/220VAC ~ 12VDC |

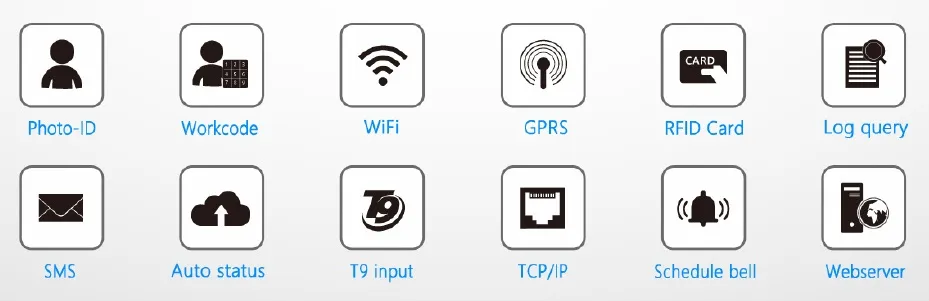

| Standard Functions | SMS, Work code, Scheduled bell, T9 input, Web-server, Auto status, DST, Photo ID, ADMS |
| Custom Functions | 9-PIN ID, Printer output, External bell, ID/Mifare reader, Wifi, GPRS |
| Dimensions | 205(L)*145(W)*53(H)mm |
Ordering Information
| Model Code | Configuration Description |
|---|---|
| 5000T-C | Standard Fingerprint Time Attendance |
| 5000T-C+ID | Built-in 125KHZ ID card reader |
| 5000T-C+MF | Built-in 13.56MHZ MF card reader |
| 5000T-C+Wifi(GPRS) | With Wifi or GPRS function |
| 5000T-C+ID+Wifi(GPRS) | Wifi/GPRS function + ID reader |

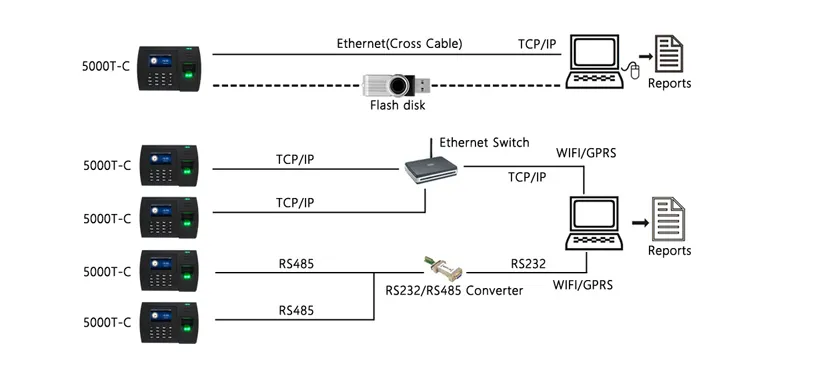

Connection Diagram & Gallery
Frequently Asked Questions
How many fingerprints can the 5000T-C store?
The system has a standard capacity of 3,000 fingerprints and can store up to 100,000 transaction logs.
Does this device support wireless connection?
Yes, the 5000T-C supports optional WiFi and GPRS communication for flexible network deployment.
What type of display does the device use?
It features a 3-inch TFT high-definition graphical interface that provides clear and intuitive navigation.

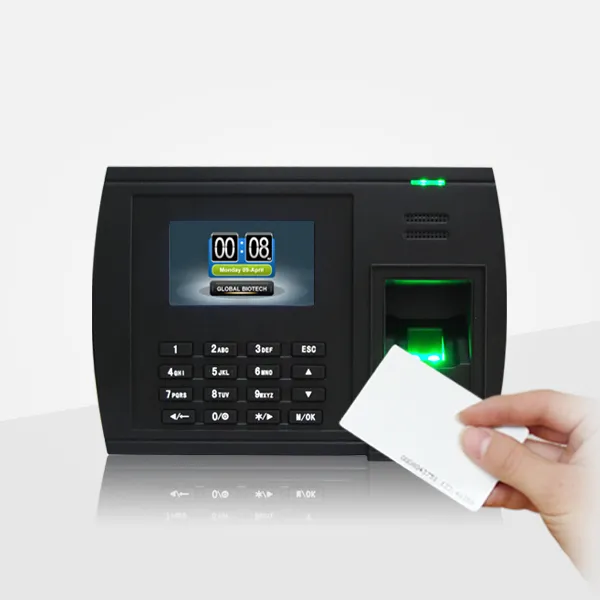

Can I use RFID cards with this biometric system?
Yes, there are customizable options to include either a 125KHZ ID card reader or a 13.56MHZ Mifare card reader.
What languages are supported by the interface?
The system supports over 40 languages, including English, Spanish, French, Arabic, and more.

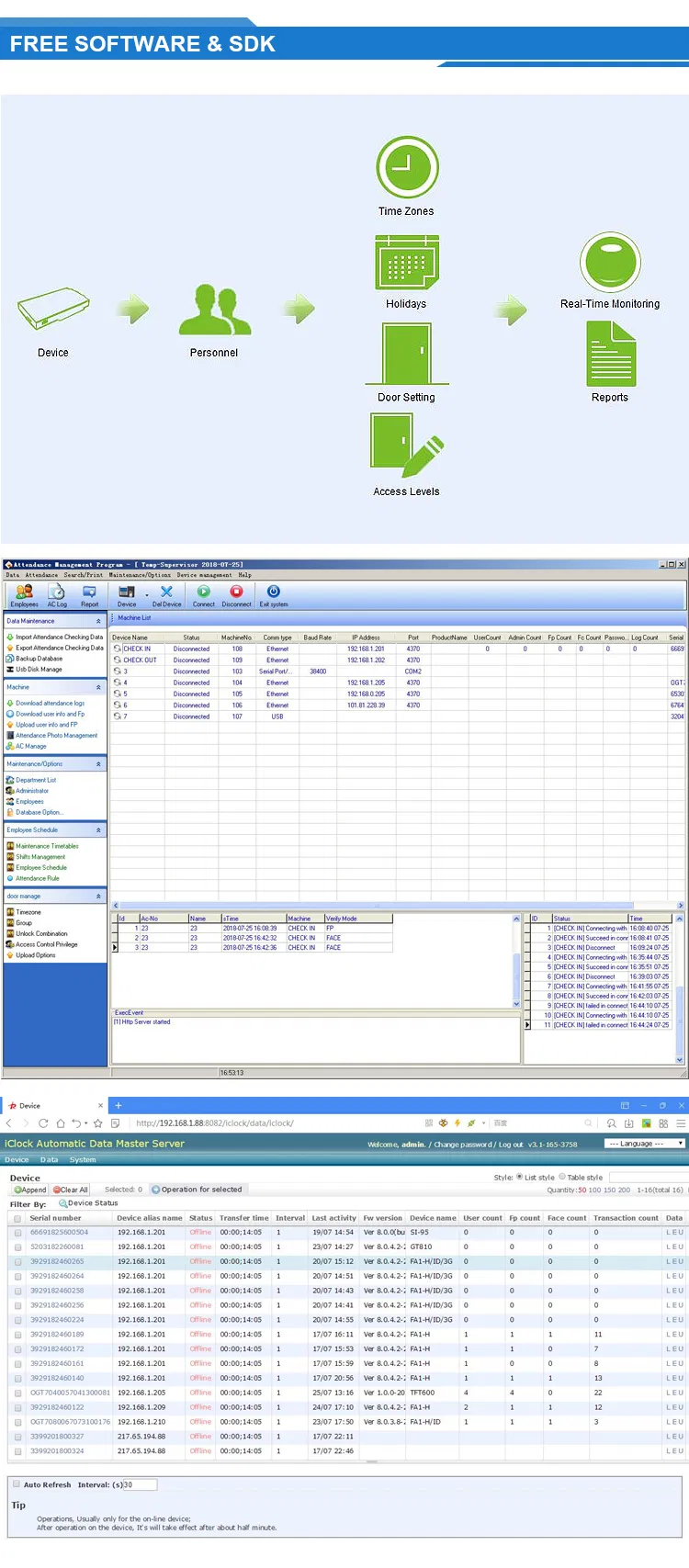

Is there a software provided for data management?
Yes, the device comes with free management software and an SDK for integration into various systems.
