Product Description

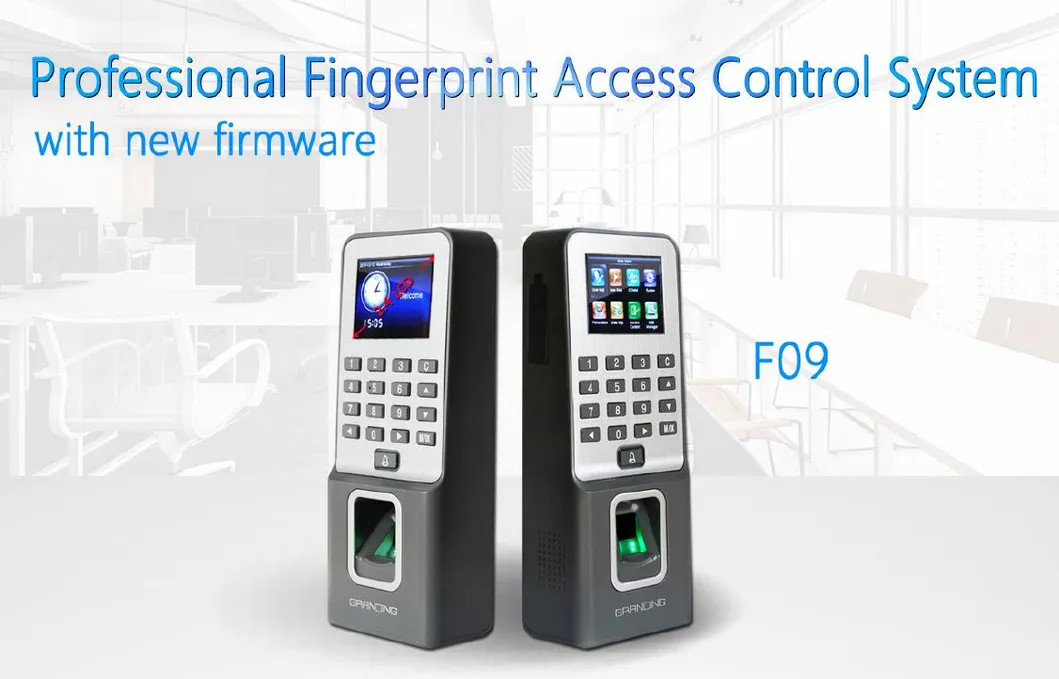

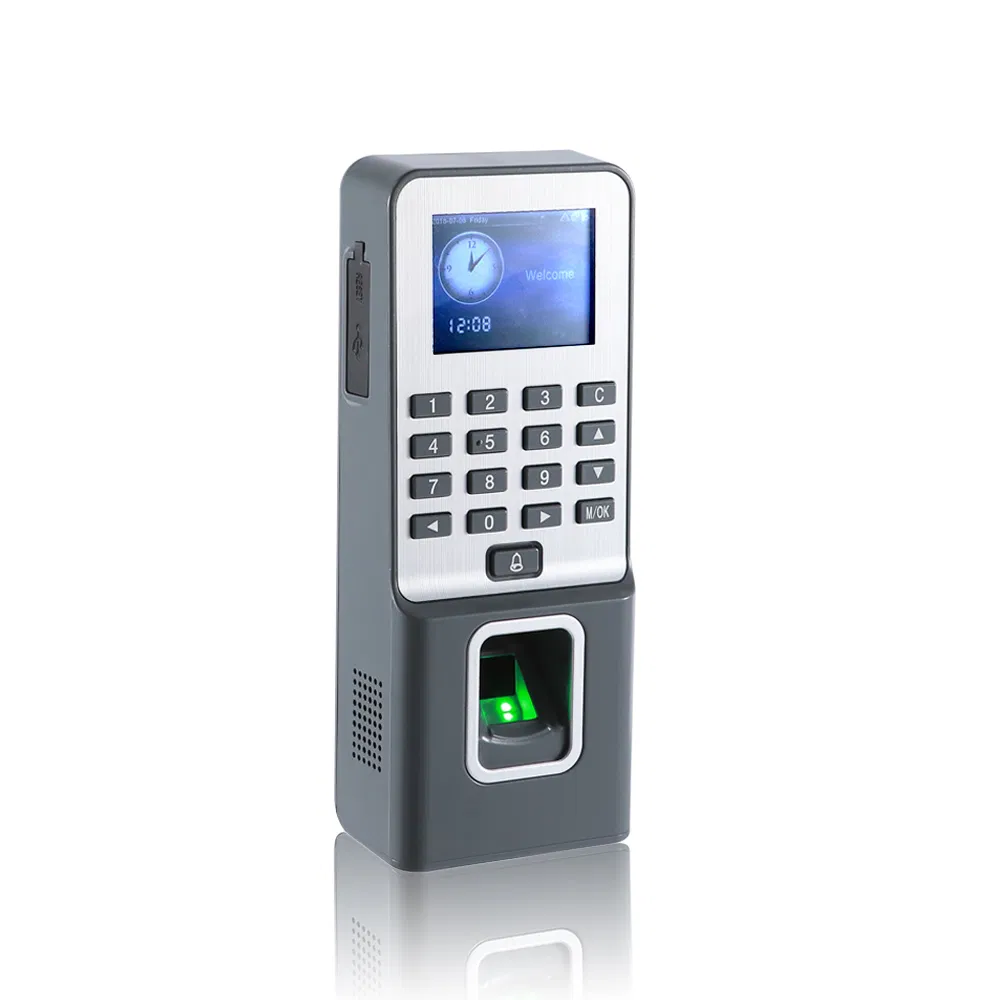

2.4" TFT LCD Color Screen WEB Based RFID Card and Biometric Fingerprint Access Control System
Model: F09

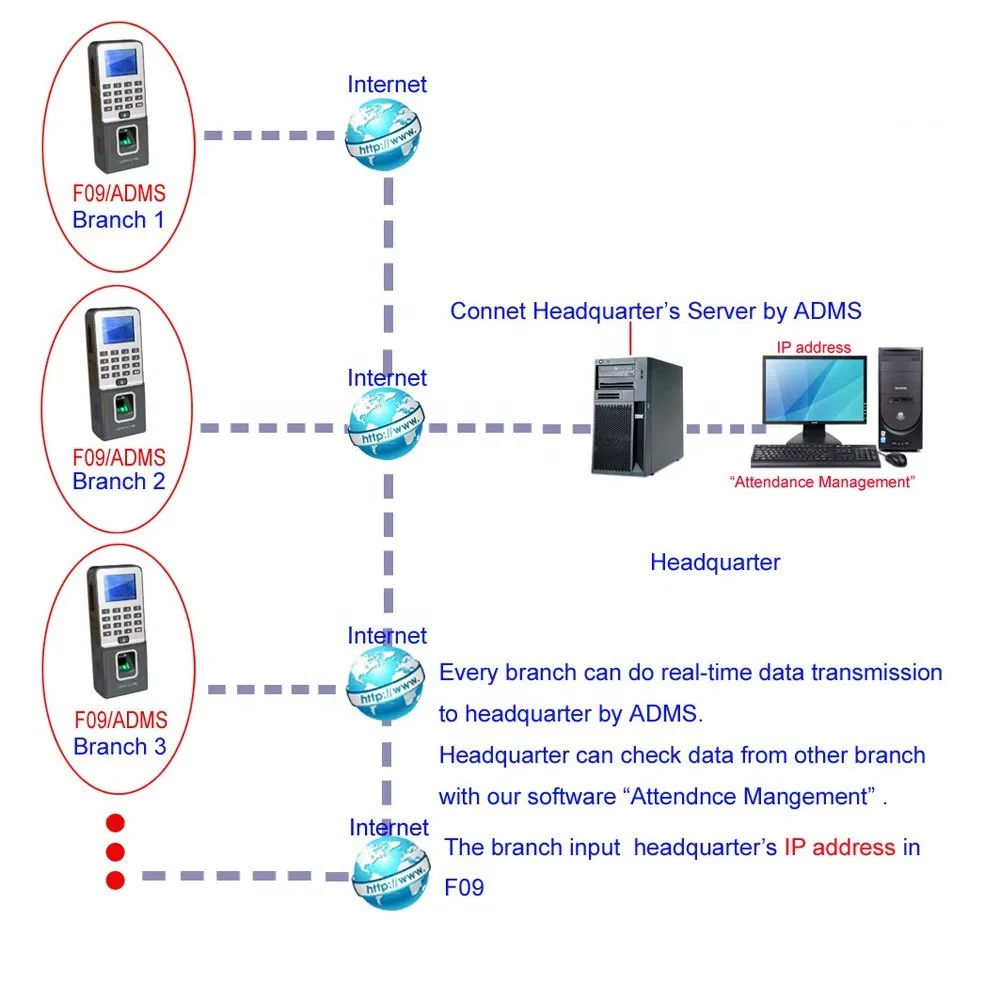

The F09 is a 13.56MHz Card Reader Time and Attendance System equipped with TCP/IP and USB ports. Featuring ADMS functions and a 2.4" TFT LCD color screen, it supports both network and standalone modes. This device simplifies communication with PCs and includes a USB flash drive for offline data management. A higher-speed CPU and the latest fingerprint algorithm ensure a comfortable and efficient user experience.
Key Features
- Latest algorithm version with high-speed operating performance.
- Supports both standalone and network environments.
- Wired doorbell connection supported.

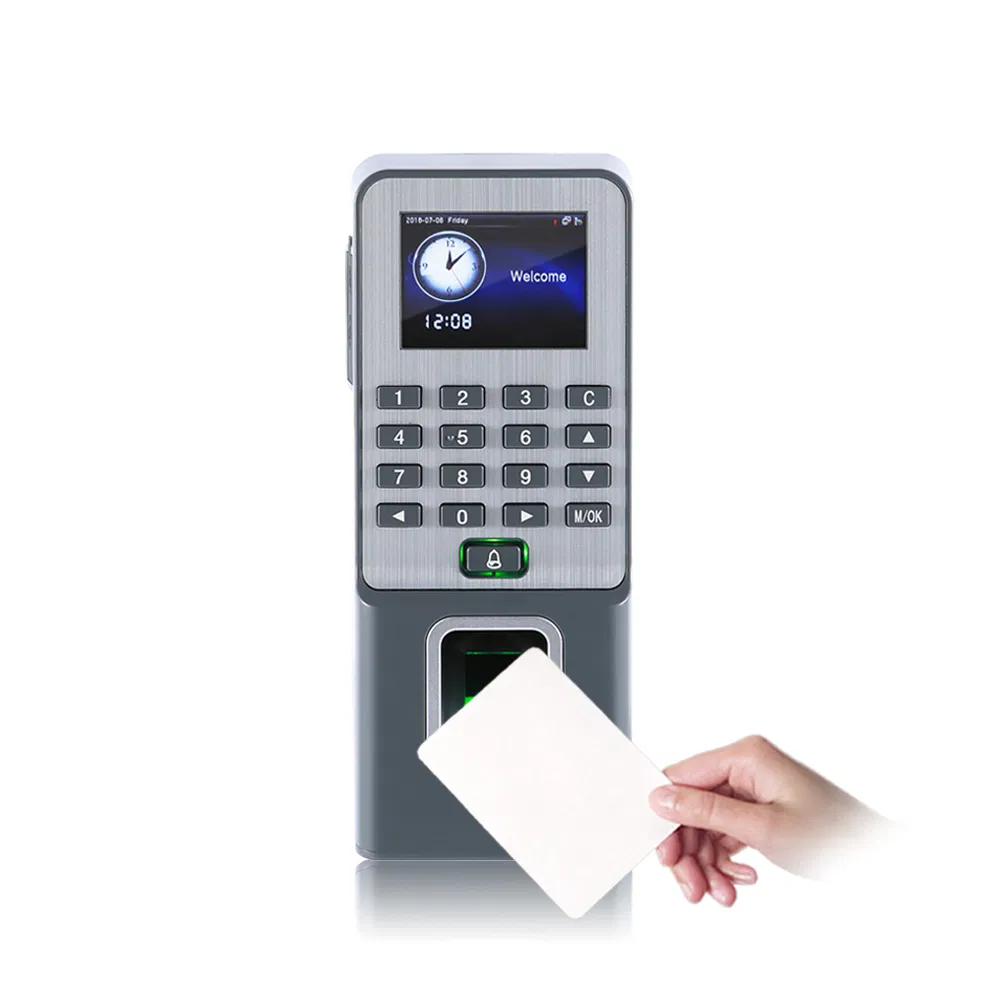

- Support for ID cards (Mifare/HID optional).
- Connectable with slave card readers for Anti-passback functionality.
- Engineered for 24 hours continuous operation.
- Professional management software supports real-time logs transfer.
Product Parameters
| Model | F09 |
| LCD Display | 2.4'' TFT LCD color screen |
| Speaker | Voice prompt (multi-language selectable) |
| Language | English, French, Spanish, Arabic, Turkish, Portuguese, etc. (40+ languages) |
| Capacity | Fingerprint: 4,000; Logs: 100,000 |
| Verification Speed | ≤0.5s (1:1) |
| Identification Speed | ≤1s (1:N) |
| Attendance Status | Check in/out, Break in/out, Overtime in/out |

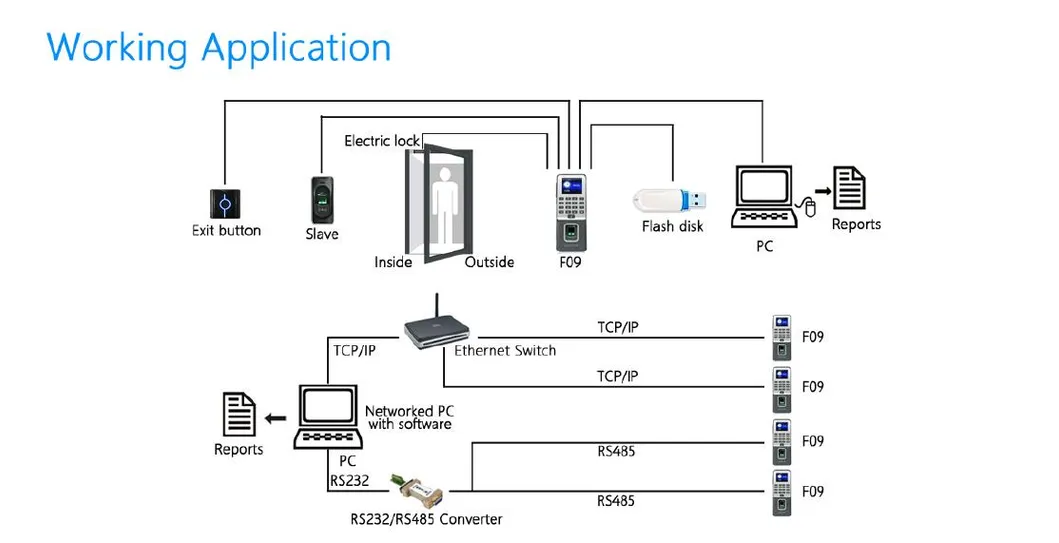

| Communications | TCP/IP, RS232/485, USB Host, Wiegand in/out |
| Power Supply | 110/220VAC-12VDC |
| Environment | Temp: 0 ~ 45°C; Humidity: 20% ~ 80% |

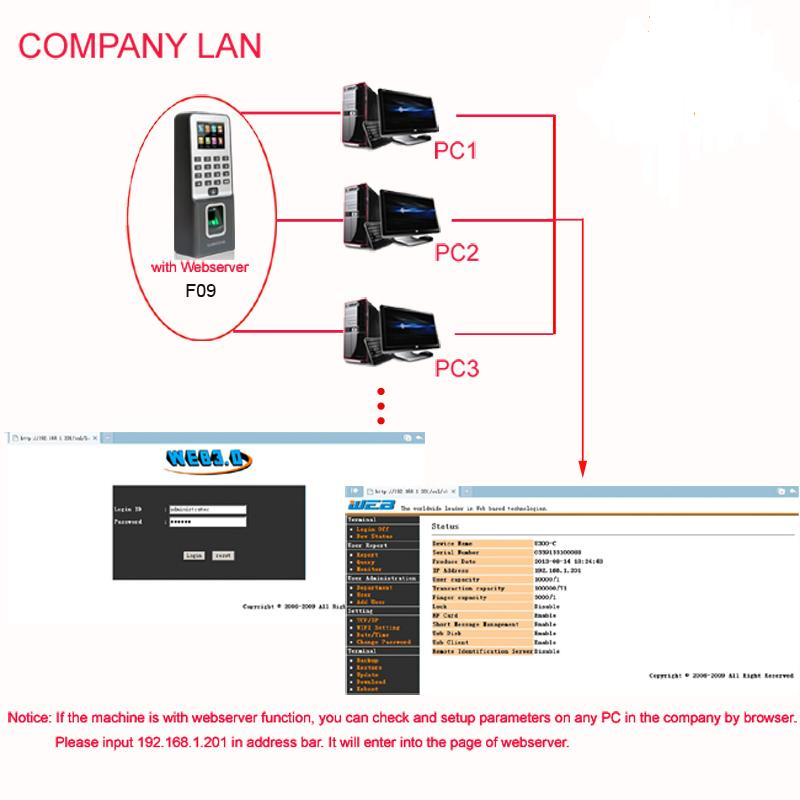

| Advanced Functions | Professional access control, Relay, 50 time zones, Anti-pass back, Webserver, ADMS |

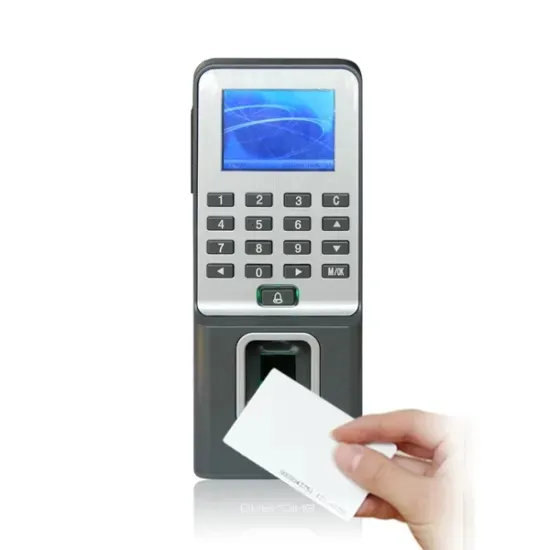

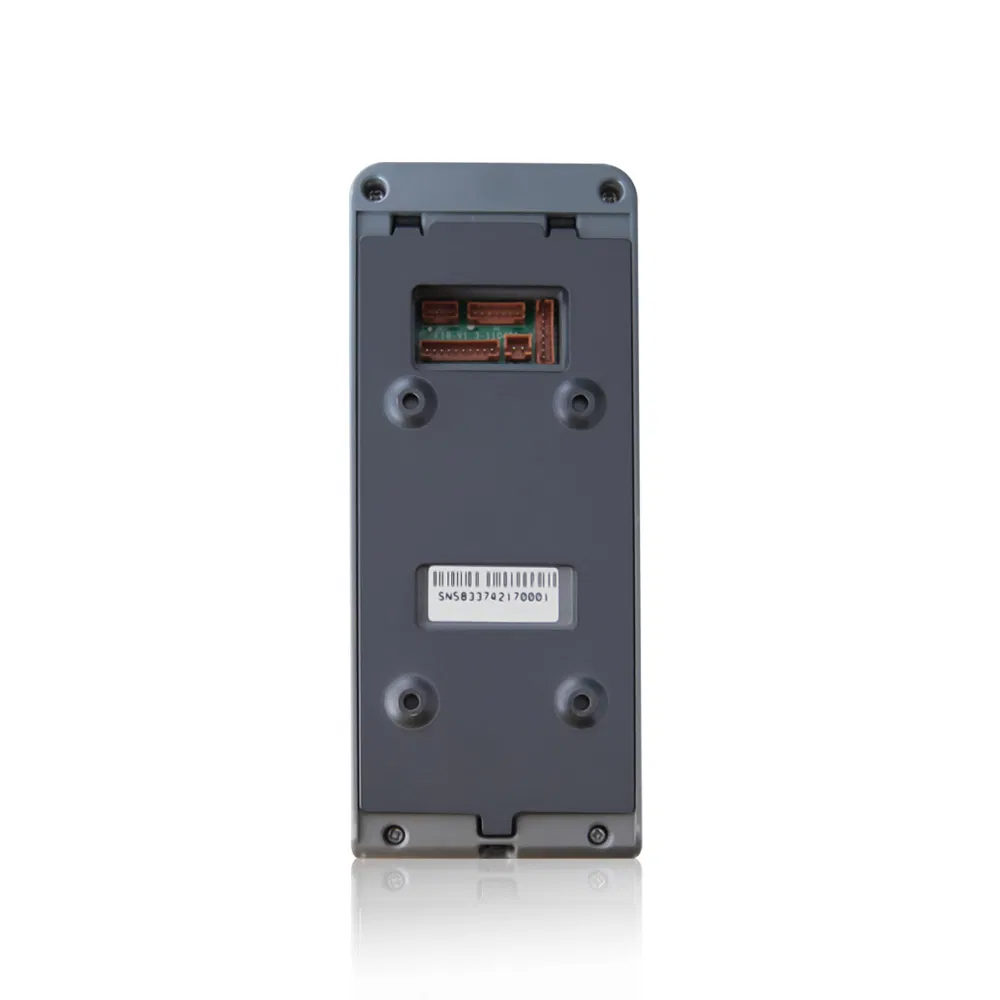

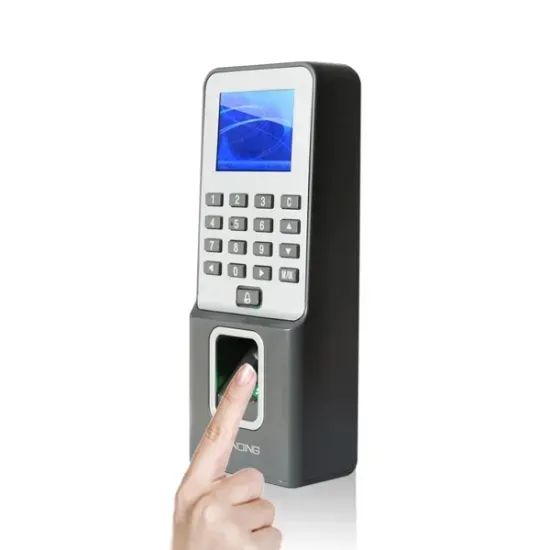

Detailed Photos
About Our Technology
We are a global Biometrics & RFID products and service provider driven by a specialized team. With a core focus on biometric technology and integrated solutions, we believe in being a partner to our clients, not just a supplier. Our goal is to create high-quality products that ensure security and efficiency.
Our specialized R&D team and efficient logistics ensure that we offer the latest technology to customers worldwide. High quality, reasonable pricing, and prompt service are the pillars that allow us to create business opportunities and bring flexibility to end users.
