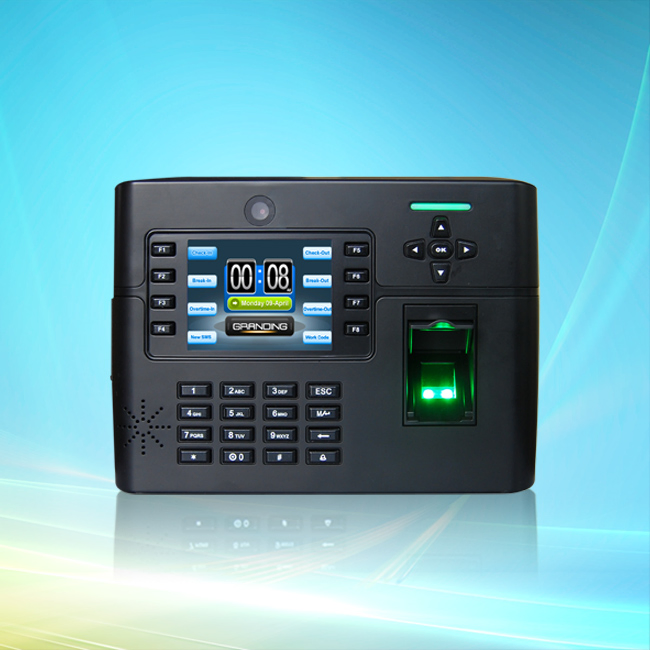

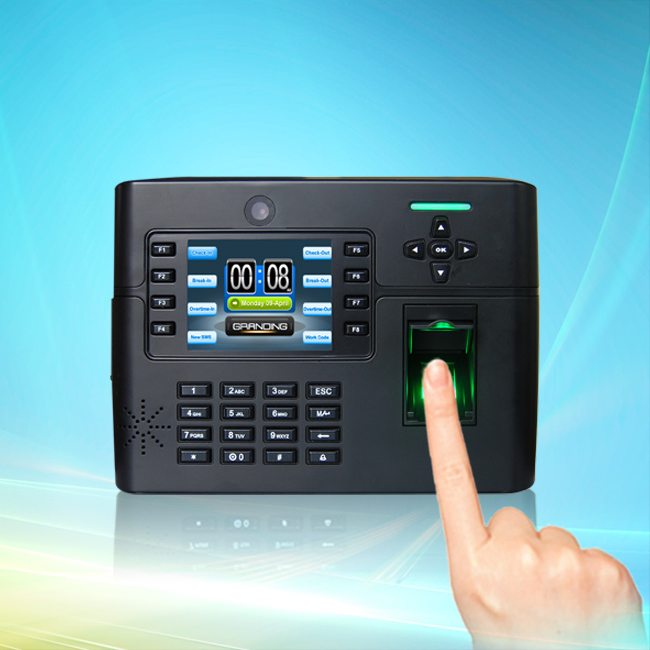

(TFT900-H) Big Capacity Built-in Battery Internal Camera Biometric Fingerprint Door Access Control System
Product Description
Basic Information
Product Overview

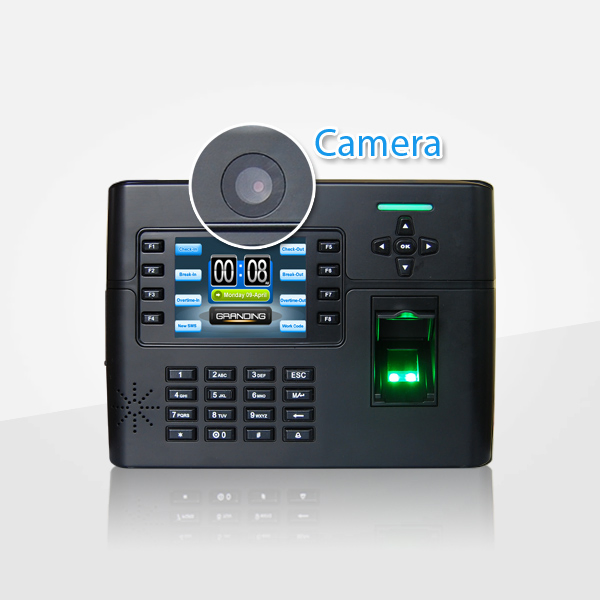

50,000 Fingers biometric Fingerprint Access Control system with Li battery and Internal Camera.
The TFT900-H is a professional-grade fingerprint access control and time attendance terminal. Equipped with a high-speed processor and superior hardware, it delivers exceptional stability and performance. Designed for versatile security, it integrates seamlessly with third-party systems such as electric locks, door sensors, and exit buttons. With Wiegand input/output interfaces, it supports Master & Slave solutions and anti-passback functions to maximize security levels. It is an ideal solution for factories, banks, schools, and other high-security environments.
Key Features
Technical Specifications
| Parameter | Details |
|---|---|
| Model | TFT900-H |
| LCD Display | 3.5'' TFT high-definition graphical interface |

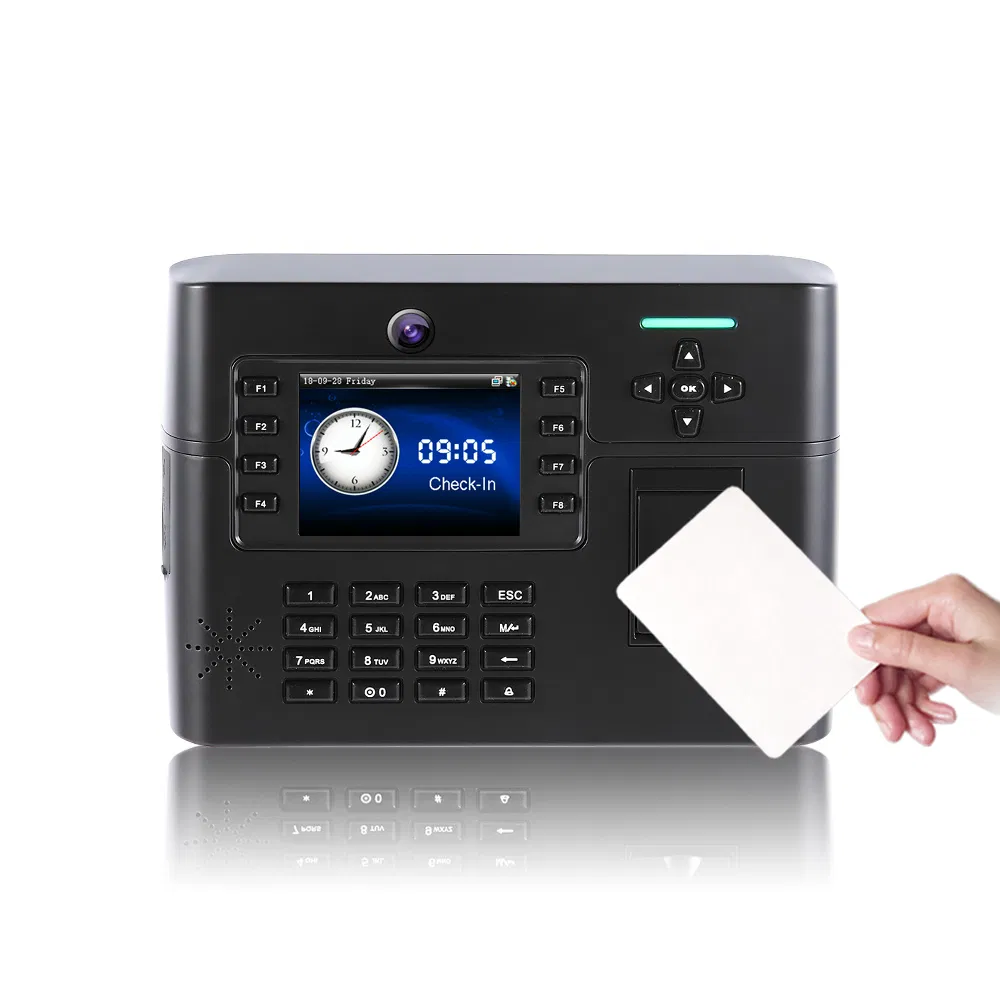

| Capacity | Fingerprint: 50,000; ID/IC Card: 10,000 (Optional); Logs: 800,000 |
| Verification Speed | 1:1 <=0.5s; Identification <=1s |
| Identification | FRR <=0.01%; FAR <=0.0001% |
| Language | English, French, Spanish, Arabic, Turkish, Portuguese, etc. (40+ languages) |

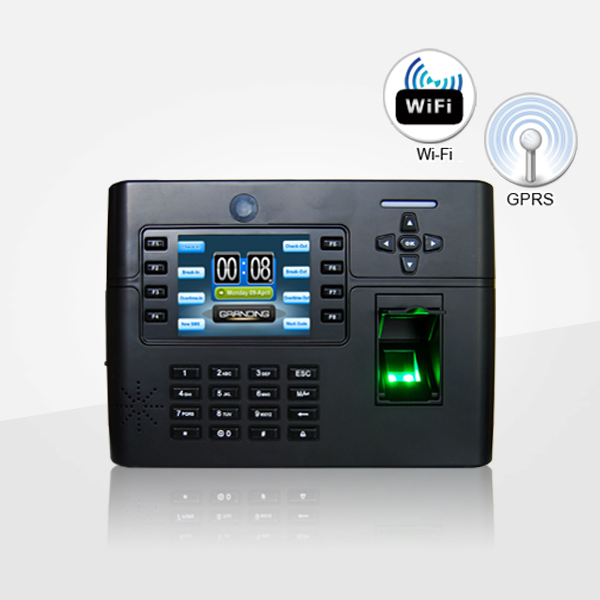

| Communication | TCP/IP, RS232/485, USB Host/Client, WiFi; Optional: GPRS, 3G |
| Access Control | 50 time zones, user grouping, professional unlocking combinations |

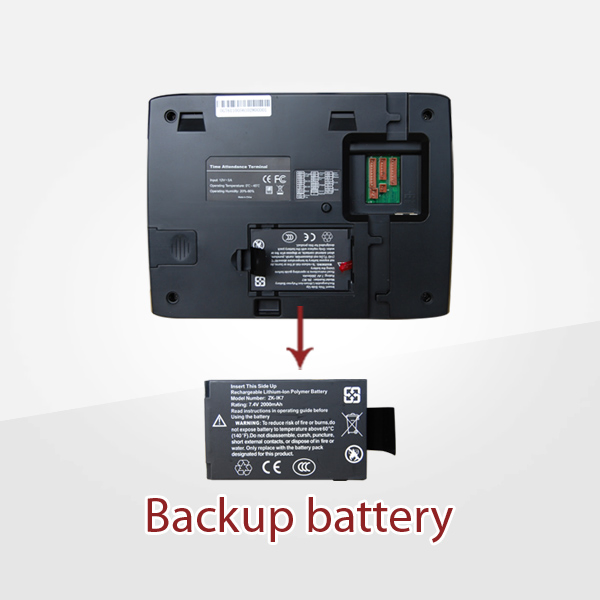

| Power Supply | 110/220 VAC - 12VDC 3A, Internal Li-battery |
| Environment | Temp: 0-45°C; Humidity: 20%-80% |
| Special Functions | Internal Camera, Adms, Webserver, Photo ID, Work Code, Anti-passback |

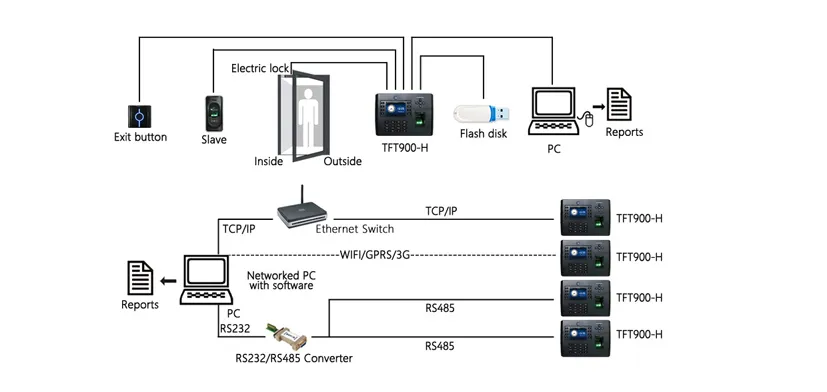

Connection Diagram

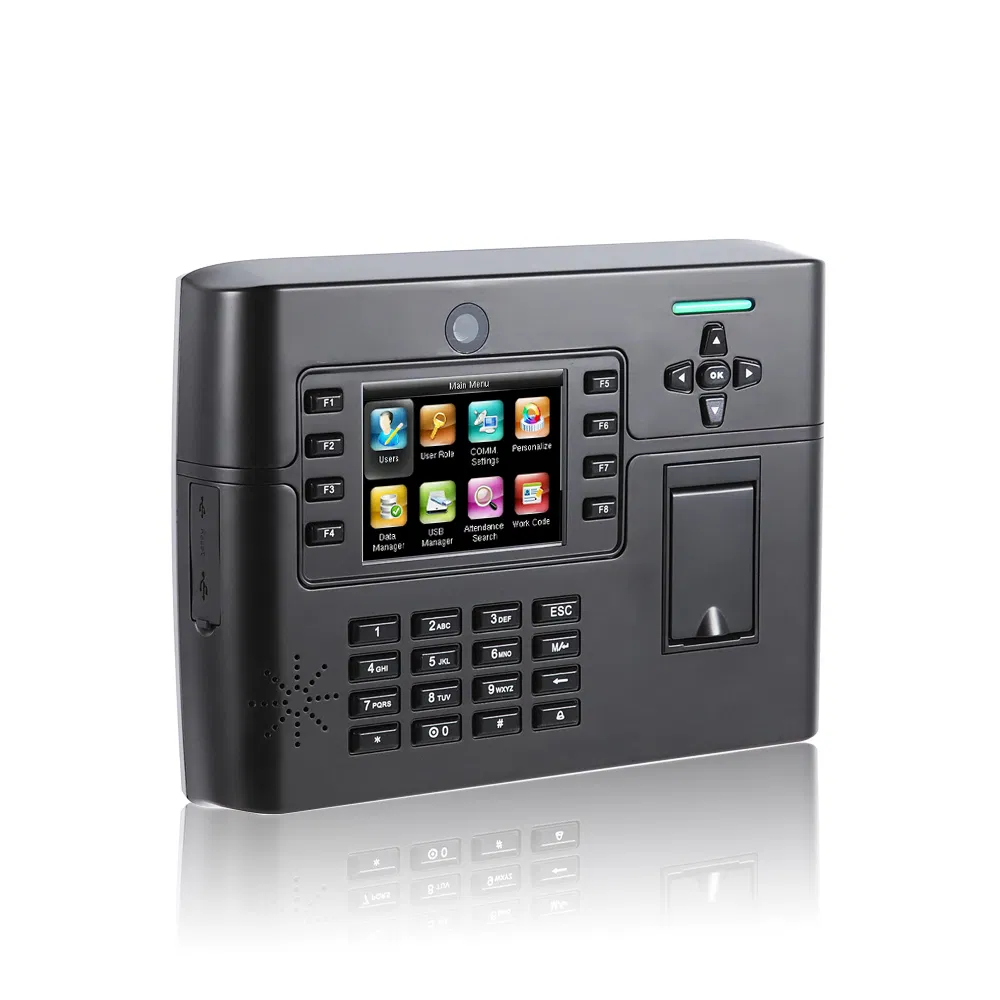

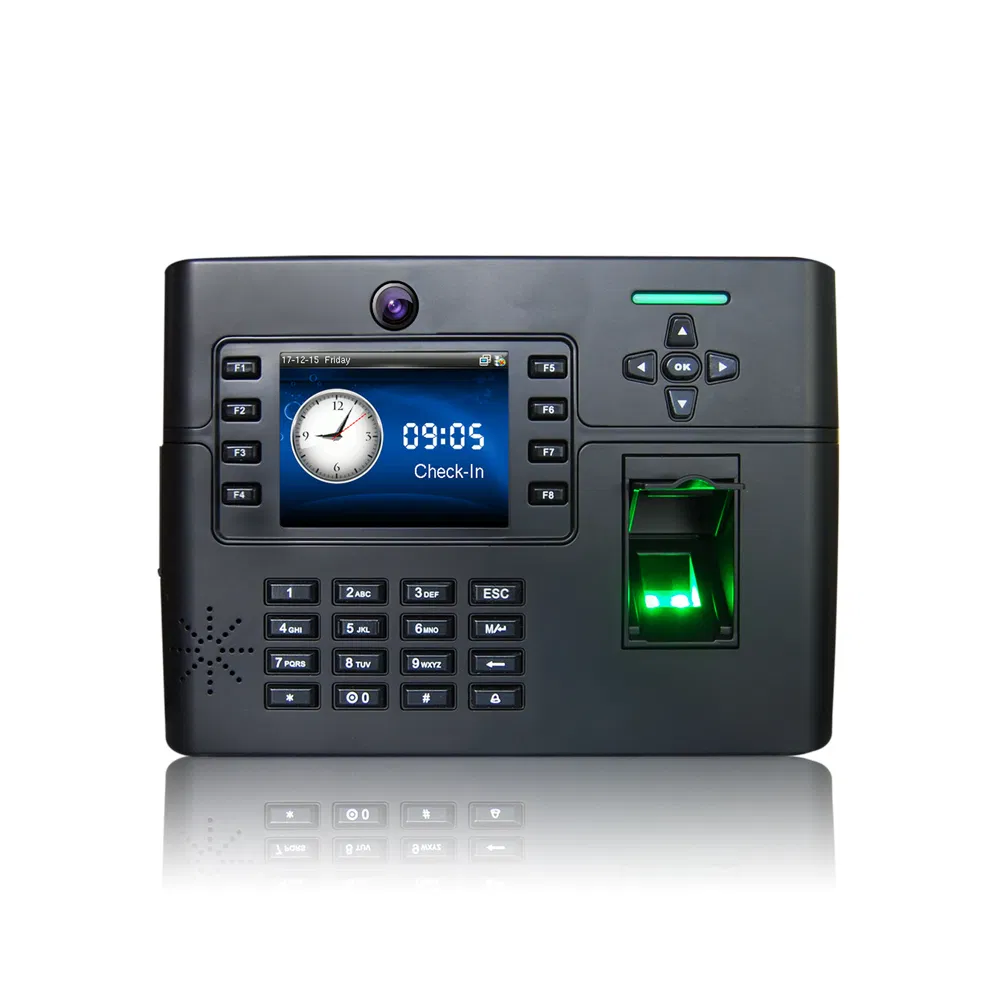

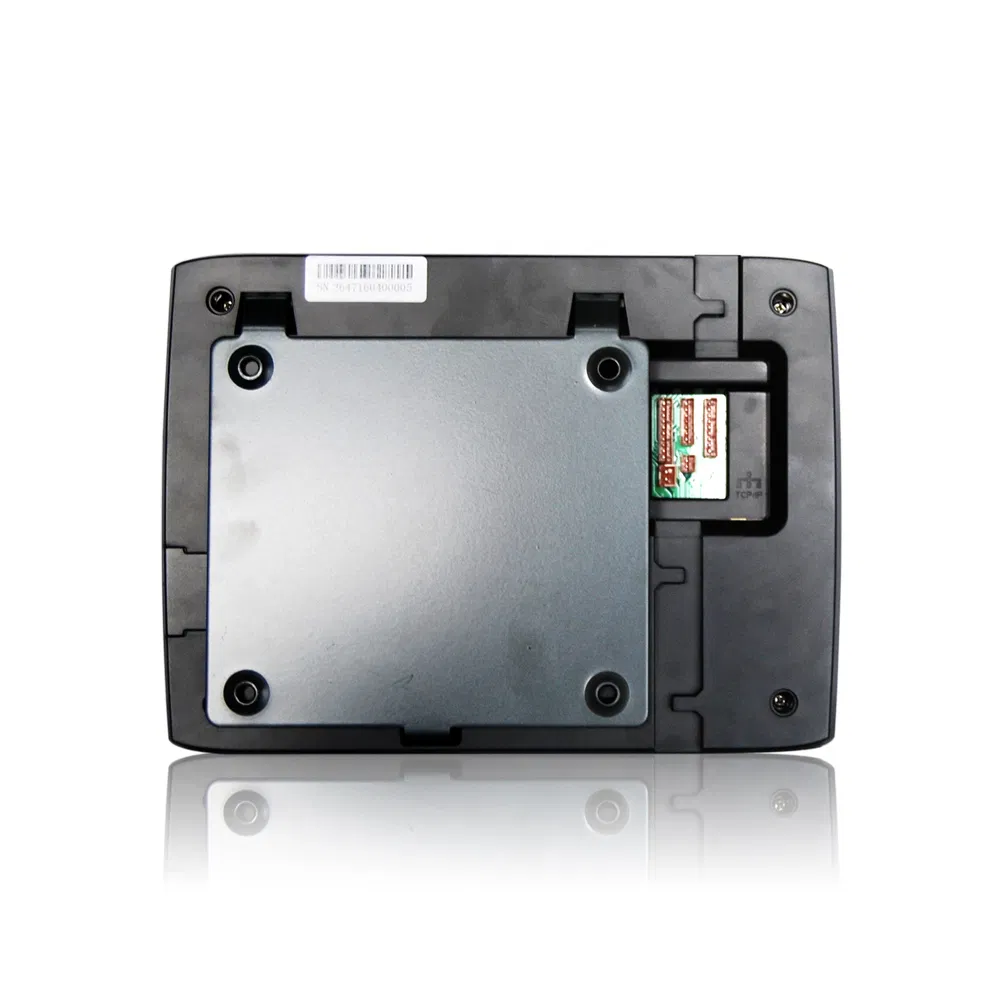

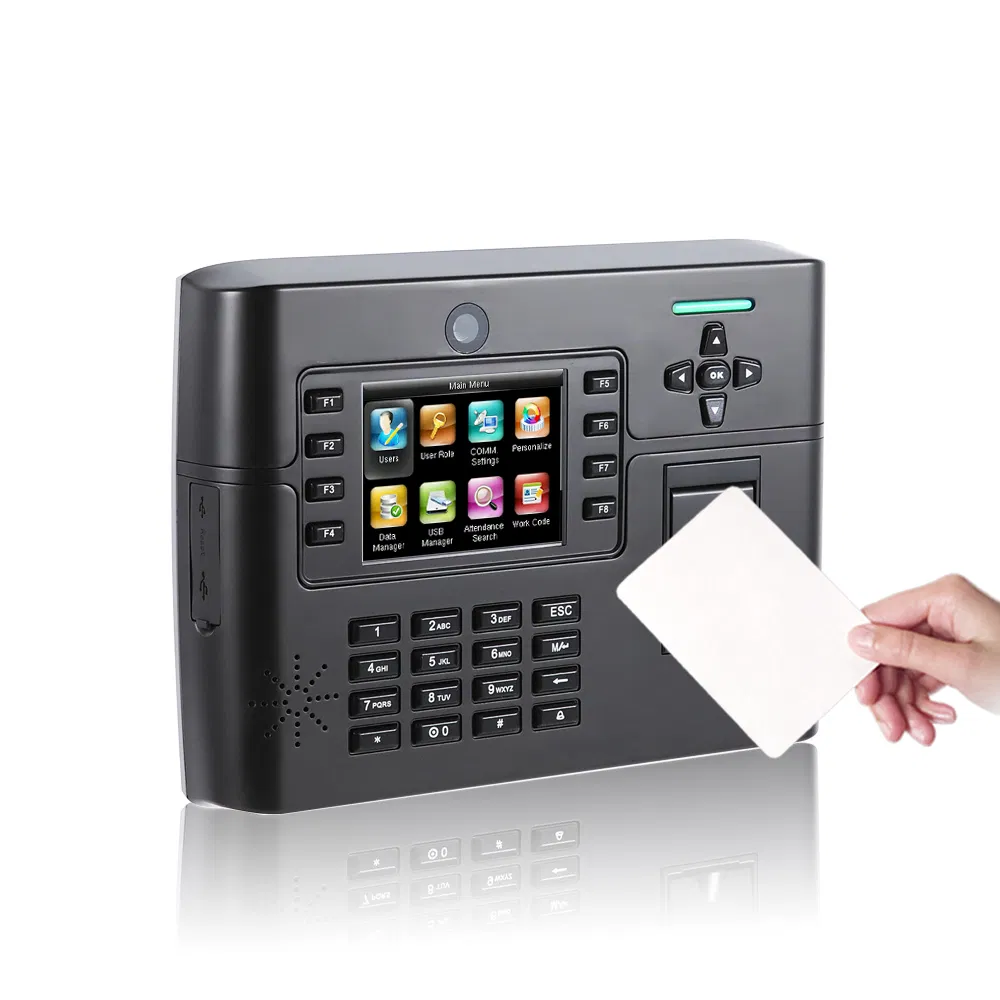

Detailed Images

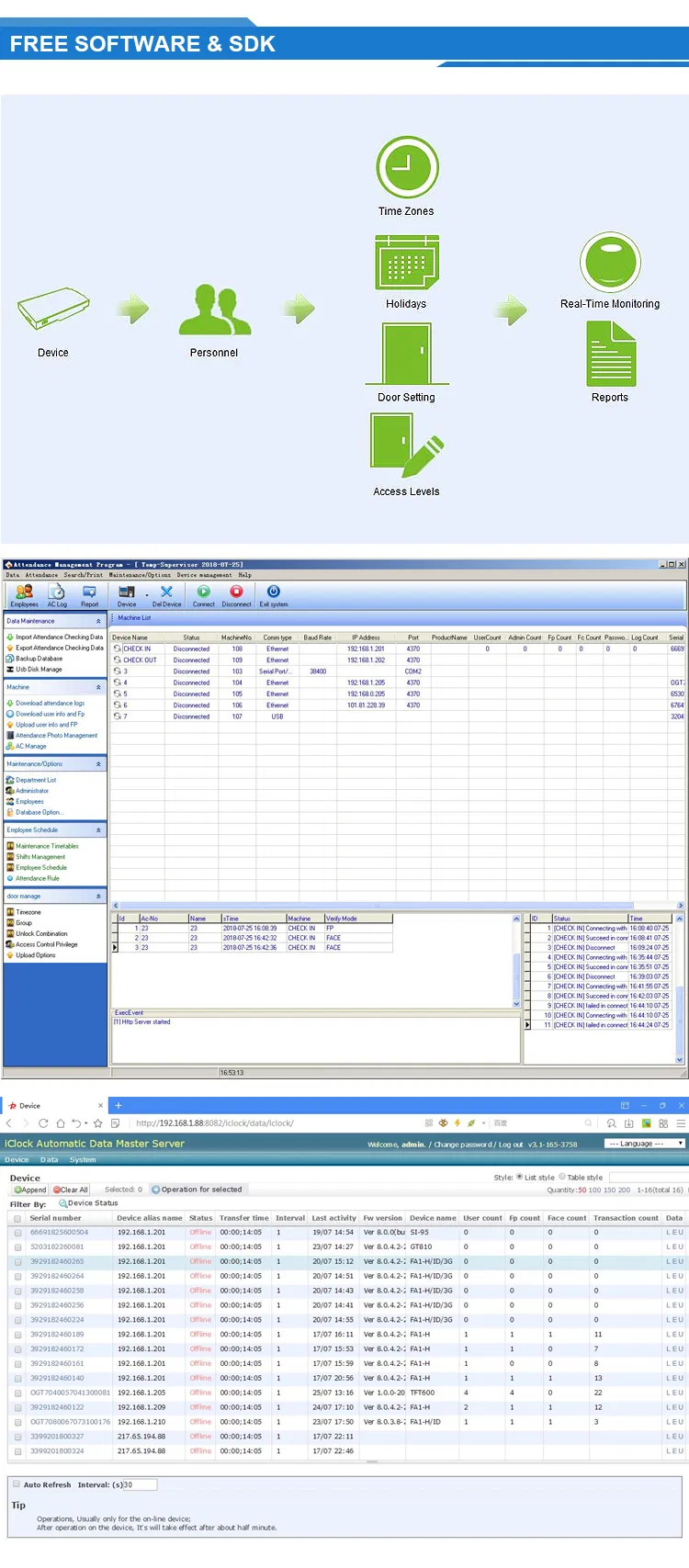

Software & SDK
We provide free management software and SDK for integration.
Payment & Shipment
Payment Terms: PayPal or West Union for sample orders; T/T for regular orders; L/C for large orders.
Shipment Way: International Express (TNT, UPS, Fedex, DHL, Aramex), International Air, or Sea shipment.
