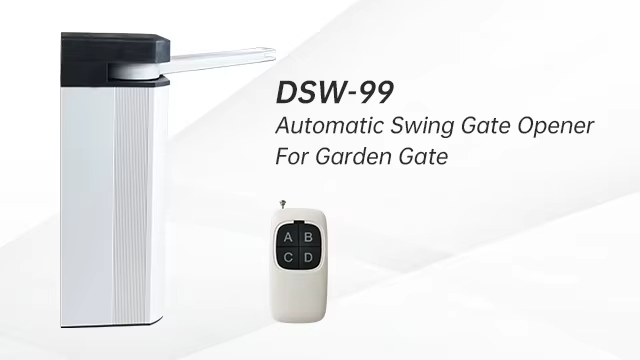

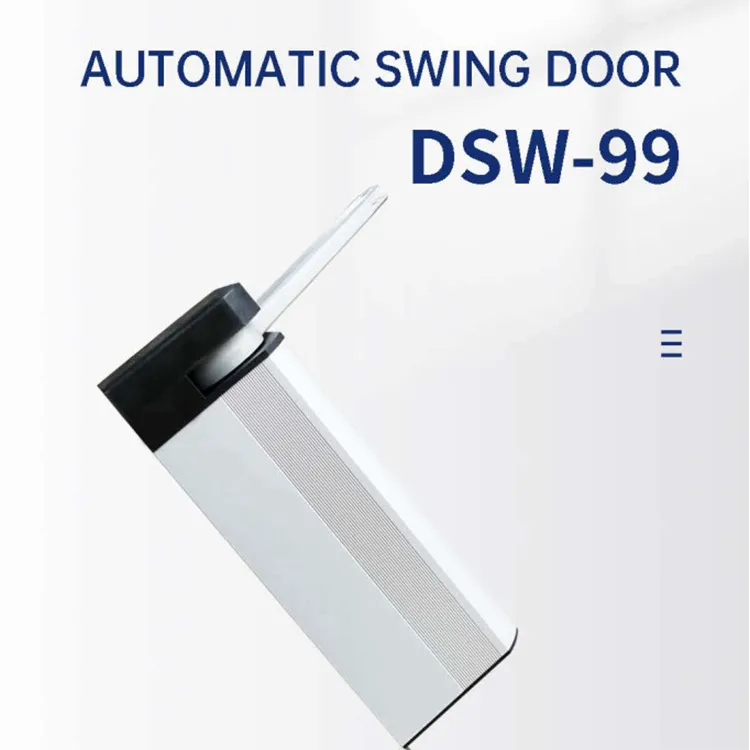

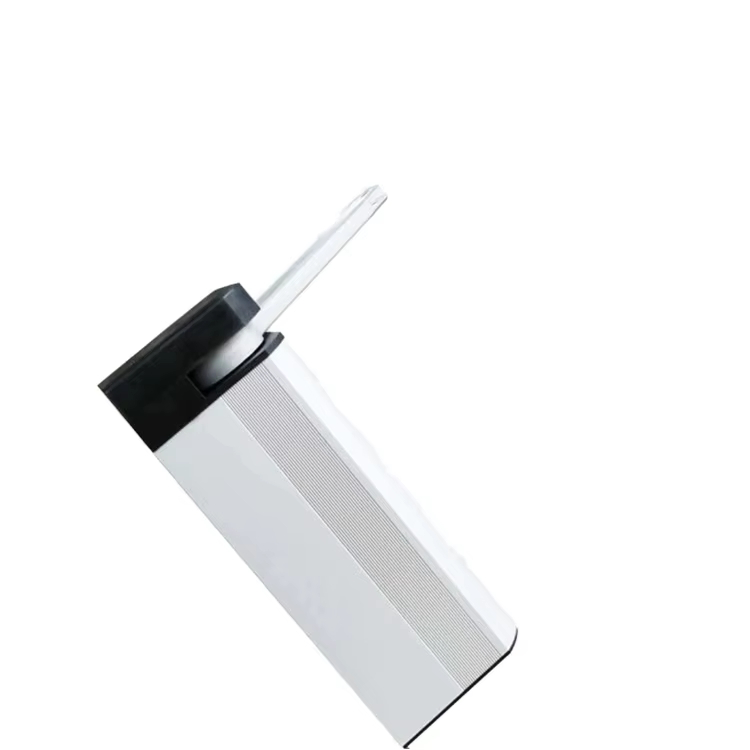

Advanced Automatic Swing Door System for Seamless Entry
Product Description
Type
Automatic Door Operator
Material
Stainless Steel + Iron
Supply Power
220VAC±10%, 50/60Hz
Power Consumption
100W(Max)(Only Motor)
Driving Motor
24V(Brushless Motor)
Opening Angle
45°-100°(Adjustable)
Opening/Closing Time
3-7s (Adjustable)
Hold-Open Time
0-60s (Adjustable)
Temperature
-20℃~45℃
Relative Humidity
<85%
Production Capacity
2000 pieces/Month

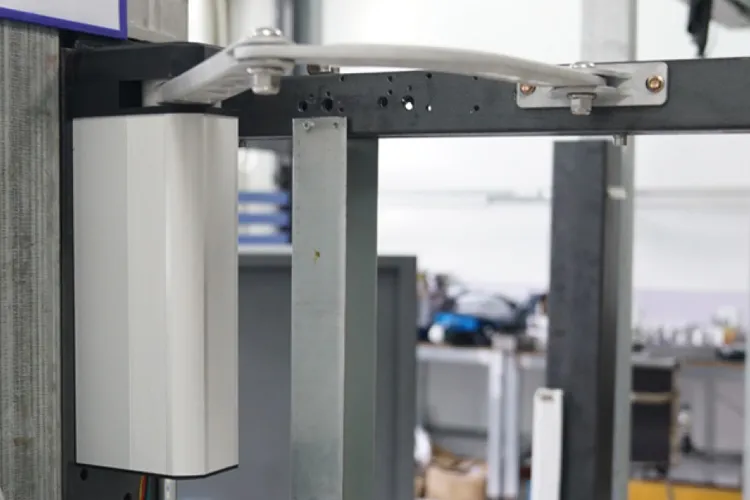

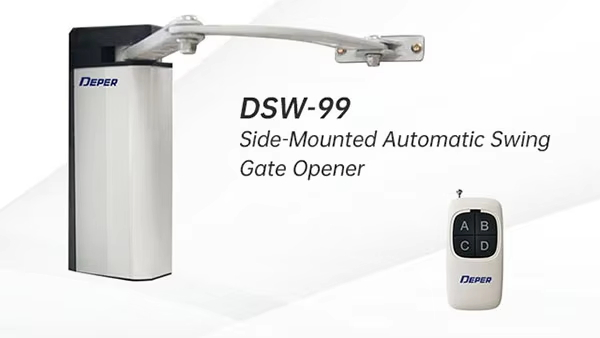

Residential & Commercial 300Kg/1.2m Gate Curved Arm Swing Gate Motor Opener Smart Automatic Swing Door Closer
🛠️

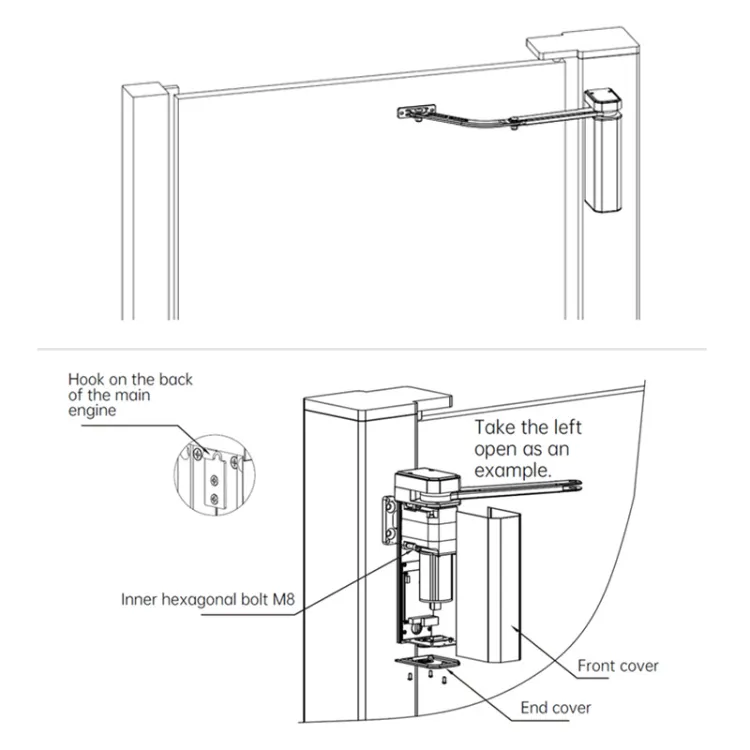

Convenient Installation
Fix the base plate first, then hang the main engine to free your hands for other operations.
🔇
Lower Noise
Latest gearbox technology ensures stable operation with noise levels less than 50dB.
🛡️

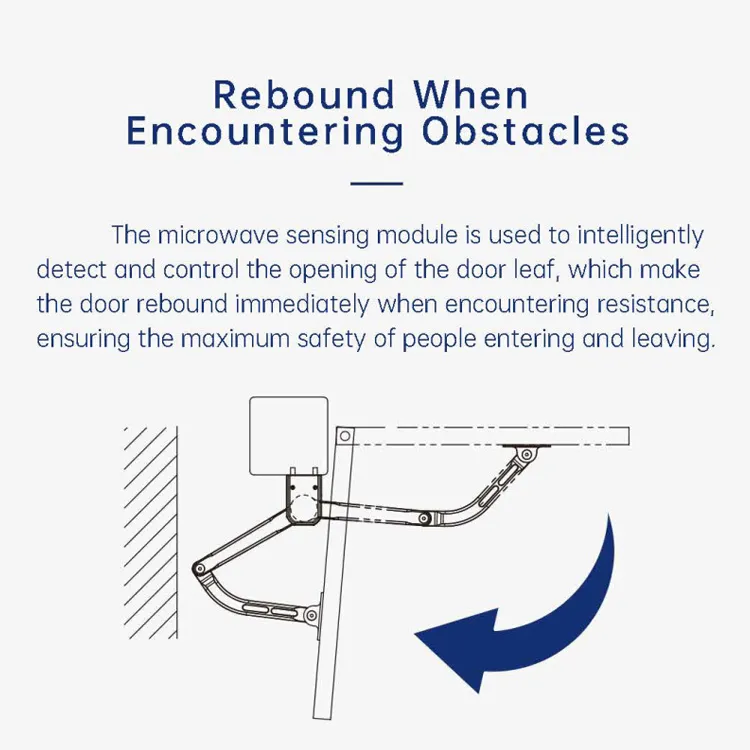

Safety Rebound
Microwave sensing module detects obstacles and rebounds immediately to ensure maximum safety.
🎯
Adaptive Positioning
Intelligent adaptive positioning simplifies the setup compared to traditional manual settings.
| Parameter | Specification |
|---|---|
| Supply power | 220VAC±10%, 50/60Hz |
| Power consumption | 100W(max) (excluding external device) |
| Drive unit | 24V DC motor |
| Anti-extrusion device | Standard |
| Opening angle | 45°~100° adjustable |
| Opening / Closing time | 3~7S adjustable |
| Hole open time | 0~60S adjustable |
| Ambient temperature | -20ºC~45ºC |
| Relative humidity | ≤85% |
Our systems have obtained "GF" EU certification and "AVC" certification. We are recognized as a National High-tech Enterprise and hold ISO9001:2015, ISO14001, and OHSAS18001 management system certifications.
- Inquiries will be replied to within 12 hours.
- Strong R&D team available to meet custom design requirements.
- Fast delivery: Sample (1-3 days), Bulk orders (3-5 days).
- OEM/ODM services including custom packaging and logo design.
- Market protection and strict privacy for customer information.

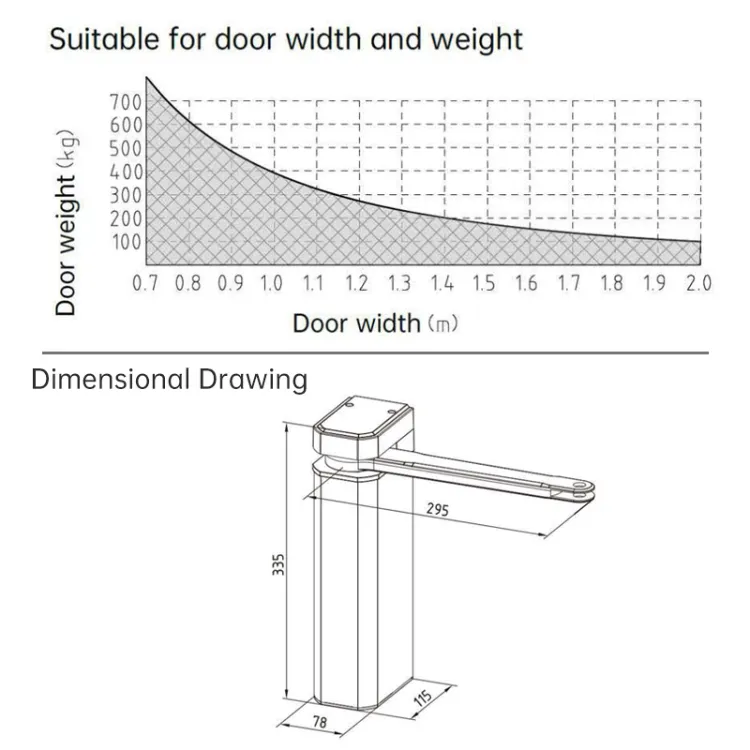

What is the maximum weight capacity for this gate operator?
This swing gate motor is designed to handle residential and commercial gates up to 300Kg with a width of 1.2m.
Is the opening speed adjustable?
Yes, the opening and closing time can be adjusted between 3 to 7 seconds to suit your specific needs.
Does the system work in extreme temperatures?
The operator is built to function reliably in ambient temperatures ranging from -20ºC to 45ºC.
What safety mechanisms are in place?
The system includes a standard anti-extrusion device and a microwave sensing module that causes the door to rebound immediately upon encountering an obstacle.
Can I adjust how long the door stays open?
Yes, the hold-open time is fully adjustable from 0 to 60 seconds.
What kind of motor does this unit use?
It utilizes a high-quality 24V Brushless DC motor for stable operation and long service life.
