Advanced Automatic Sliding Door System for Seamless Entry
Product Description
Basic Specifications
Model NO.
DSL200L
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Security
Color
Silver
Certification
ISO9001, CE, SGS
Position
Interior
Surface Finishing
Finished
Power Supply
AC 220V, 50/60Hz
Power Consumption
65W
Sliding Noise
<55dB
Production Capacity
200 Sets Per Week
Product Description
European Type 200L 150kg Automatic Sliding Door Operator Small Motor Automatic Door Driver

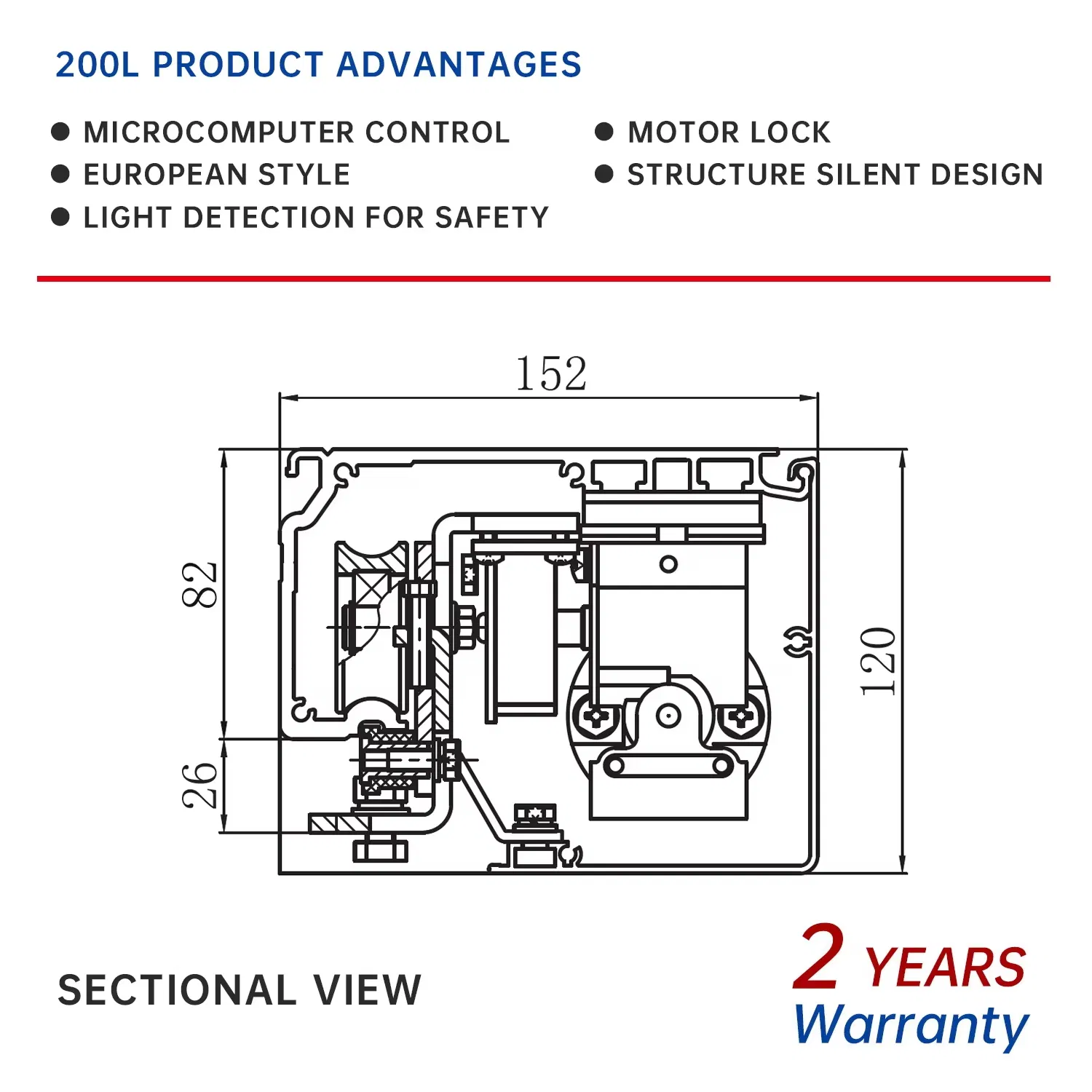

⭐ Product Advantages
The 200L features a built-in motor lock, eliminating the need for additional electric locks. In power-off scenarios, the door remains open to facilitate emergency escape.
- Self-Learning Function: Microcomputer control unit ensures smooth, safe, and reliable operation adapted to individual needs.

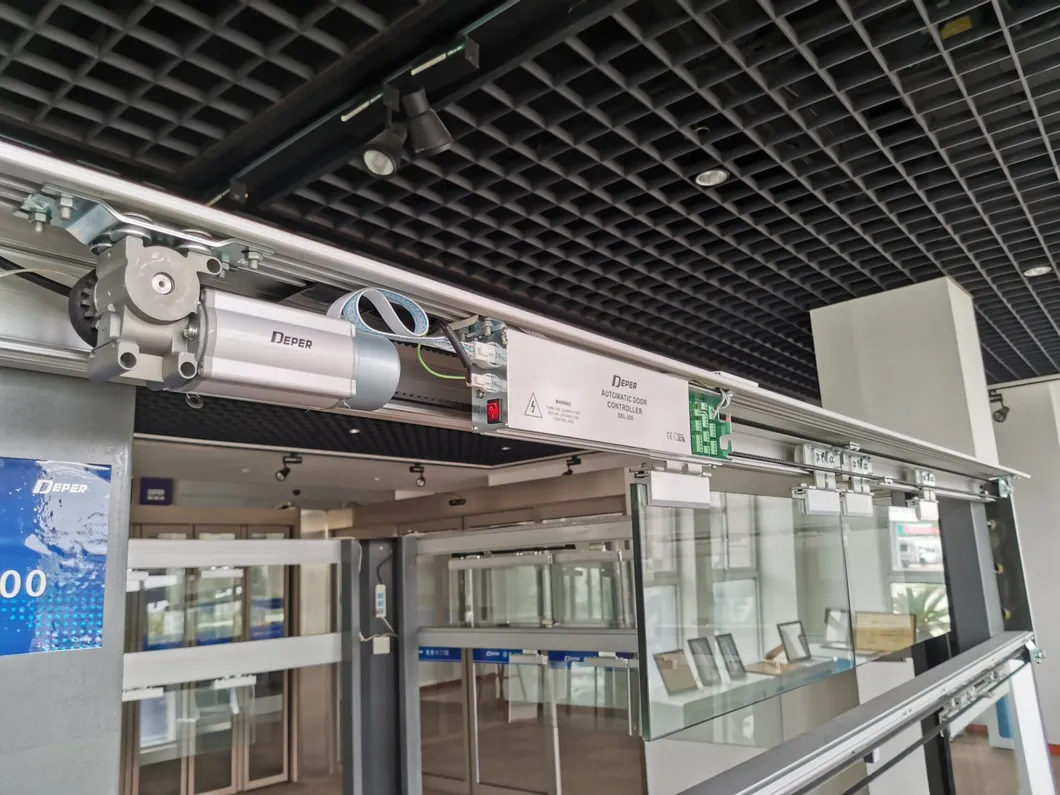

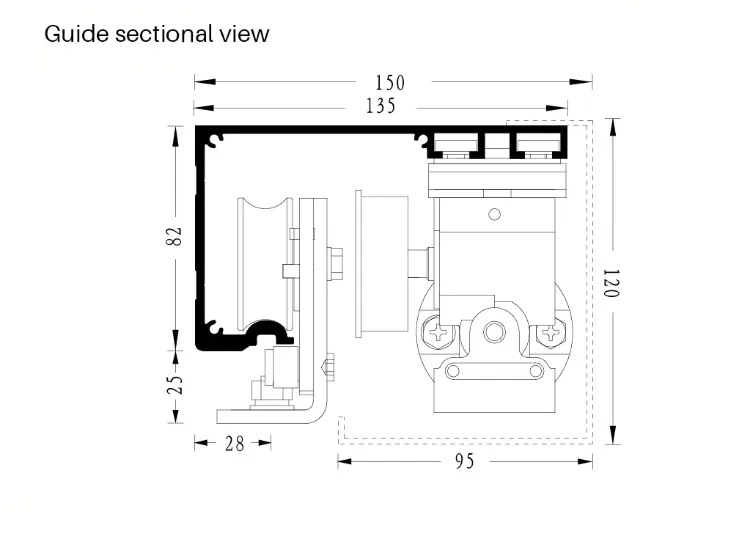

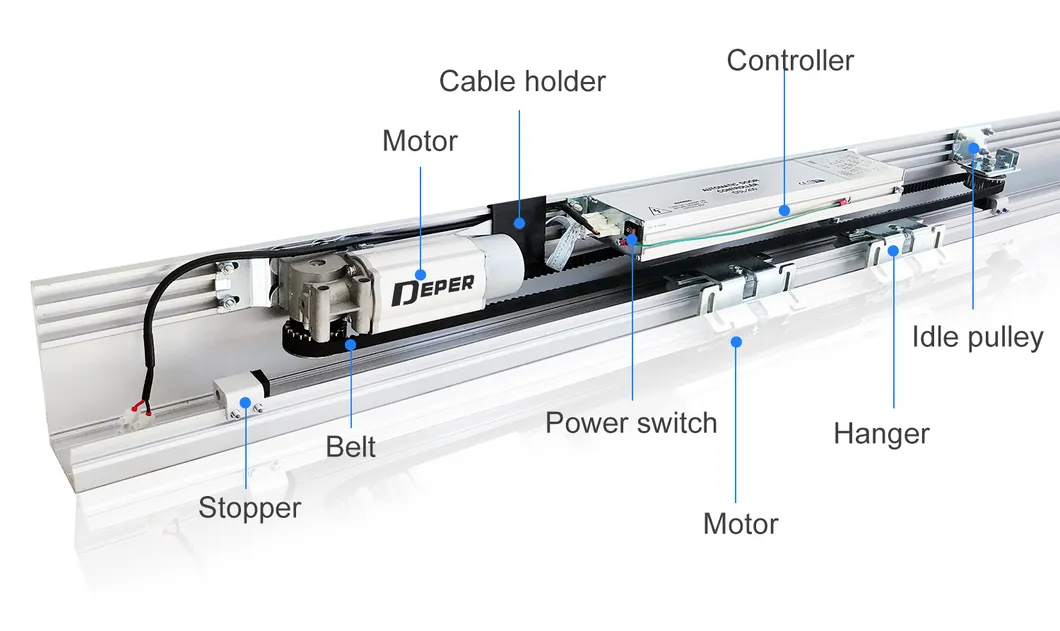

- European Structure: Integrated driving device and control unit installed in the top groove for a quiet, smooth run with larger pulleys.
- Safety First: Safety beam integration prevents closing when obstructed. Emergency stop switch provides immediate halting.

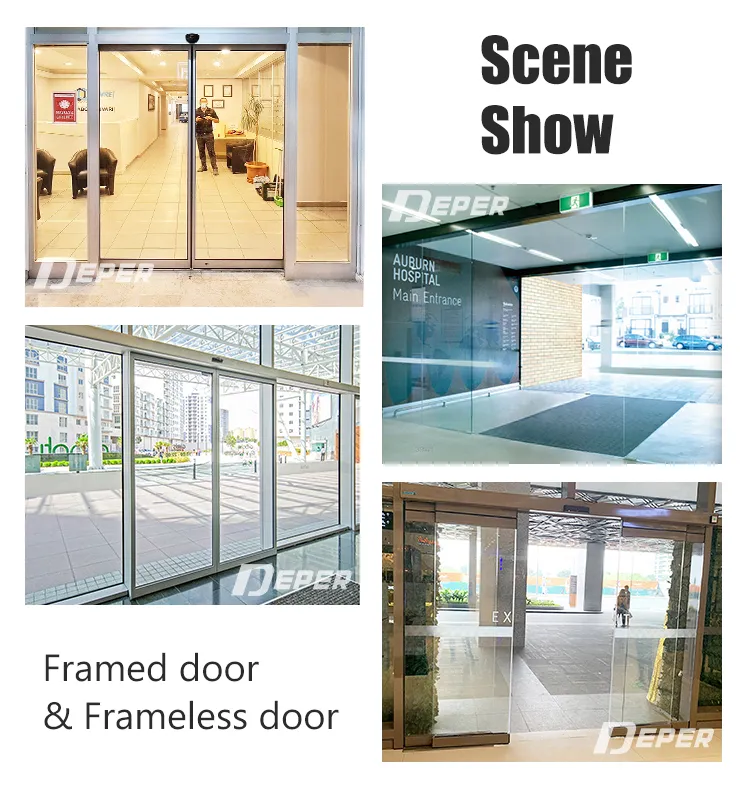

Ideal for office buildings, storefronts, banks, restaurants, hotels, shopping centers, laboratories, and hospitals.
Technical Data
| Technical Specifications | |
|---|---|

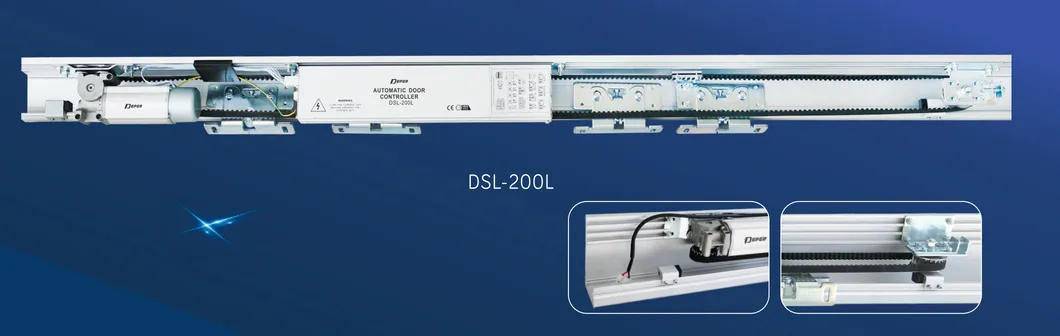

| Product Name | DSL-200L Automatic Sliding Door Operator |
| Door Form | Single Door / Double Door |
| Limited Weight | ≤1×150kg, ≤2×125kg |
| Clean Opening Width | 600-1800mm / 1000-3000mm |
| Power Supply | 220V ± 10%, 50/60Hz |
| Rated Power | 65W |
| Opening/Closing Speed | 200-500mm/S (Adjustable) |
| Hold-open Time | 0-9S (Adjustable) |
| Environment Temperature | -20 ~ +50ºC |
| Standard Rail Size | 4200mm |

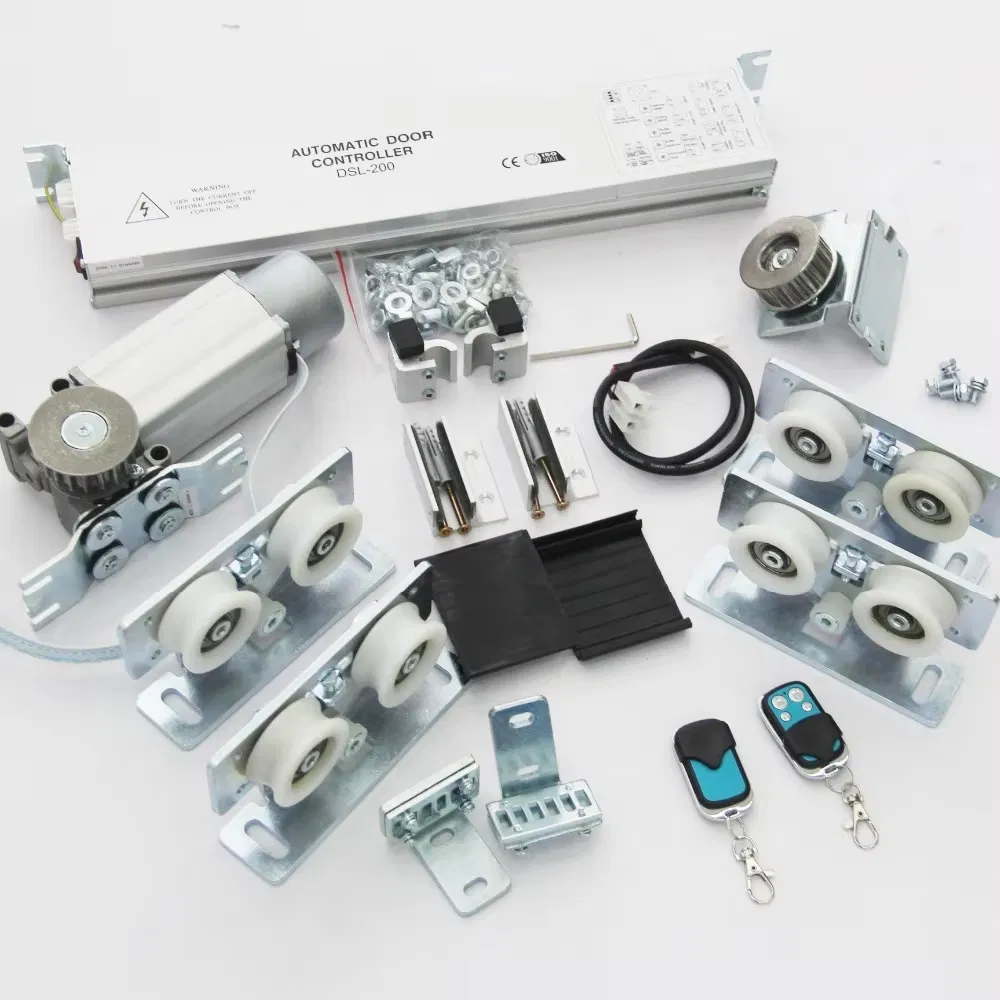

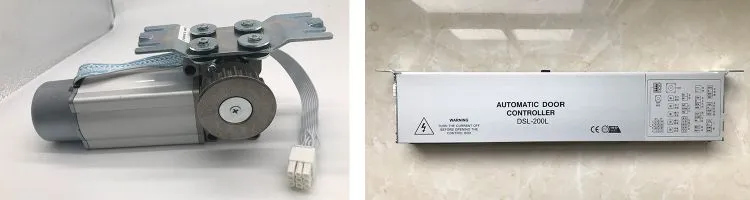

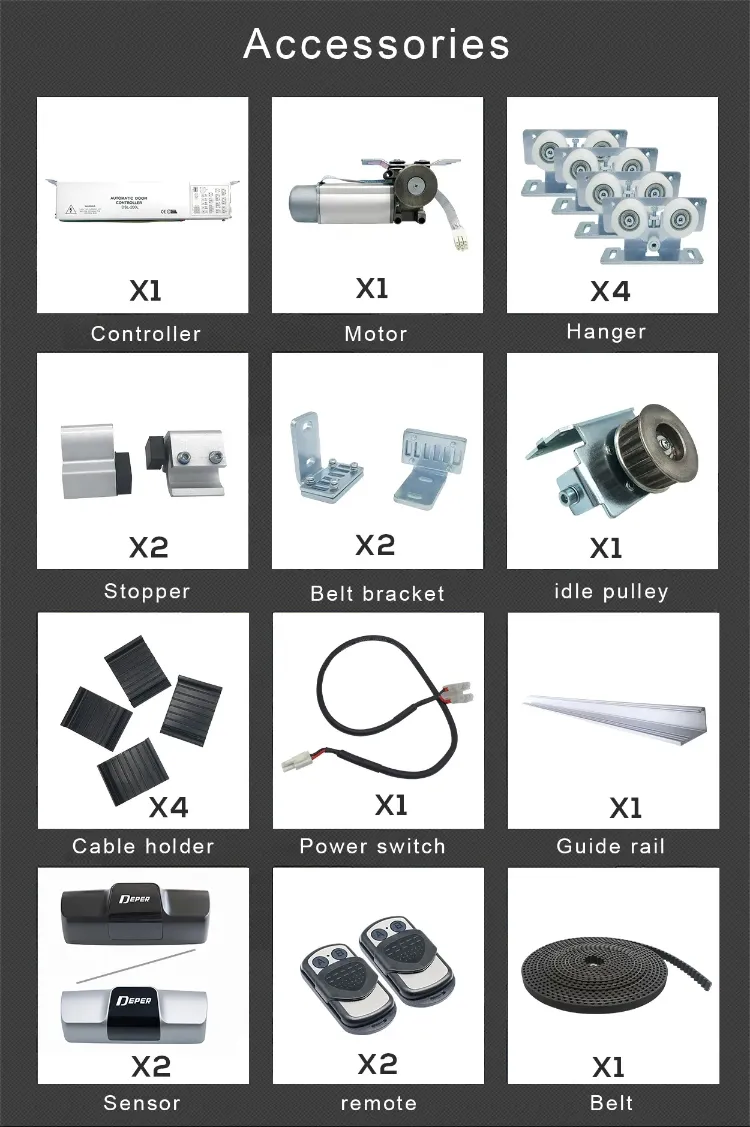

Product Gallery & Components

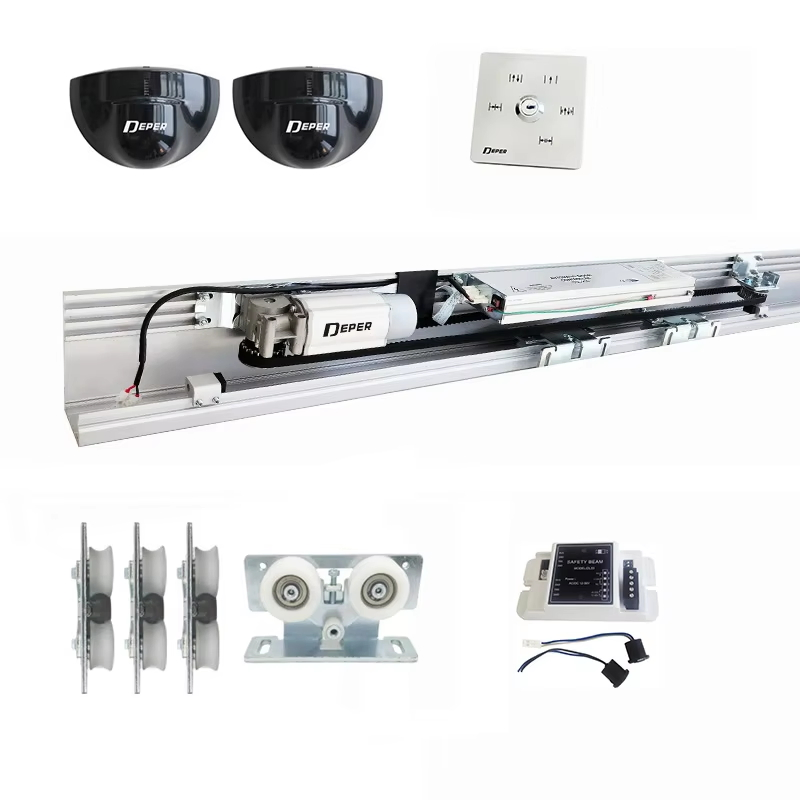

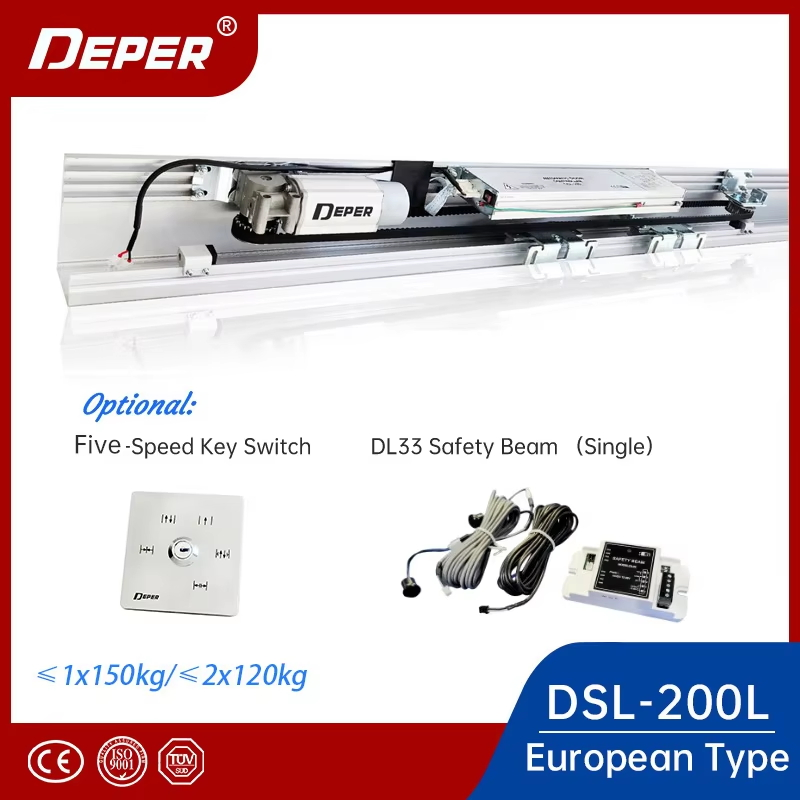

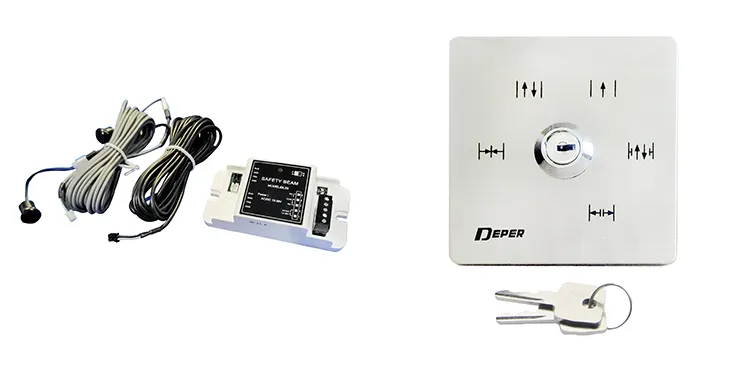

Optional safety beam and five-range key switch available.
Why Choosing Our Products
- 16 years factory outlet experience with reliable quality.
- Passed 1 million cycles of durability testing.
- CE and ISO9001:2015 certified.
- Intelligent design, easy to install and adjust.
- Enhanced security: immediate rebound upon encountering obstacles.
Certifications & Standards
Our products have obtained EU certification, "National High-tech Enterprise" status, and comply with ISO9001:2015, ISO14001, and OHSAS18001 standards.

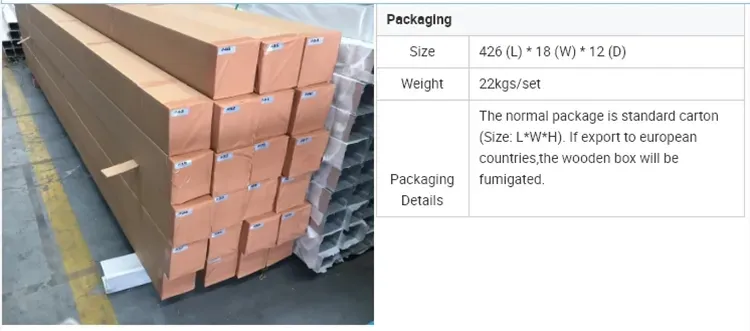

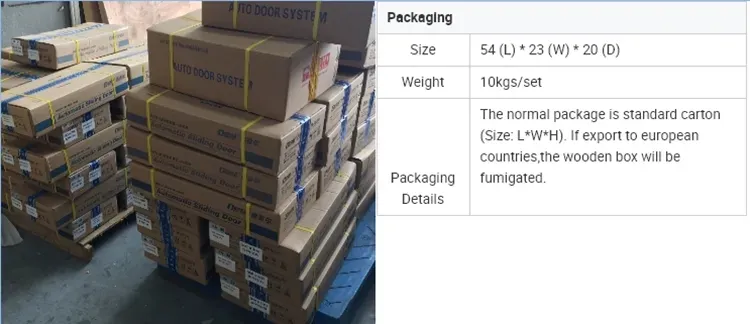

Packing & Delivery
Frequently Asked Questions
Q: Does the DSL200L require an additional electric lock?
No, the DSL200L is designed with an integrated motor lock, which provides security without the need for extra hardware.
Q: What happens to the automatic door during a power failure?
The system is designed to hold the door open during power outages to ensure safe escape routes in emergencies.
Q: Are the opening and closing speeds adjustable?
Yes, both opening and closing speeds can be adjusted between 200-500mm/S to suit specific environment requirements.
Q: What certifications do these automatic door systems hold?
Our products are fully certified with CE (EU market safety), ISO9001:2015 Quality Management, and ISO14001 Environmental Management systems.
Q: What is the maximum door weight the operator can handle?
For single door configurations, it supports up to 150kg. For double door configurations, it supports up to 125kg per leaf.
Q: What kind of packaging is used for international shipping?
We use a robust combination of foam, heavy-duty cartons, and plywood cases to ensure the product arrives safely.
