12V Mini Smart Bluetooth WiFi Tuya APP Remote Access Control Panel 1000 User Online Authorization Controller Door Entry System
Product Description

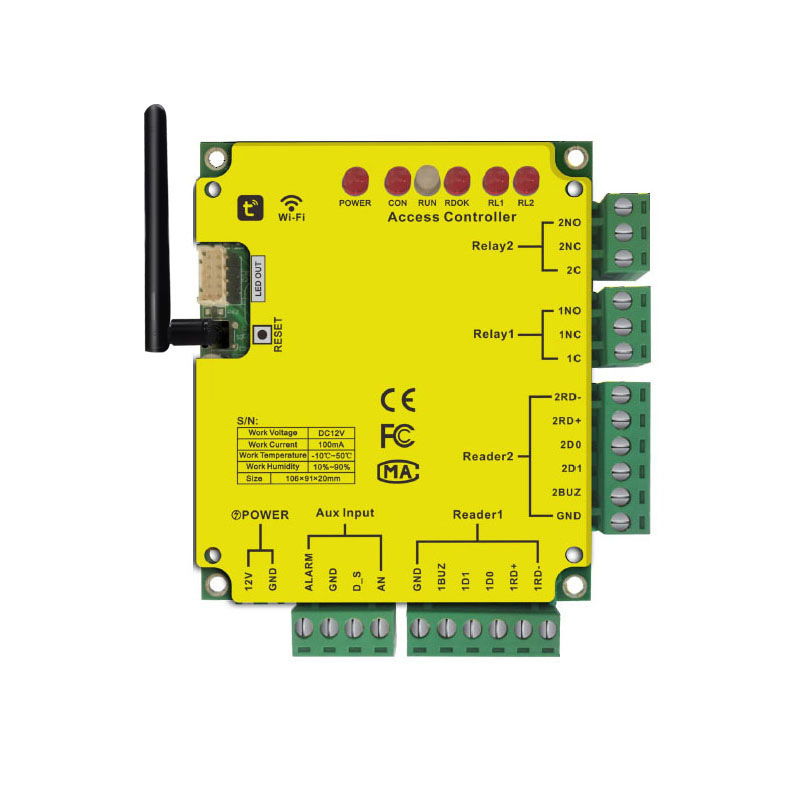

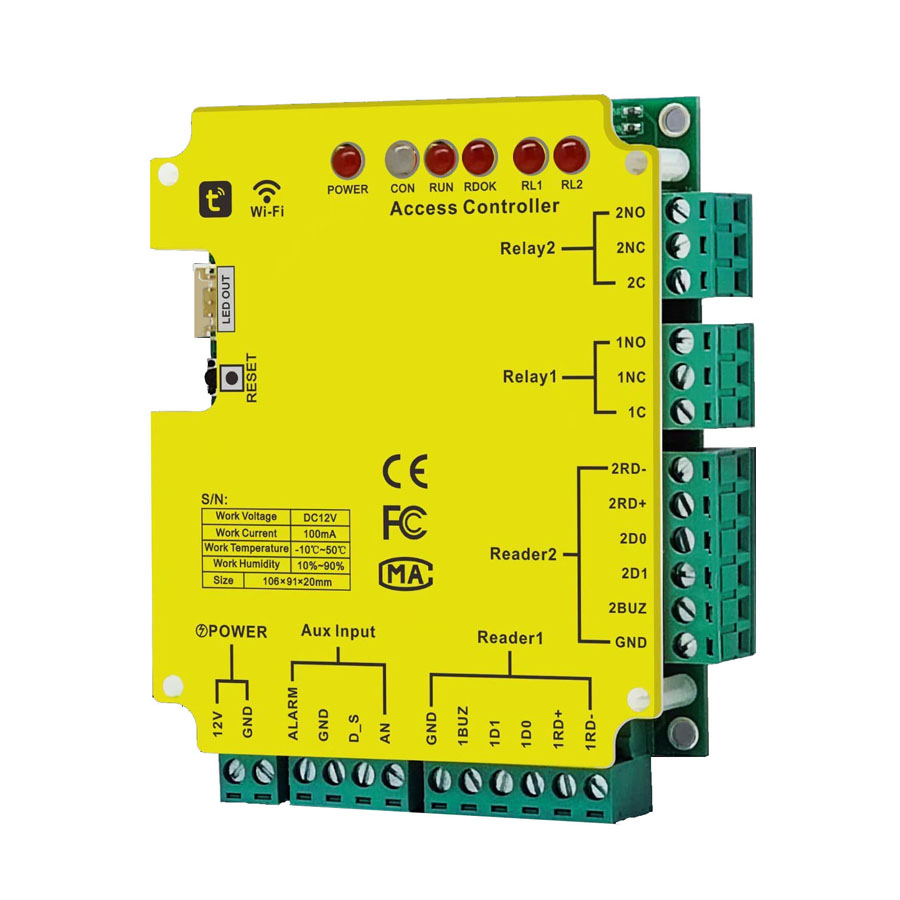

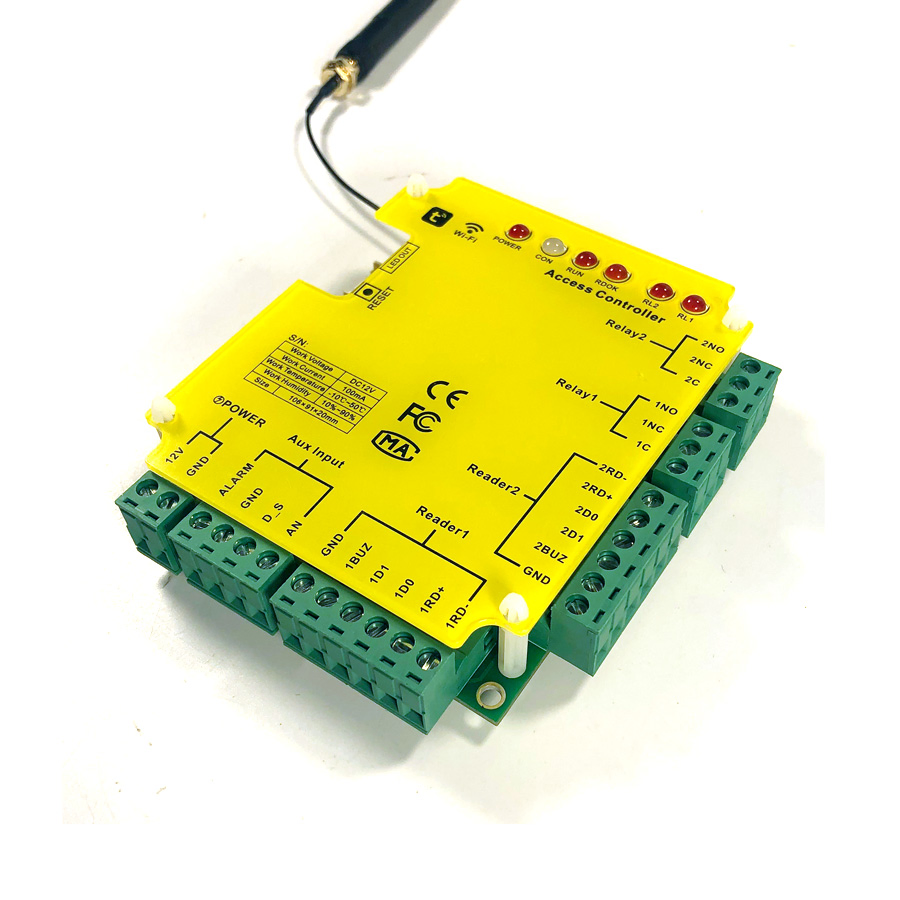

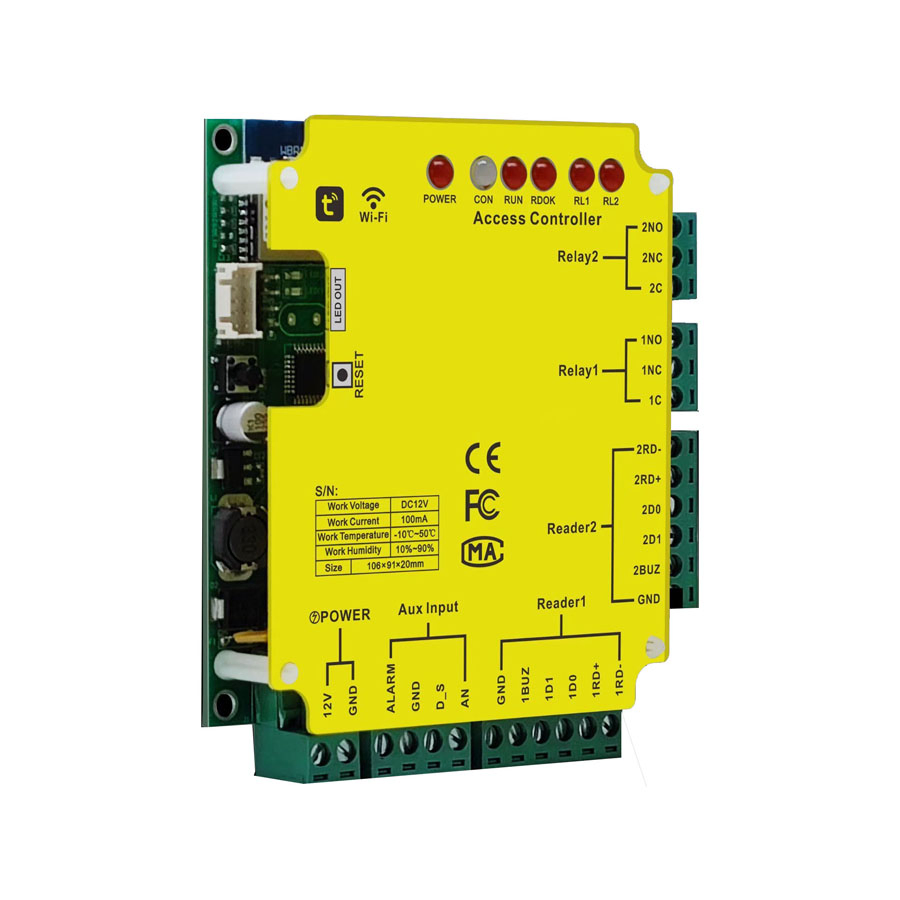

12V Mini Smart Bluetooth WIFI Tuya APP Remote Access Control Panel
The TY-C100 is a sophisticated WIFI and Bluetooth single-door, two-way Wiegand reader input mini access control panel. It integrates seamlessly with the TUYA APP for remote unlocking via smartphone, providing a high level of security that is both convenient and easy to manage.
This access control panel is specifically designed to work with the TUYA ecosystem, offering a robust RFID and Biometric security solution. While it controls one door by default, it offers flexibility for various entry system configurations.
Key Functions
1
Compact size for easy installation in various environments.
2
Dual communication modes: WIFI and Bluetooth (supports Wiegand reader).
3
Supports TUYA APP online authorization, record inquiry, and remote unlock.
4
Advanced control features: Scheduled access, temporary passwords, and automation.
5
Equipped with one Alarm Output and one Sensor Input.
6
High user capacity of 1,000 authorized users.

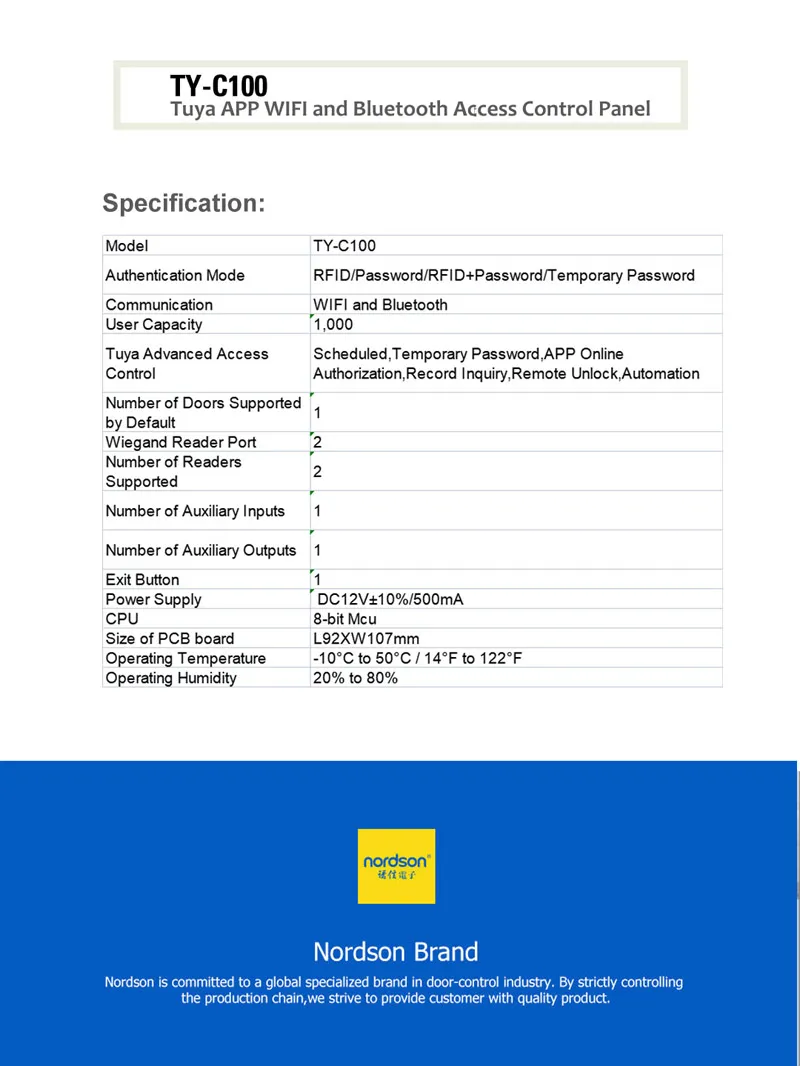

Basic Specifications
| Model NO. | TY-C100 |
| Technology | 32-Bit Technology |
| Communication Mode | Bluetooth, WiFi |
| Authentication Mode | RFID / Password / RFID+Password / Temporary Password |
| User Capacity | 1,000 |
| Number of Doors Supported | 1 (Default) |
| Wiegand Reader Port | 2 Ports |
| Power Supply | DC12V ± 10% / 500mA |
| CPU | 8-Bit MCU |

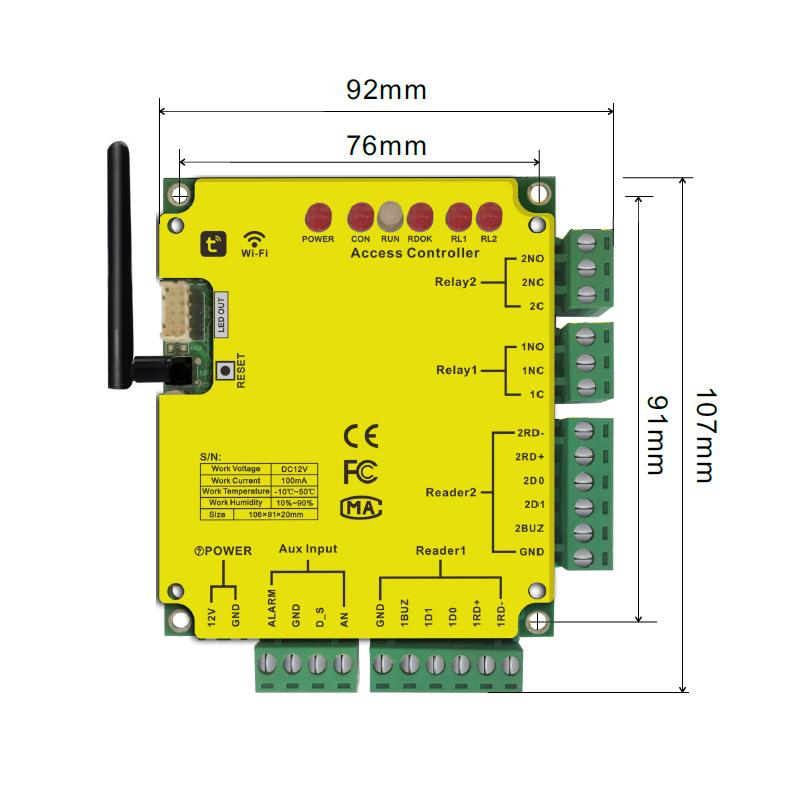

| PCB Board Size | L92 * W107 mm |
| Operating Temperature | -10°C to 50°C / 14°F to 122°F |
| Operating Humidity | 20% to 80% |
Packaging & Delivery
| Package Size | 38.00cm * 59.00cm * 45.00cm |
| Gross Weight | 11.000kg |
| Transport Package | Carton |
| Origin | China |
Frequently Asked Questions
Q1: How many users can the TY-C100 access control panel support?
The system supports up to 1,000 users, making it suitable for both residential and small-to-medium business applications.
Q2: What communication methods does this controller use?
It features dual communication capabilities, supporting both WiFi and Bluetooth for flexible connectivity and remote management.
Q3: Can I unlock the door remotely using my smartphone?
Yes, the TY-C100 integrates with the Tuya APP, allowing for remote unlocking, online authorization, and real-time record inquiries.
Q4: What authentication modes are supported?
The controller supports multiple modes including RFID cards, passwords, combined RFID + Password, and Temporary Passwords for guests.
Q5: What are the power requirements for this device?
The device operates on a DC12V ± 10% power supply with a current requirement of 500mA.
Q6: Does it support external readers?
Yes, it includes two Wiegand reader ports, allowing for the connection of up to two external readers for two-way door control.
