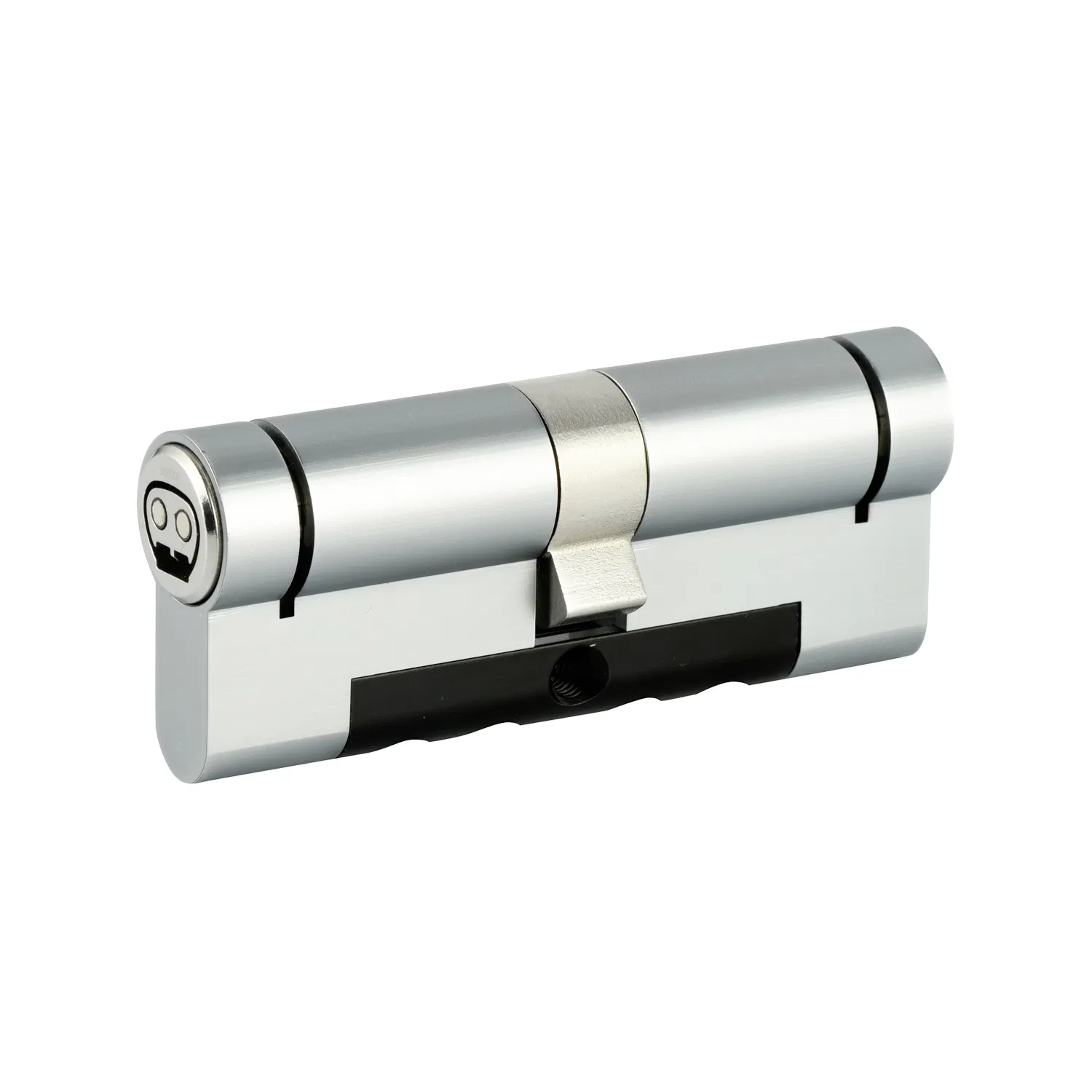

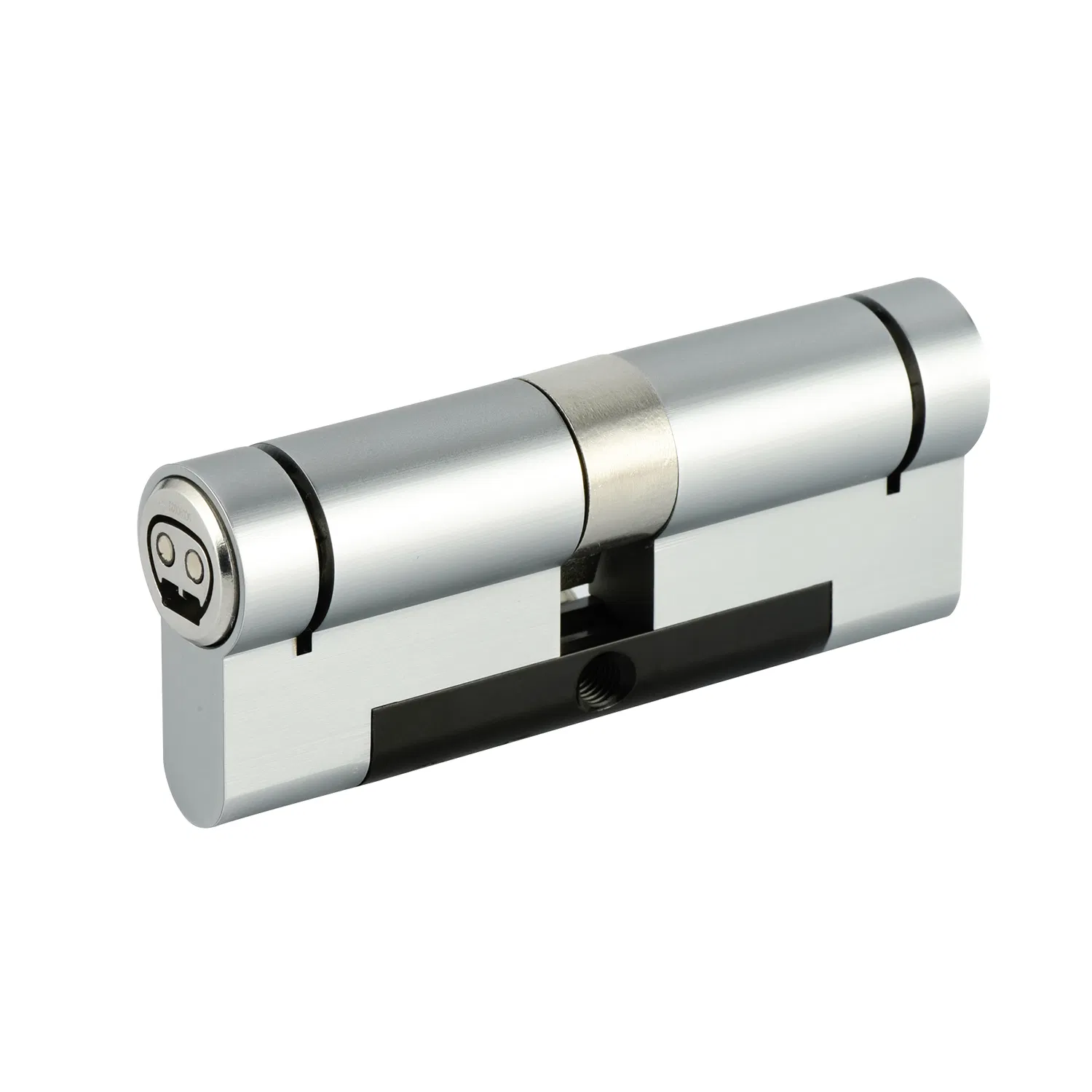

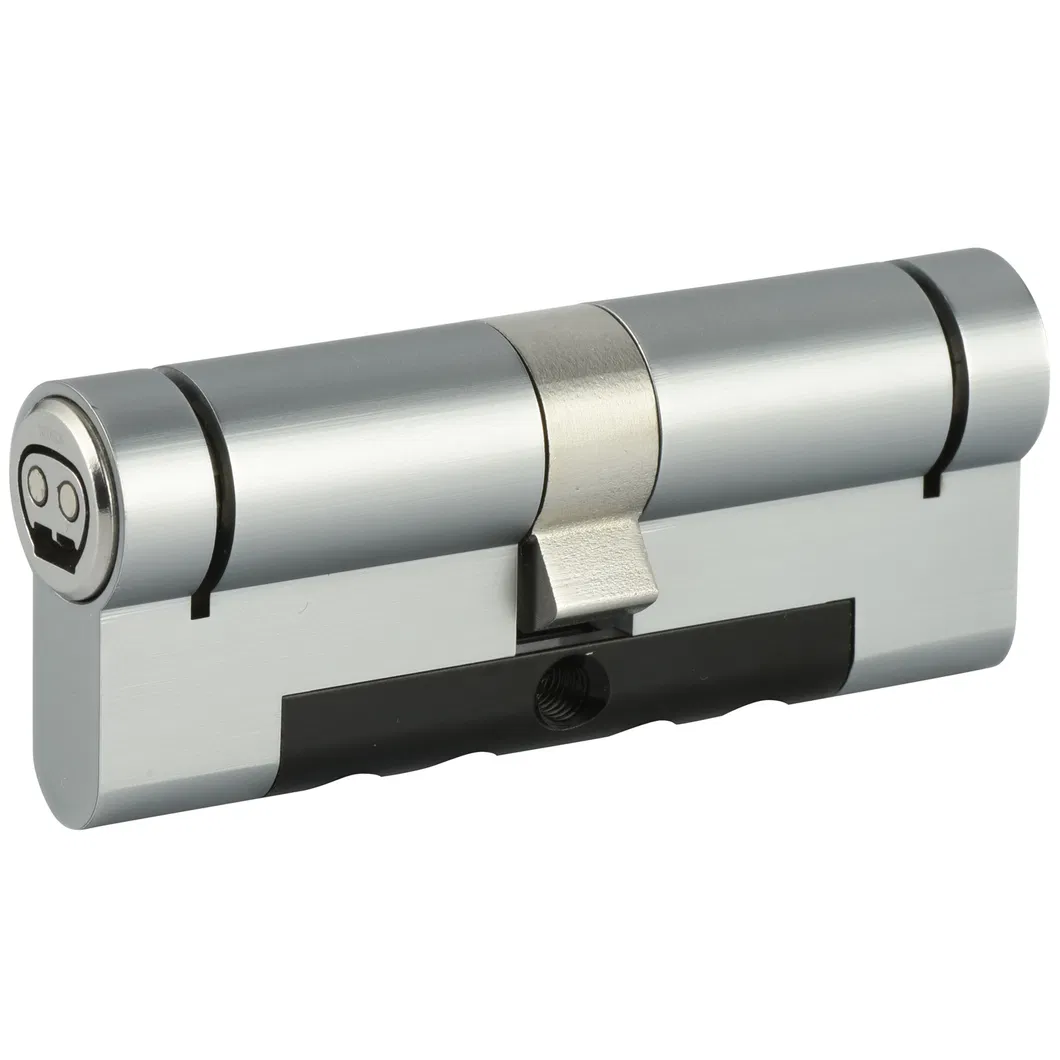

High Security Europrofile Double Cylinder 80mm Smart Lock with Adjustable Cam Smart Door Lock
Product Description
i
Basic Specifications
Model NO.
REIB-B12-001
Application
Supermarket, Campus, Parking, Warehouse, Community, Utilities
Working Principle
Electric Plug
Function
Mechatronic European Profile Half Cylinder
Type
Mechatronic Lock
Material
Brass & Stainless Steel
Protection Class
IP68
Temp Range
-40° to 80°
Data Retention
>10 Years
Power Supply
Smart Key
Certificate
CE, RoHS
HS Code
8301400000
★
Product Description
High Security Europrofile Double Cylinder 80mm Smart Lock with Adjustable Cam
Overview
Adopting the EN1303 standard, this European profile double cylinder can be directly updated by replacing traditional plugs with electronic plugs, enabling intelligent lock management. Compared with traditional mechanical locks, it offers several advanced features:
- No batteries required and maintenance-free.
- Opening permissions can be customized post-installation.
- Keys utilize digital encryption authentication technology (non-copyable).
- Tracking records for easy management and extension.
Key Features
- Strict encryption prevents technical opening, ideal for wireless users.
- Supports multiple management requirements and pattern extensions.
- Efficient methods for handling lost keys.
- Enables one-key management and information traceability.
⚙
Product Performance
| Material | Plug (Hb59-1), Turning Cam (Steel) |
| Surface Treatment | Chrome Plated, Nickel Plated |
| Working Environment | Temperature (-40ºC~+80ºC) Humidity (20%~97%) |
| Working Life | 10 years |
| IP Grade | IP68 |
| Certificate | CE RoHs |
| Note | Work together with Smart Key |
👁
Visual Guides & Solutions
Frequently Asked Questions
Does this smart lock require internal batteries?
No, the lock is maintenance-free and does not require batteries. It receives power directly from the Smart Key during operation.
Is the lock suitable for outdoor use in extreme weather?
Yes, it features an IP68 protection class and can operate in temperatures ranging from -40ºC to +80ºC, making it highly resistant to water and dust.
Can the keys be duplicated by unauthorized parties?
No. The keys use advanced digital encryption authentication technology which prevents them from being copied or opened by technical means.
What happens if a user loses their key?
The system provides various methods to deal with lost keys, including blacklisting the lost key to ensure it can no longer grant access.
How long is the data retention for access records?
The lock supports data retention for over 10 years, ensuring that configuration and event logs remain secure.
Can I upgrade my existing mechanical lock to this system?
Yes, the European profile double cylinder is designed to directly replace traditional mechanical plugs, allowing for an easy intelligent management upgrade.
