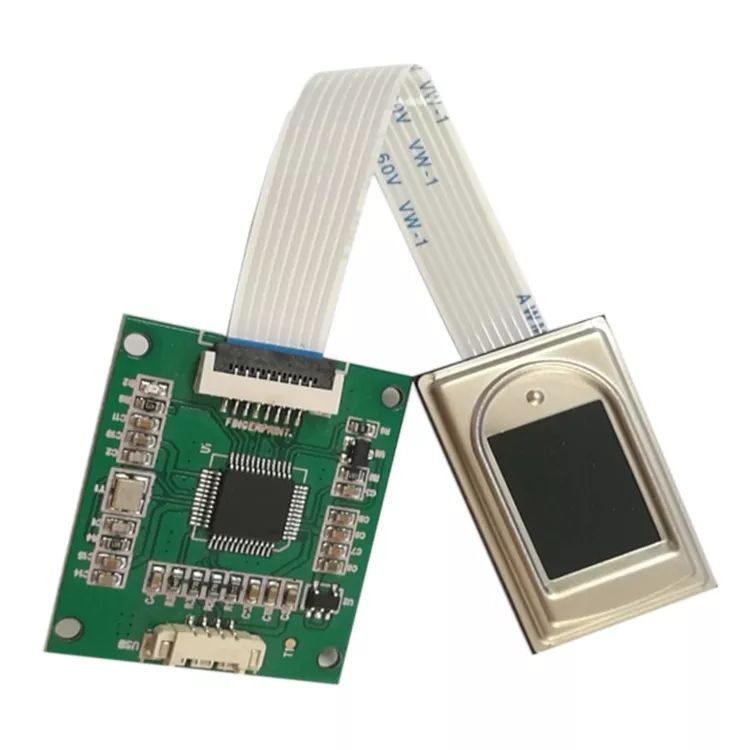

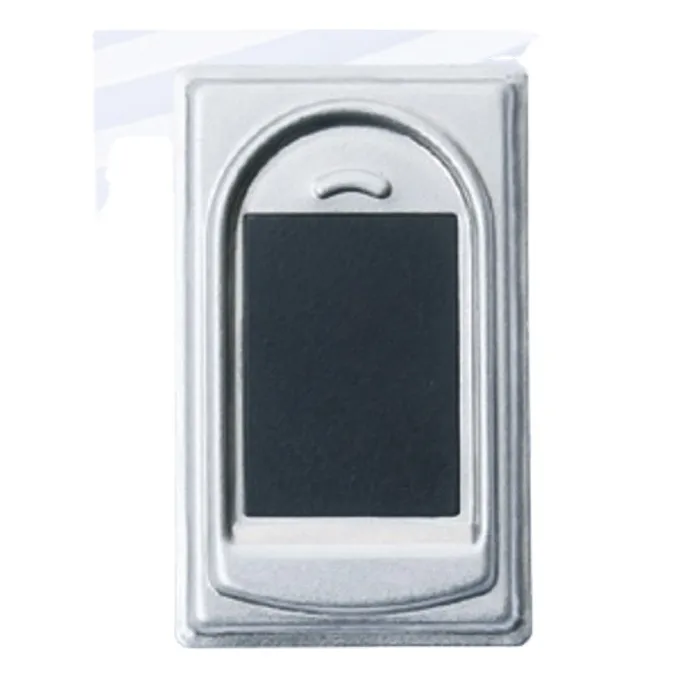

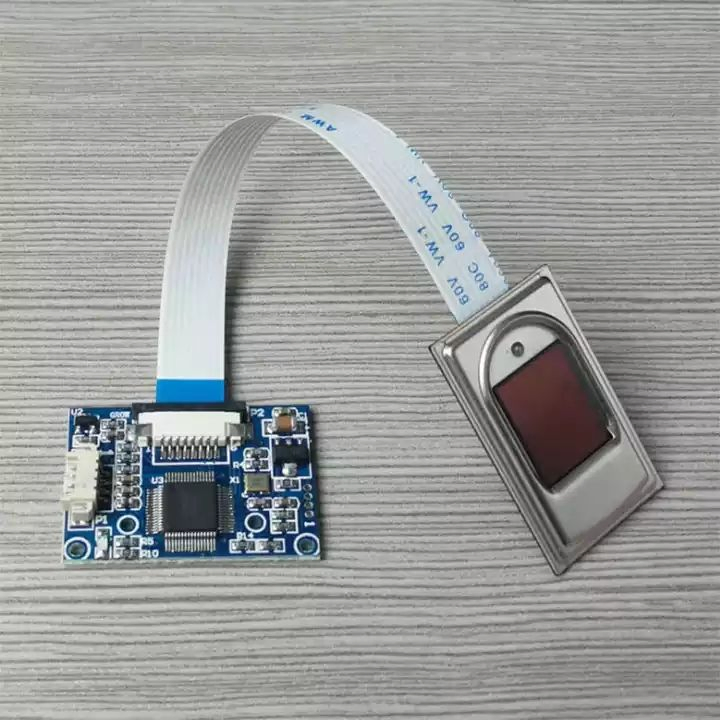

BS880A Capacity Fingerprint Scanner Door Cabinet Lock Smart Module
Product Description
📋 Basic Info.
Model NO.
BS880A
Color
Silver
Screen
Black and White Screen
Communication
RS232
Working Current
<15mA
Window Size
17.1W*12.1H mm
SPI Speed
8m Byte/S
Module Size
33.1*20.3mm
Pixel Array
208*288
Voltage
3V~3.6V
Resolution
508dpi
Gray Level
8 Bits

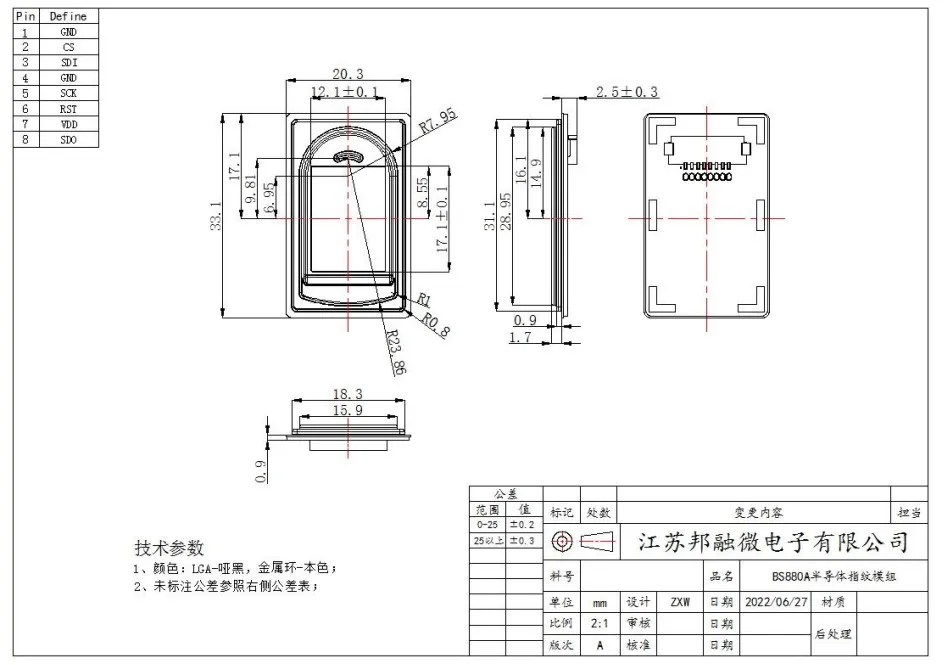

🔍 Products Description
| Pixel array | 208*288 |
| Module Size | 33.1*20.3mm |
| Window Size | 17.1*12.1mm |
| Principle | Active launch |
| Sensor Area | 10.4mm x 14.4mm |
| Gary scale | 8 bits |
| SPI Speed | 8M Byte/s |
| Working Voltage | 3~3.6V |
| Working Current | <15mA |
| Operation Temp | -30 - 70 |
| Relative humidity | 0% - 85% |
| Supported OS | Embedded Android, Linux, WinCE and Windows OS |
📦 More Products
🏭 Company Profile
🛠️ Production Line
✈️ Transportation & Packaging
❓ FAQ
Are you a factory or a trading company?
We are a chip design company (fabless). Our chip packaging, testing, and module OEM are handled in large, world-renowned factories with strict quality assurance.
What makes your fingerprint modules professional?
We are a derivative enterprise of the Institute of Microelectronics of the Chinese Academy of Sciences, featuring high technical support and a large team of highly educated talents with over 100 intellectual property rights and patents.
What are the supported operating systems for the BS880A?
The module supports a wide range of operating systems including Embedded Android, Linux, WinCE, and Windows OS.
How is the price determined?
The price depends on your specific demands regarding shape, size, and quantity. Final quotations are provided upon receiving full descriptions of your requirements.
What is the typical sample lead time?
Sample time is usually 3-10 days after the e-proof is confirmed.
What communication interface does this module use?
The BS880A module primarily uses the RS232 interface and supports SPI high-speed communication up to 8M Byte/s.
