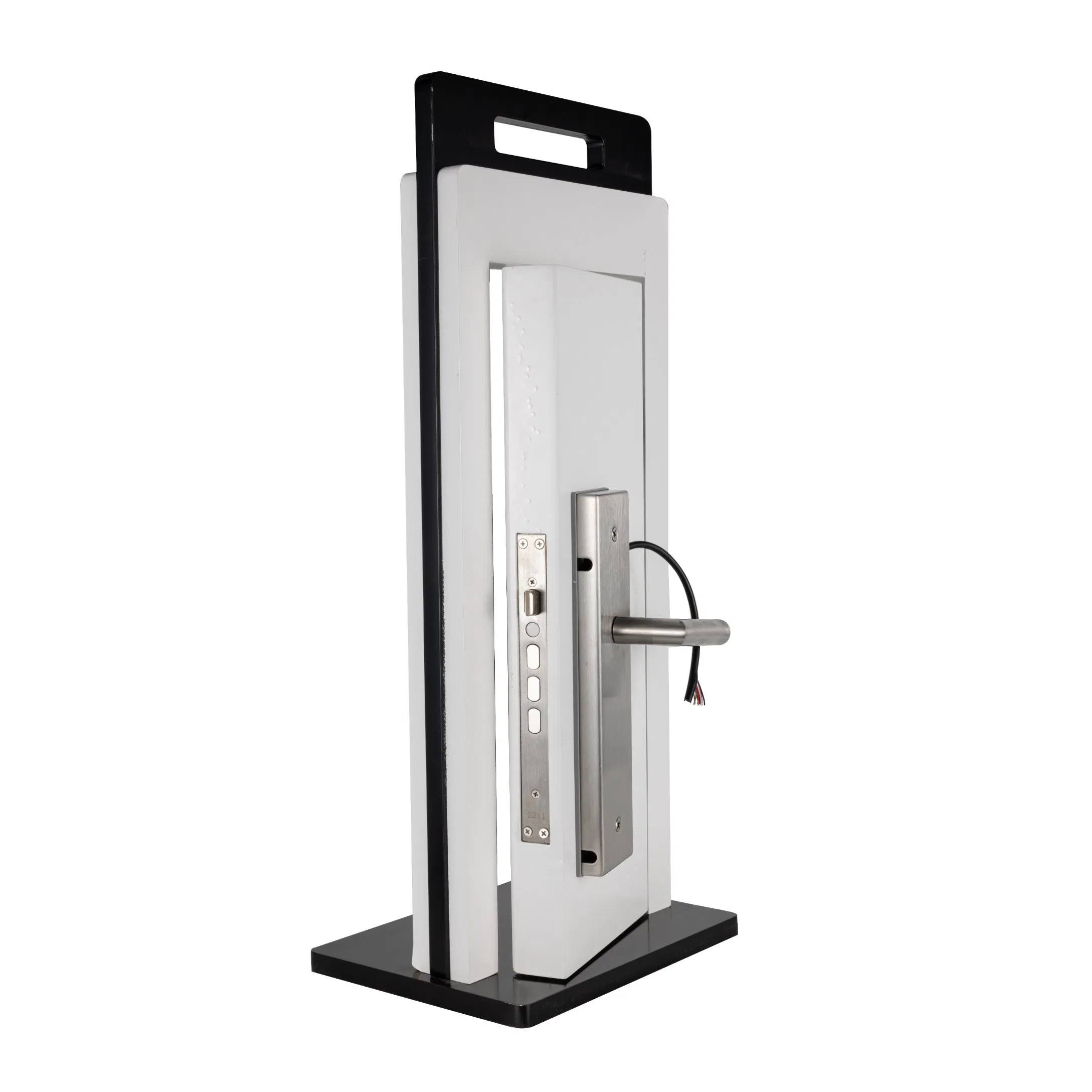

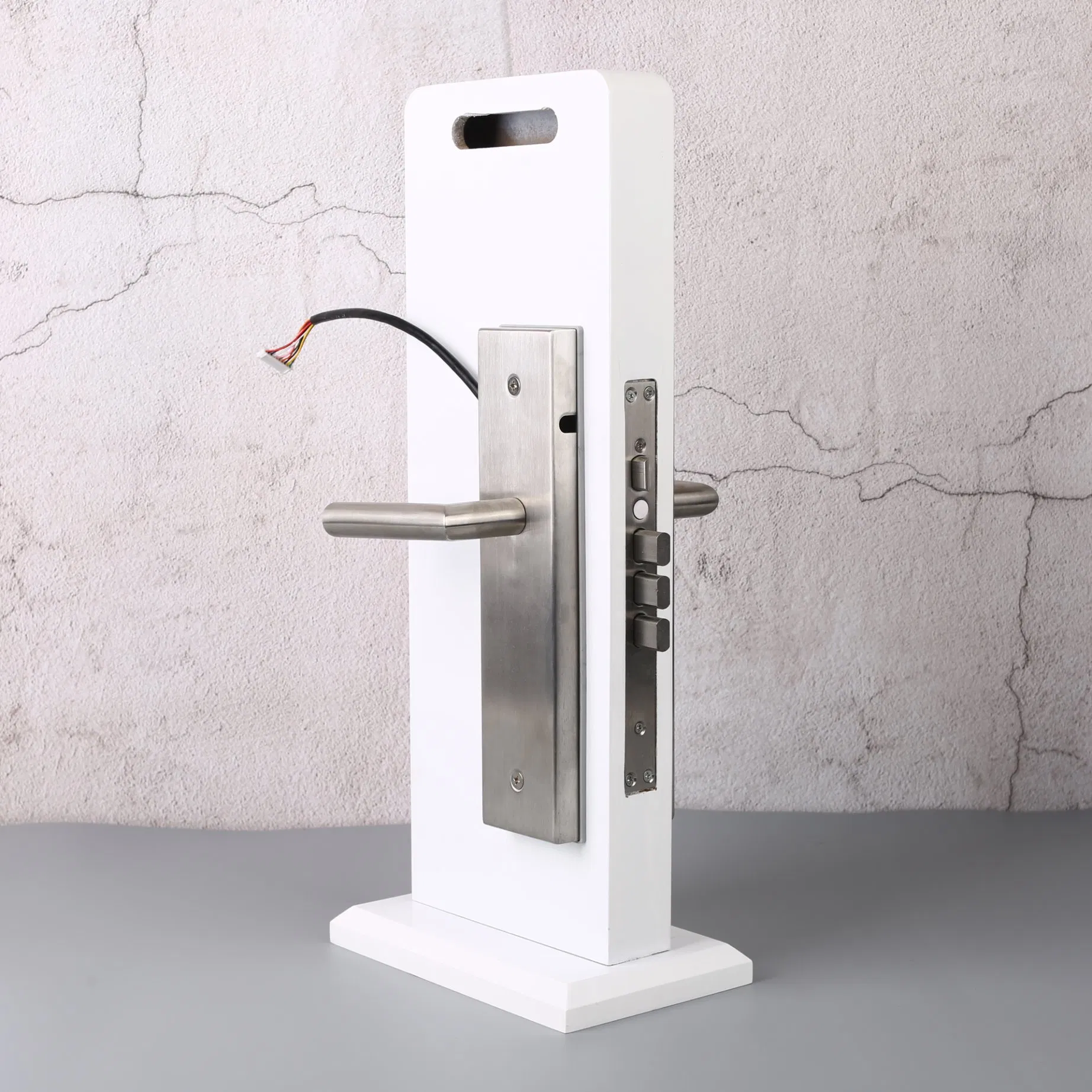

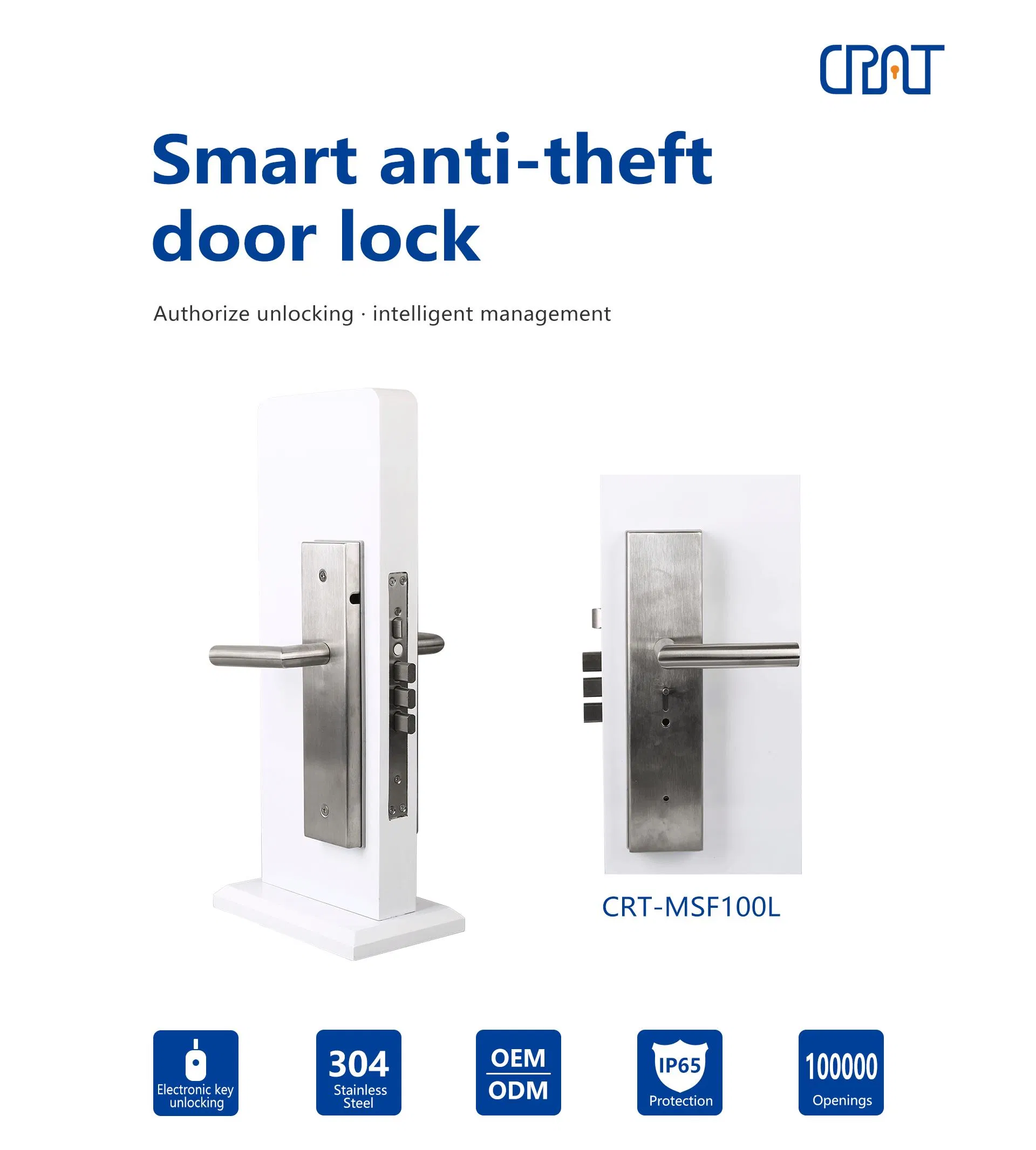

Flexible Authorization Remote Control Real-Time Monitoring Multifunction Smart Door Lock

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Customized
Available
Certification
RoHS, CCC, FCC, CE
Material
304 Stainless Steel
Protection Level
IP65 / IP67
Service Life
100,000 Times
Operating Temp
-40~80 Degrees Celsius
Working Principle
Electronically Controlled Lock
Technology
Encryption Technology
🛡️ Product Overview

Worried about thieves? Always losing keys and having to replace locks?
Troublesome to charge electronic locks? Want to track unlock records?
Our smart passive electronic lock system is the solution.

The Smart Passive Electronic Lock System is composed of passive locks, smart electronic keys, and intelligent lock management software. A single key can open multiple kinds of locks, and every operation is recorded for full traceability.

⚙️ Technical Parameters

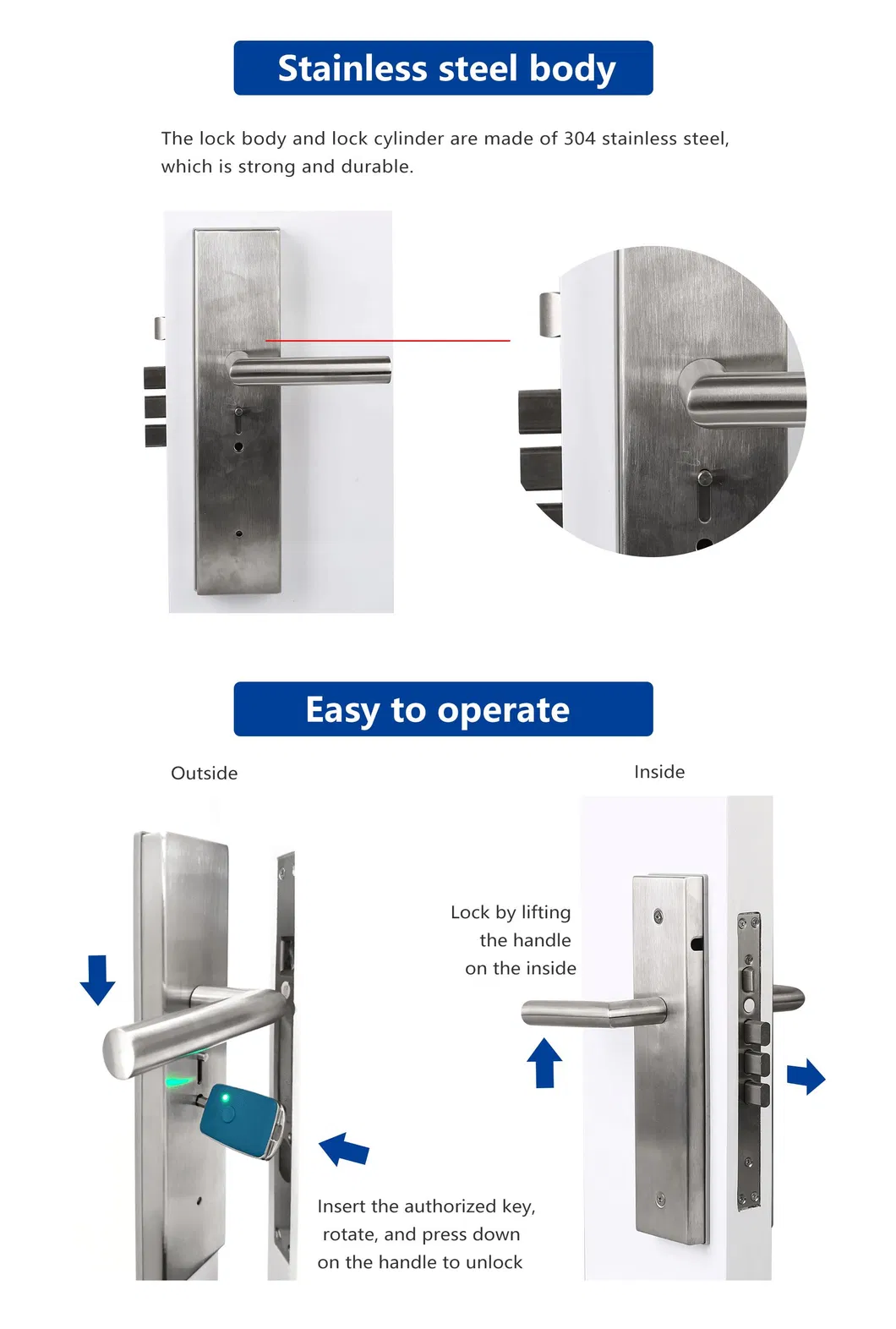

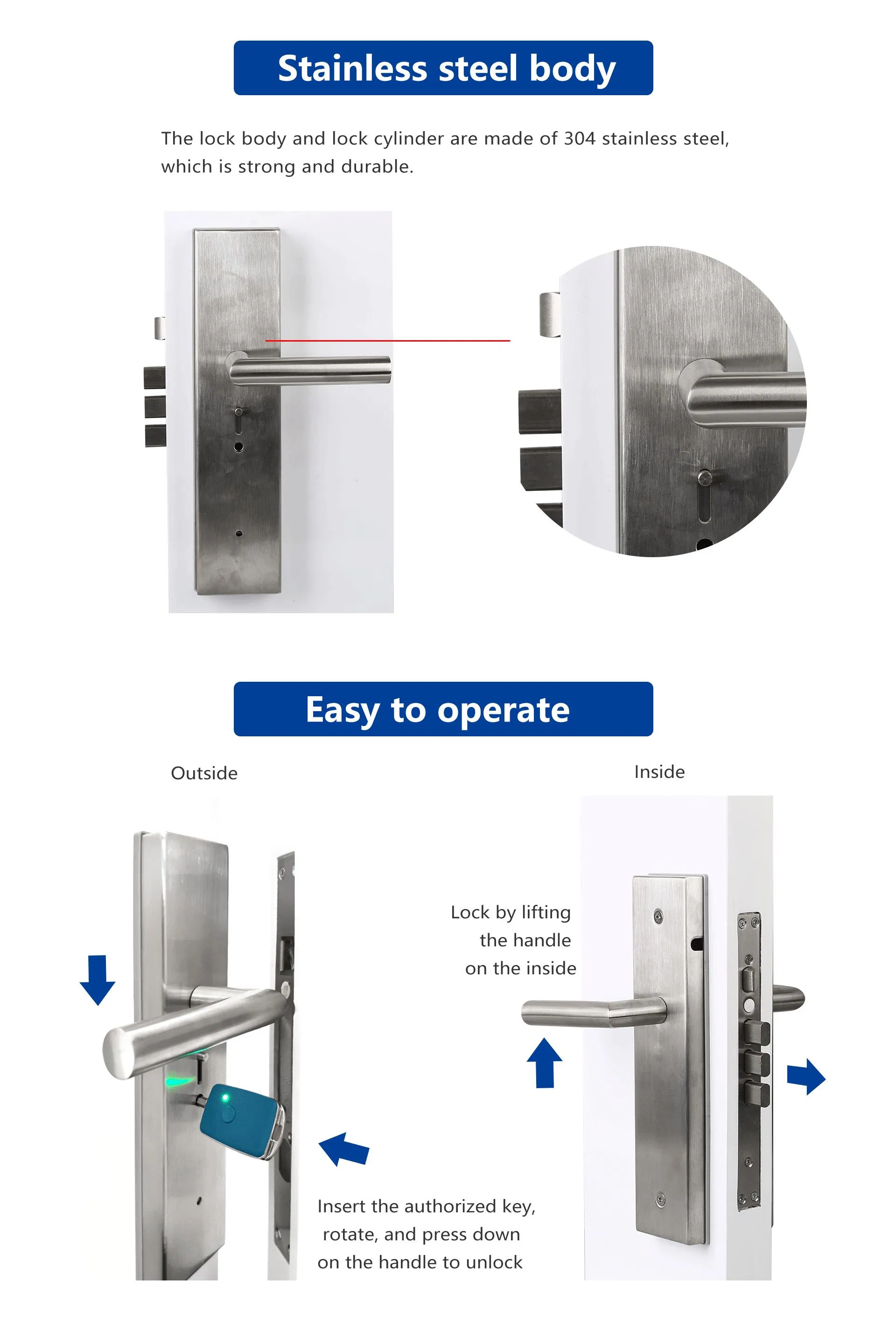

Lock Core/Body Material SUS304 Stainless Steel
Operating Voltage 12VDC
Operating Environment Temperature (-40°C~80°C), Humidity (20%-98%RH)
Unlocking Times ≥100,000
Encoding Digits 128 (No mutual opening rate)
Cylinder Technology 360° Idle design to prevent violent opening
Encryption Digital encoding & encrypted communication technology
📊 Key Model Comparison
Feature Standard Model Advanced (4G/NB)
Battery Capacity 500mAh
Unlock Times (Per Charge) 1000 times
Unlock Records 100,000 pieces
Fingerprint Identification ×
Visual Screen ×
Remote Authorization ×
Bluetooth / Data Transfer

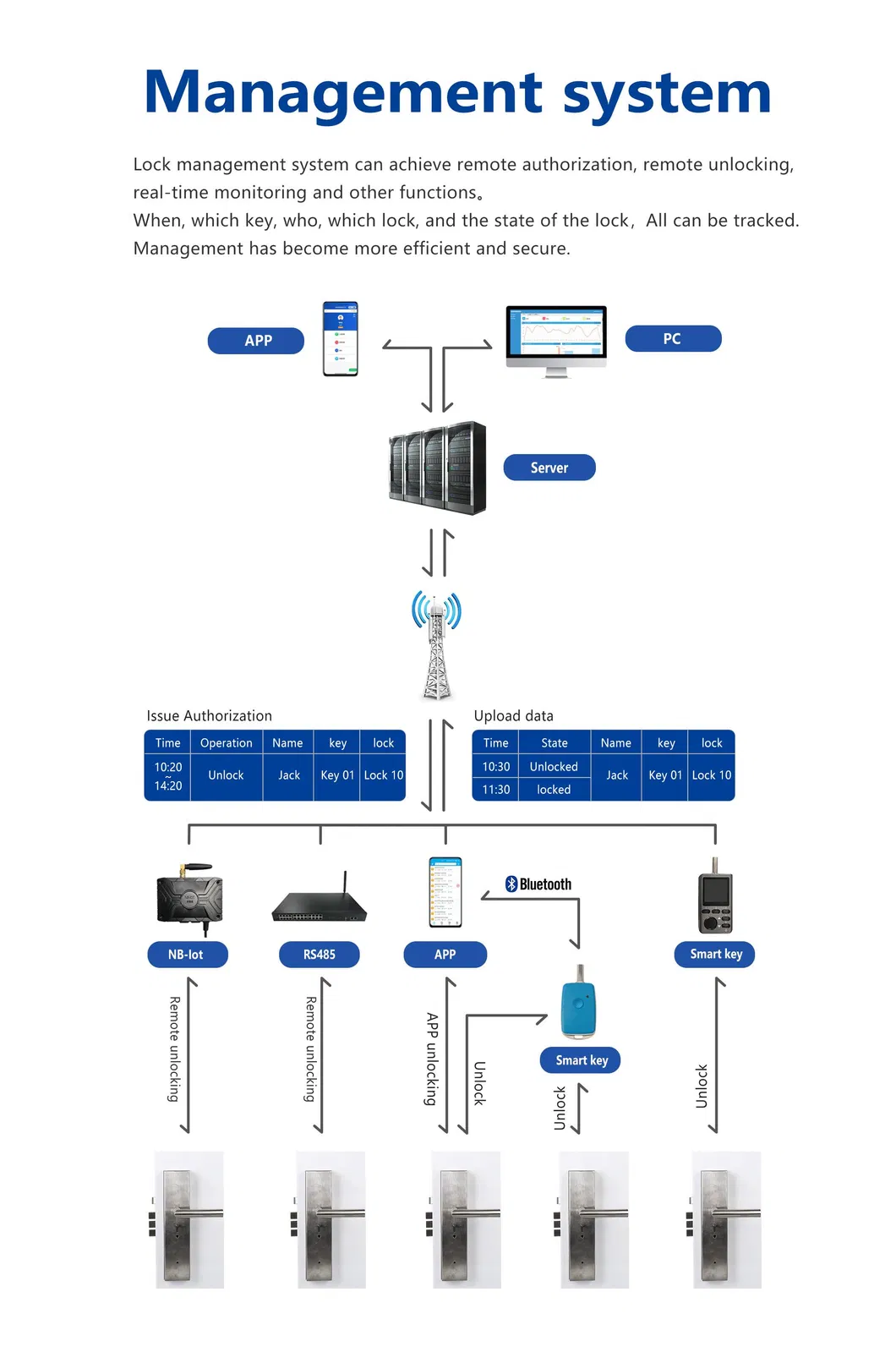

📱 Software & Management
  • Lost keys can be swiftly disabled via the system.

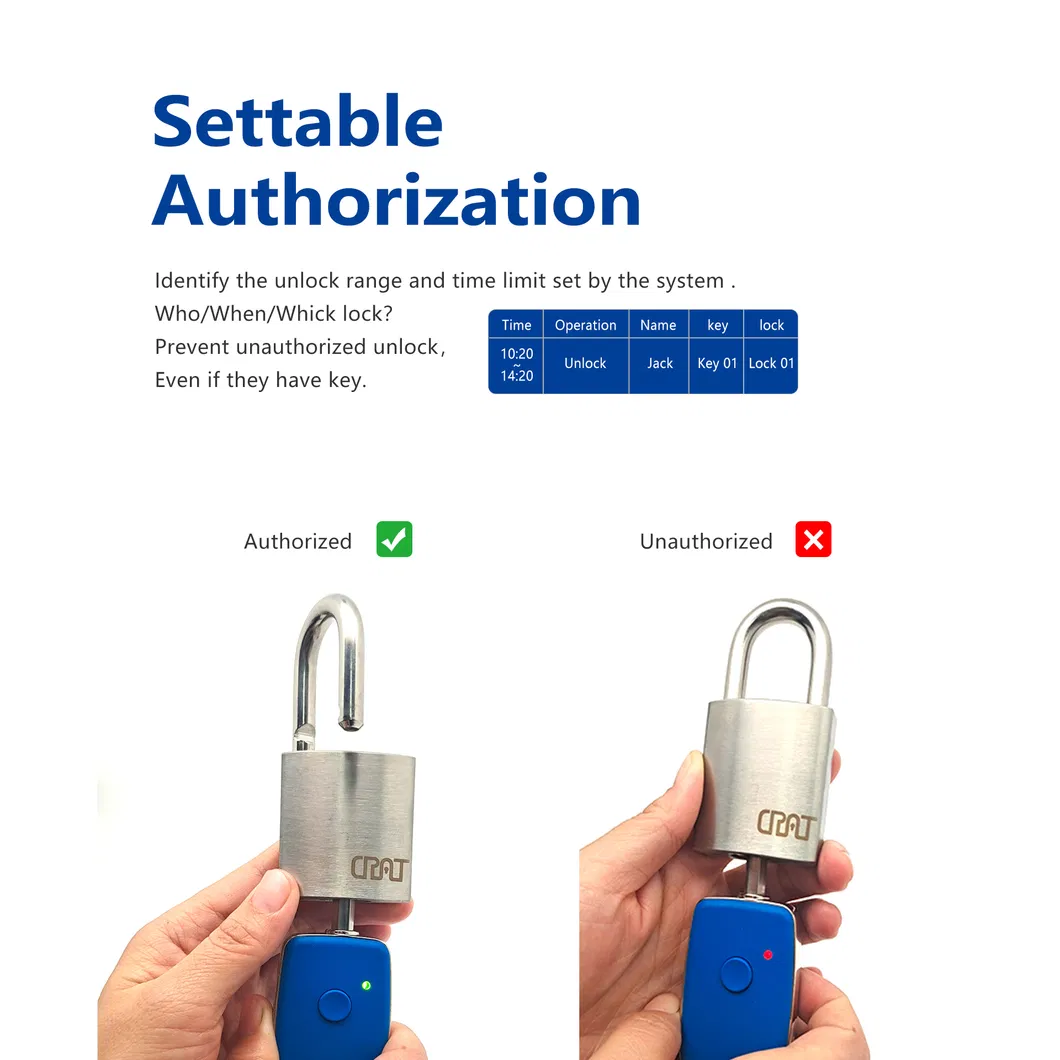

  • Authorization management for departments or individuals.
  • Visual map integration for clear lock tracking.
  • Customized software services available based on needs.
🏢 Industry Applications

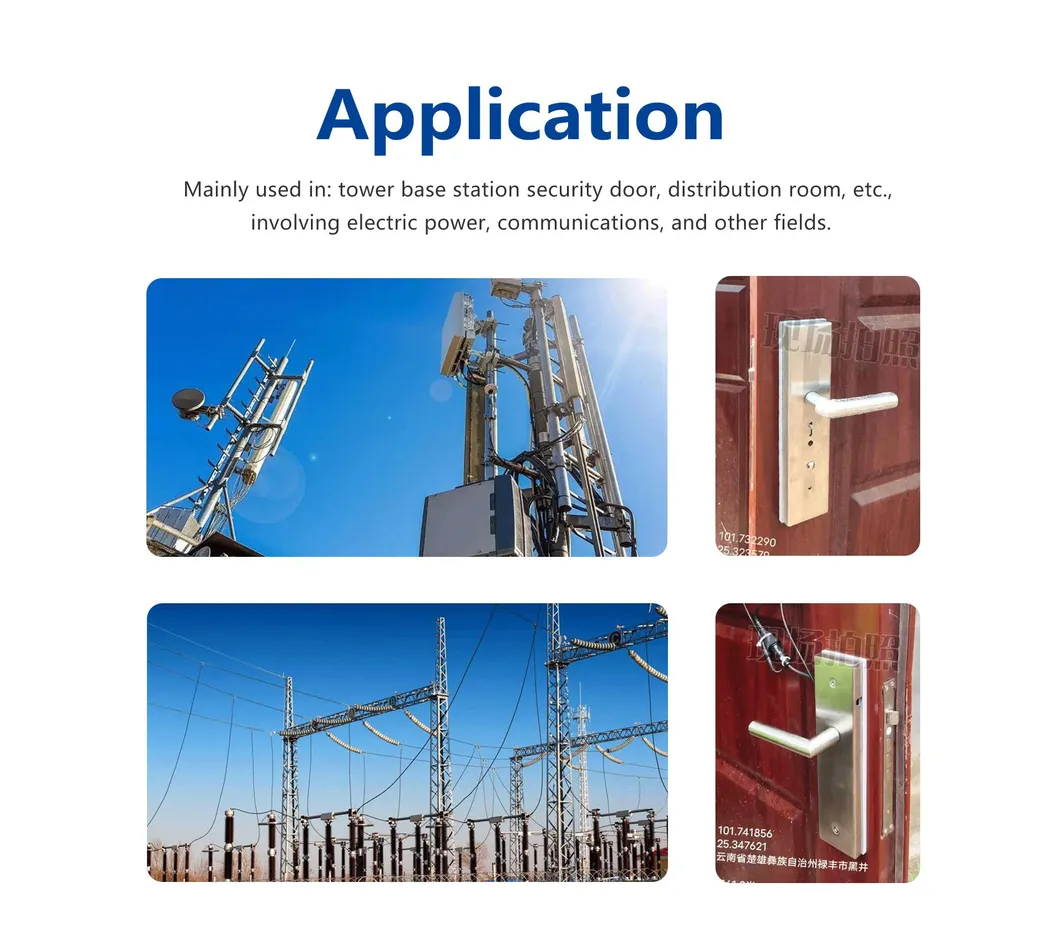

Widely used in communication machine rooms, outdoor control cabinets, optical cable transfer boxes, and base stations.

Main Product Range: Passive smart locks, Electronic wireless intelligent locks, Communication base-station locks, Passive padlocks, Bluetooth padlocks, NB Intelligent optical box locks, and Intelligent manhole cover locks.

Frequently Asked Questions
What is the Minimum Order Quantity (MOQ)?
The MOQ is one unit. For customized sizes or logos, the MOQ is 300 units.
Is the management software free to use?
Yes, we provide a free standalone version of the lock software. We also offer a web-based version which is a paid service.
What types of smart locks do you offer?
Our system includes anti-theft smart locks, smart lock cylinders, manhole cover locks, padlocks, and cabinet locks. We can customize solutions based on your specific demands.
Are you a manufacturer?
Yes, we have about ten years of manufacturing experience specializing in smart electronic lock systems.
Do you have technical research and development capabilities?
Yes, we have a professional R&D team consisting of approximately fifteen engineers and invest significantly in annual sales revenue into R&D.
Can the locks be used in outdoor environments?
Absolutely. Our locks are designed with IP65/IP67 protection levels, making them waterproof and dustproof, suitable for temperatures ranging from -40°C to 80°C.
